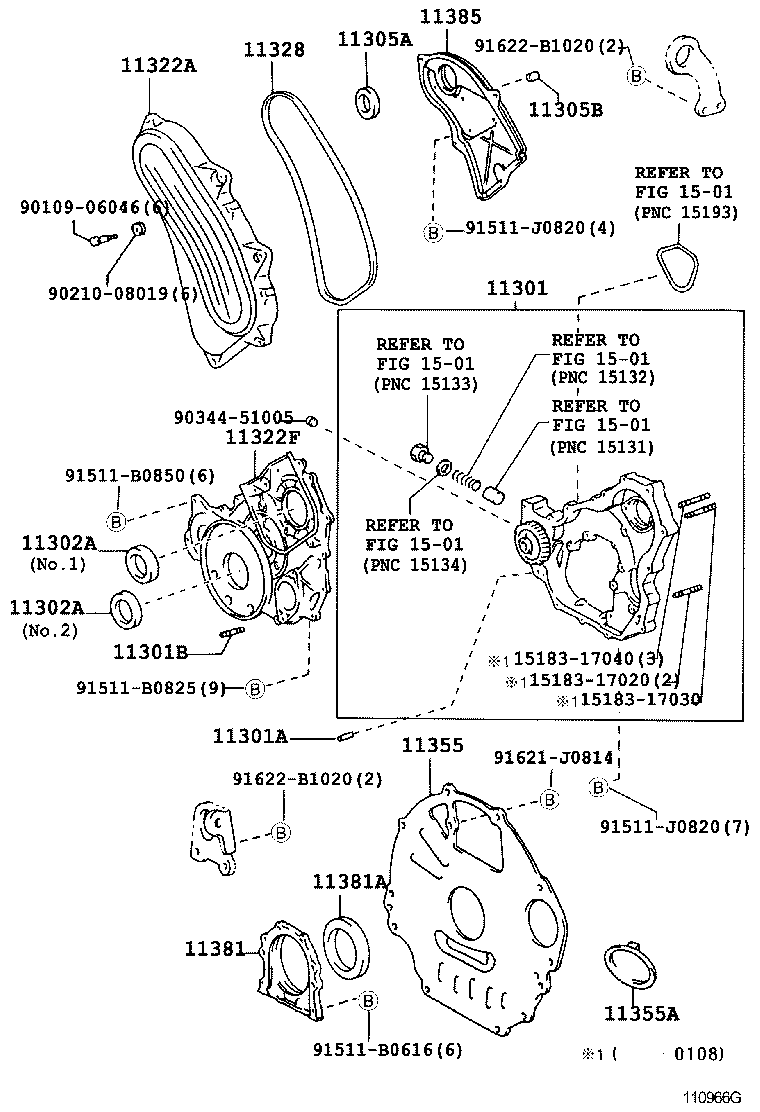

Toyota Coaster HDB51 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11301-17020	1H#..HDB5#,HZB4#,5#	01/1993 - 08/1994	1
11301-17040	1HDFTE..HDB5#	07/1999 - 08/2001	1
11301-17041	1HDFTE..HDB5#	08/2001 - 08/2004	1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08054	1H#..HDB5#,HZB4#,5# 長さ=23,外径=8	07/1999 - 08/2004	1
90250-08054	1HD#,1HZ..HDB5#,HZB4#,5# 長さ=23,外径=8	01/1993 - 07/1999	1
11301B - BOLT,STUD(FOR TIMING GEAR CASE)
90116-10160	1HD#,1HZ..HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90116-10160	1H#..HDB5#,HZB4#,5#	07/1999 - 08/2004	2
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58007	1HD#,1HZ..HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
90311-58007	1H#..HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
90311-58006	1HD#,1HZ..HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
90311-65003	1HDFTE..HDB5# NO.1	07/1999 - 08/2004	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-58007	1HD#,1HZ..HDB5#,HZB4#,5# NO.2	01/1993 - 07/1999	1
90311-58007	1H#..HDB5#,HZB4#,5# NO.2	07/1999 - 08/2004	1
90311-58006	1HD#,1HZ..HDB5#,HZB4#,5# NO.1	01/1993 - 07/1999	1
90311-65003	1HDFTE..HDB5# NO.1	07/1999 - 08/2004	1
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32017	1HD#,1HZ..HDB5#,HZB4#,5#	01/1993 - 07/1998	1
90311-32019	1H#..HDB5#,HZB4#,5#	07/1999 - 08/2004	1
11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2)
90253-11021	1HD#,1HZ..HDB5#,HZB4#,5#	01/1993 - 07/1999	2
90253-11021	1H#..HDB5#,HZB4#,5#	07/1999 - 08/2004	2
11322A - COVER, TIMING BELT, NO.1
11321-17060	1HDFTE..HDB5#	07/1999 - 08/2004	1
11322F - COVER, TIMING GEAR, NO.2
11322-17010	1H#..HDB5#,HZB4#,5#	01/1993 - 11/1994	1
11322-17040	1HDFTE..HDB5#	07/1999 - 08/2004	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-17040	1HDFTE..HDB5#	07/1999 - 08/2004	1
11355 - PLATE, REAR END
11355-17011	1H#..HDB5#,HZB4#,5#..MTM	07/1999 - 08/2004	1
11355-17010	1HD#,1HZ..HDB5#,HZB4#,5#..MTM	01/1993 - 10/1997	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-17010	1H#..HDB5#,HZB4#,5#	07/1999 - 08/2004	1
11381-17010	1HD#,1HZ..HDB5#,HZB4#,5#	01/1993 - 07/1999	1
11381A - SEAL, ENGINE REAR OIL
90311-95008	1HD#,1HZ..HDB5#,HZB4#,5#	01/1993 - 07/1999	1
90311-95008	1H#..HDB5#,HZB4#,5#	07/1999 - 08/2004	1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-17040	1HDFTE..HDB5#	07/1999 - 08/2004	1
Common parts
15183-17020
15183-17030
15183-17040
90109-06046
90210-08019
90344-51005
91511-B0616
91511-B0825
91511-B0850
91511-J0820
91621-J0814
91622-B1020
Linked diagrams
1501

HDB51-ZCFZZ (1999)

(9907-0408)1HDFTE
