HDB51-ZCFZZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9907-0408)1HDFTE

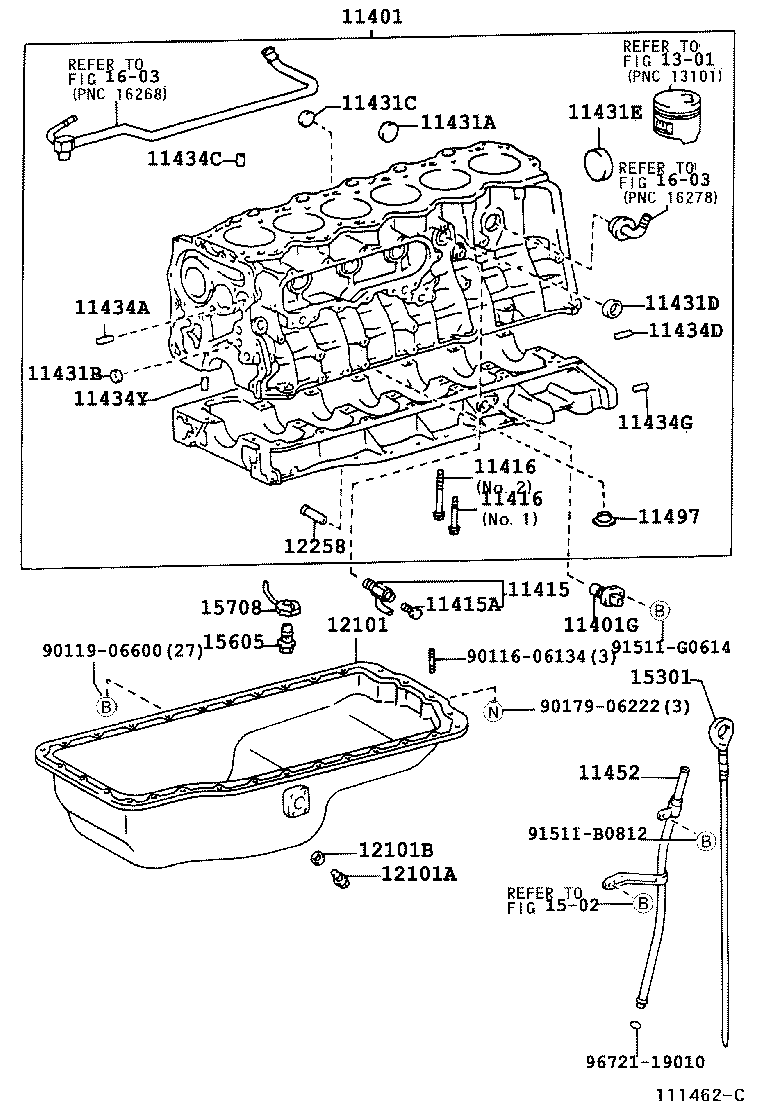

Click highlighted areas on diagram

diagram 11401 11401G 11415 11415A 11416 11416 11431A 11431B 11431C 11431D 11431E 11434A 11434C 11434D 11434G 11434Y 11452 11497 12101 12101A 12101B 12258 1301 1502 15301 15605 15708 1603 1603 9011606134 9011906600 9017906222 91511B0812 91511G0614 9672119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80730

1HDFTE..HDB5#

PNC 11431D(5)

 1
11401-80012

1HDFTE..HDB5#

PNC 11431D(6)

 1
11401G - SENSOR, CRANK POSITION
90919-05005

1HDFTE..HDB5#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-52003

1HD#,1HZ..HDB5#,HZB4#,5#

 1
90910-09075

1H#..HDB5#,HZB4#,5#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1H#..HDB5#,HZB4#,5#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02098

1H#..HDB5#,HZB4#,5#

NO.2

 14
90910-02098

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 14
90119-08182

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 15
90119-08182

1H#..HDB5#,HZB4#,5#

NO.1

 15
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02098

1H#..HDB5#,HZB4#,5#

NO.2

 14
90910-02098

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 14
90119-08182

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 15
90119-08182

1H#..HDB5#,HZB4#,5#

NO.1

 15
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35002

1H#..HDB5#,HZB4#,5#

 3
90331-35002

1HD#,1HZ..HDB5#,HZB4#,5#

 3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-41800

1HD#,1HZ..HDB5#,HZB4#,5#

 4
96411-41800

1H#..HDB5#,HZB4#,5#

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500

1H#..HDB5#,HZB4#,5#

 1
96411-42500

1HD#,1HZ..HDB5#,HZB4#,5#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500

1HDFTE..HDB5#

 5
96411-43500

1HD#..HDB5#

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-45000

1H#..HDB5#,HZB4#,5#

 2
96411-45000

1HD#,1HZ..HDB5#,HZB4#,5#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1HD#,1HZ..HDB5#,HZB4#,5#

長さ=18,外径=8

 2
90250-08120

1H#..HDB5#,HZB4#,5#

長さ=18,外径=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074

1HD#,1HZ..HDB5#,HZB4#,5#

長さ=15,外径=8

 2
90250-08074

1H#..HDB5#,HZB4#,5#

長さ=15,外径=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1HD#,1HZ..HDB5#,HZB4#,5#

長さ=11,外径=6

 2
90250-06068

1H#..HDB5#,HZB4#,5#

長さ=11,外径=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-08054

1HD#,1HZ..HDB5#,HZB4#,5#

 2
90250-08054

1H#..HDB5#,HZB4#,5#

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-12006

1HD#,1HZ..HDB5#,HZB4#,5#

 2
90250-12006

1H#..HDB5#,HZB4#,5#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-17050

1HDFTE..HDB5#

 1
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-17010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
11497-17010

1H#..HDB5#,HZB4#,5#

 1
12101 - PAN SUB-ASSY, OIL
12101-17050

1HD#,1HZ..HDB5#,HZB4#,5#

 1
12101-17210

1H#..HDB5#,HZB4#,5#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1HD#,1HZ..HDB5#,HZB4#,5#

 1
90341-12012

1H#..HDB5#,HZB4#,5#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

1H#..HDB5#,HZB4#,5#

 1
90430-12031

1H#..HDB5#,HZB4#,5#

 1
12258 - PIPE, OIL RETURN
12258-17010

1HD#..HDB5#

 1
12258-17010

1HDFTE..HDB5#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17070

1H#..HDB5#,HZB4#,5#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-17030

1H#..HDB5#,HZB4#,5#

 6
15605-54010

1H#..HDB5#,HZB4#,5#

 6
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-17020

1HDFTE..HDB5#

 6
Common parts
90116-06134
90119-06600
90179-06222
91511-B0812
91511-G0614
96721-19010
Linked diagrams
1301
1502
1603
