HDB50-ZRMEX (1993)

Toyota Coaster

Production Jan 1993 - May 1995
Engine 1HDT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301- )MTM

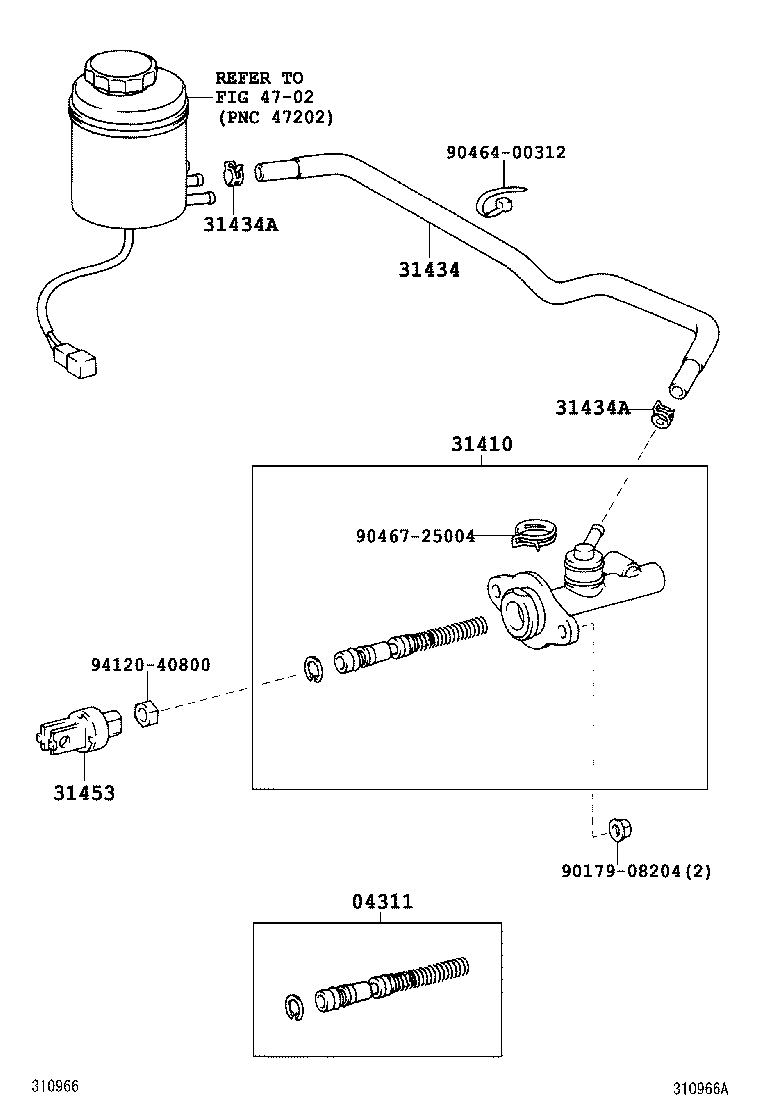

Click highlighted areas on diagram

ｱﾘ(ｸﾗﾂﾁ ﾌﾞ-ｽﾀ)

diagram 04311 31410 31434 31434A 31434A 31453 4702 9017908204 9046400312 9046725004 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-36150

HDB5#,HZB4#,5#..MTM

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31401-36090

HDB5#,HZB4#,5#..MTM

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-36280

HDB5#,HZB4#,5#..MTM

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
90467-13070

BB4#,HDB5#,HZB4#,5#..MTM

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
90467-13070

BB4#,HDB5#,HZB4#,5#..MTM

 2
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-36031

HDB5#,HZB4#,5#..MTM

 1
Common parts
90179-08204
90464-00312
90467-25004
94120-40800
Linked diagrams
4702
