HDB50-ZRMEW (1995)
Toyota Coaster
Production
May 1995
-
May 1997
Engine
1HDFT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9301-9705)HDB5#..5F

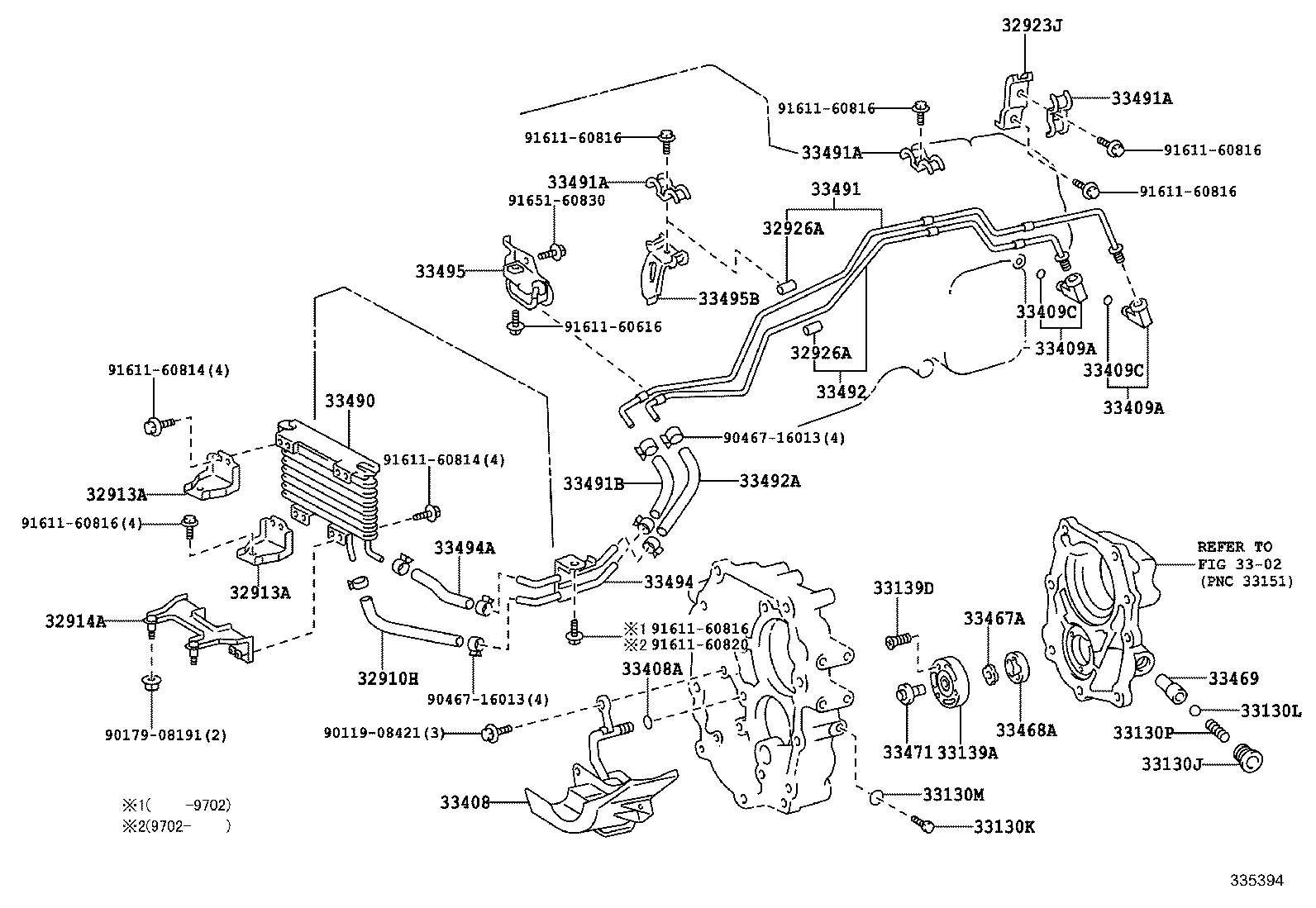

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32910H - HOSE(FOR MANUAL TRANSMISSION OIL COOLER) | ||||
| 90445-17103 |
HDB5#..5F |
1 | ||
| 32913A - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-36040 |
HDB5#..5F |
2 | ||
| 32913A - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-36040 |
HDB5#..5F |
2 | ||
| 32914A - STAY, MANUAL TRANSMISSION OIL COOLER | ||||
| 32914-36020 |
HDB5#..5F |
1 | ||
| 32923J - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32923-60060 |
HDB5#..5F |
1 | ||
| 32926A - CUSHION, OIL COOLER TUBE(MTM) | ||||
| 32926-60010 |
HDB5#..5F |
8 | ||
| 32926A - CUSHION, OIL COOLER TUBE(MTM) | ||||
| 32926-60010 |
HDB5#..5F |
8 | ||
| 33130J - PLUG, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90341-18039 |
HDB5#..5F |
1 | ||
| 33130K - PLUG, NO.2(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
HDB5#..5F |
1 | ||
| 33130L - BALL(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90360-10003 |
HDB5#..5F |
1 | ||
| 33130M - RING, O, NO.1(FOR MANUAL TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
HDB5#..5F |
1 | ||
| 33130P - SPRING, COMPRESSION(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90501-08145 |
HDB5#..5F |
1 | ||
| 33139A - COVER, OIL PUMP(FOR MANUAL TRANSMISSION) | ||||
| 33139-36010 |
HDB5#..5F |
1 | ||
| 33139D - SCREW(FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90149-60053 |
HDB5#..5F |
3 | ||
| 33408 - STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33408-36010 |
HDB5#..5F |
1 | ||
| 33408A - RING, O (FOR MANUAL TRANSMISSION OIL STRAINER) | ||||
| 96721-19009 |
HDB5#..5F |
1 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#..5F |
2 | ||
| 33409A - ELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90407-20004 |
HDB5#..5F |
2 | ||
| 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
HDB5#..5F |
2 | ||
| 33409C - RING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) | ||||
| 90301-11006 |
HDB5#..5F |
2 | ||
| 33467A - ROTOR, OIL PUMP DRIVE (FOR MANUAL TRANSMISSION) | ||||
| 33467-36010 |
HDB5#..5F |
1 | ||
| 33468A - ROTOR, OIL PUMP DRIVEN (FOR MANUAL TRANSMISSION) | ||||
| 33468-36010 |
HDB5#..5F |
1 | ||
| 33469 - SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP) | ||||
| 33469-60010 |
HDB5#..5F |
1 | ||
| 33471 - SHAFT, MANUAL TRANSMISSION OIL PUMP DRIVE, NO.1 | ||||
| 33471-36010 |
HDB5#..5F |
1 | ||
| 33490 - COOLER ASSY, MANUAL TRANSMISSION OIL | ||||
| 32910-36040 |
HDB5#..5F |
1 | ||
| 33491 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.1 | ||||
| 33491-36010 |
HDB5#..5F |
1 | ||
| 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12076 |
HDB5#..5F |
3 | ||
| 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12076 |
HDB5#..5F |
3 | ||
| 33491A - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 90462-12076 |
HDB5#..5F |
3 | ||
| 33491B - HOSE, NO.1 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90445-17096 |
HDB5#..5F |
1 | ||
| 33492 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.2 | ||||
| 33492-36010 |
HDB5#..5F |
1 | ||
| 33492A - HOSE, NO.2 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90445-17096 |
HDB5#..5F |
1 | ||
| 33494 - TUBE, MANUAL TRANSMISSION OIL COOLER, NO.3 | ||||
| 33494-36010 |
HDB5#..5F |
1 | ||
| 33494A - HOSE, NO.3 (FOR MANUAL TRANSMISSION OIL COOLER TUBE) | ||||
| 90445-17101 |
HDB5#..5F |
1 | ||
| 33495 - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.2 | ||||
| 32909-60010 |
HDB5#..5F |
1 | ||
| 33495B - CLAMP, MANUAL TRANSMISSION OIL COOLER TUBE, NO.3 | ||||
| 32925-60070 |
HDB5#..5F |
1 | ||
| Common parts | ||||
| 90119-08421 | ||||
| 90179-08191 | ||||
| 90467-16013 | ||||
| 91611-60616 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-60830 | ||||
| Linked diagrams | ||||
| 3302 | ||||
