HDB50-ZRFNZ (1999)
Toyota Coaster

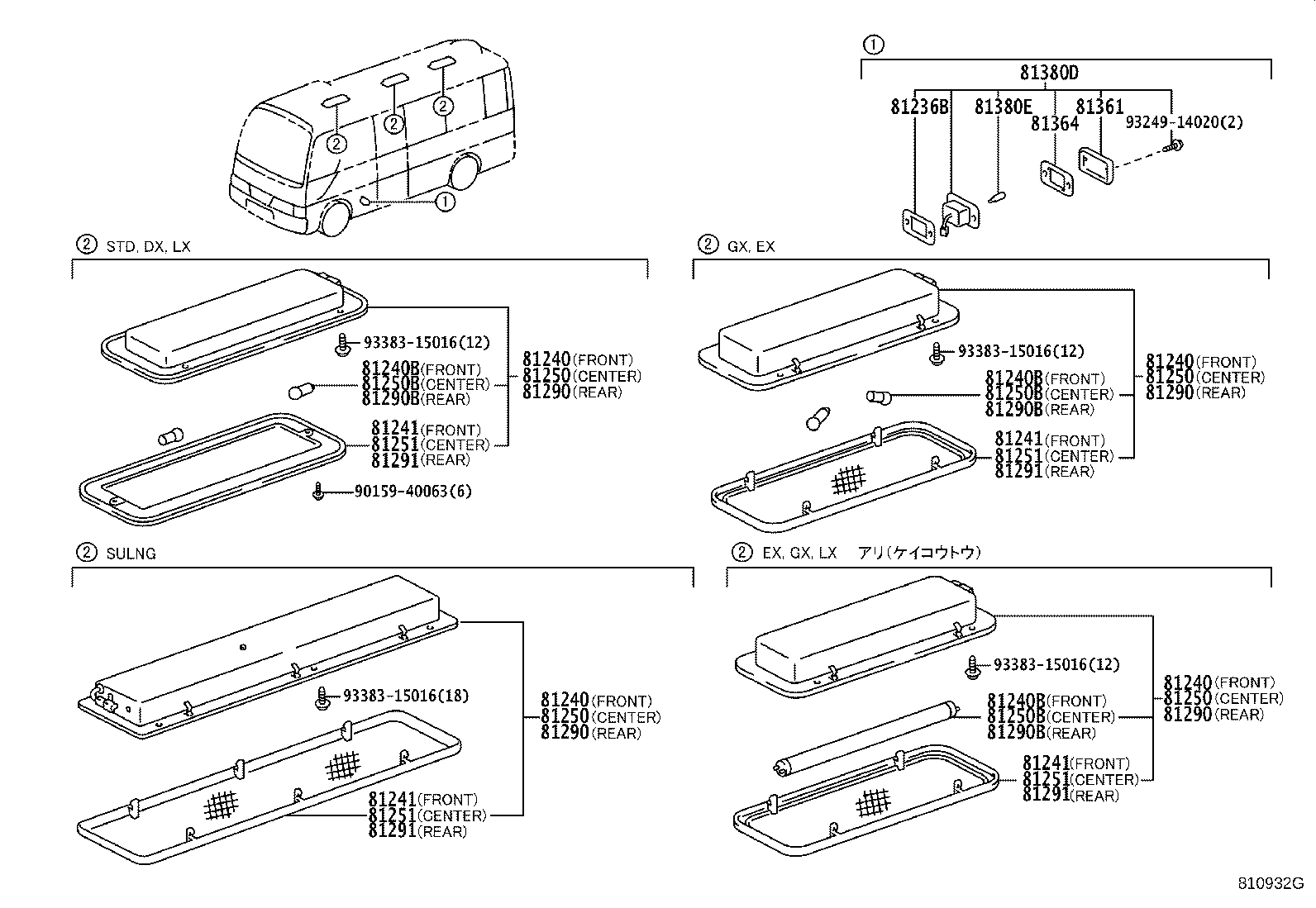

ILLUST NO. 1 OF 2(9301-0408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81236B - RIM,STEP LAMP | ||||
| 81236-14016 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 81236-14016 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36060 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36060 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36060 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36060 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36070 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36070 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36070 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36070 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 90981-11032 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..CBU;HZB40..5F..IV5;BB58,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81251 - LENS, ROOM LAMP, NO.2 | ||||
| 81241-90B00 |
HZB40..CBU;HZB40..5F..IV5;BB58,BZB40,50,HDB5#,HZB41,46,5#..(DX,EX,GX,LX,STD)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB4#,50..(08S,10S,19S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36080 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36080 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36080 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81290 - LAMP ASSY, ROOM, NO.3 | ||||
| 81240-36011A1 |
HZB40..5F;HZB40..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,26S,29S,49S)..(CBU,IV5) IVORY,TRIM4# |
1 | ||
| 81240-36010A0 |
BB4#,HZB40,5#..DX,LX,STD IVORY,TRIM4# |
1 | ||
| 81240-36011B0 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36040B0 |
BZB40,50 MD.CHARCOAL,TRIM1# |
1 | ||
| 81240-36080 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11032 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 99134-11120 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11032 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 99134-11120 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81290B - BULB, ROOM LAMP, NO.3 | ||||
| 90981-11032 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) 100V 10W(ﾏｰｸ FL10D),ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 99134-11120 |
HZB40..5F;HDB51..EX..CBU;HZB40..4FC..CBU;BB4#,5#,HDB50,HZB41,5# 24V 12W |
2 | ||
| 99134-11120 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,49S)..(CBU,IV5) 24V 12W |
2 | ||
| 99132-11100 |
BZB40,50 12V 10W |
2 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81291 - LENS, ROOM LAMP, NO.3(FOR REAR) | ||||
| 81241-90B00 |
BB4#,HZB40,5#..DX,LX,STD |
1 | ||
| 81241-90B00 |
HZB40..5F;HZB40..(26S,39S)..4FC..CBU;BB58,BZB40,50,HDB5#,HZB41,46,5#..(09S,10S,24S,26S,29S,39S,49S)..(CBU,IV5) |
1 | ||
| 81241-36020 |
BB58,HDB5#,HZB40,41,50..(10S,24S,26S,29S)..(EX,GX,LX)..(CBU,IV5) ｱﾘ(ｹｲｺｳﾄｳ) |
1 | ||
| 81361 - LENS, STEP LAMP | ||||
| 81361-90511 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 81361-90511 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 81364 - GASKET, STEP LAMP | ||||
| 81364-90501 |
BB58,BZB40,50,HDB5#,HZB4#,5# |
1 | ||
| 81364-90501 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 81380D - LAMP ASSY, STEP | ||||
| 81380-36010 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| 81380-36010 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 81380-36020 |
BZB40,50 |
1 | ||
| 81380E - BULB (FOR STEP LAMP) | ||||
| 99134-12030 |
BB4#,5#,HDB5#,HZB4#,5#..CBU,IV5 |
1 | ||
| 99132-12050 |
BZB40,50 |
1 | ||
| 99134-12030 |
BB58,HDB5#,HZB4#,5# |
1 | ||
| Common parts | ||||
| 90159-40063 | ||||
| 93249-14020 | ||||
| 93383-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
