HDB50-ZRFNZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

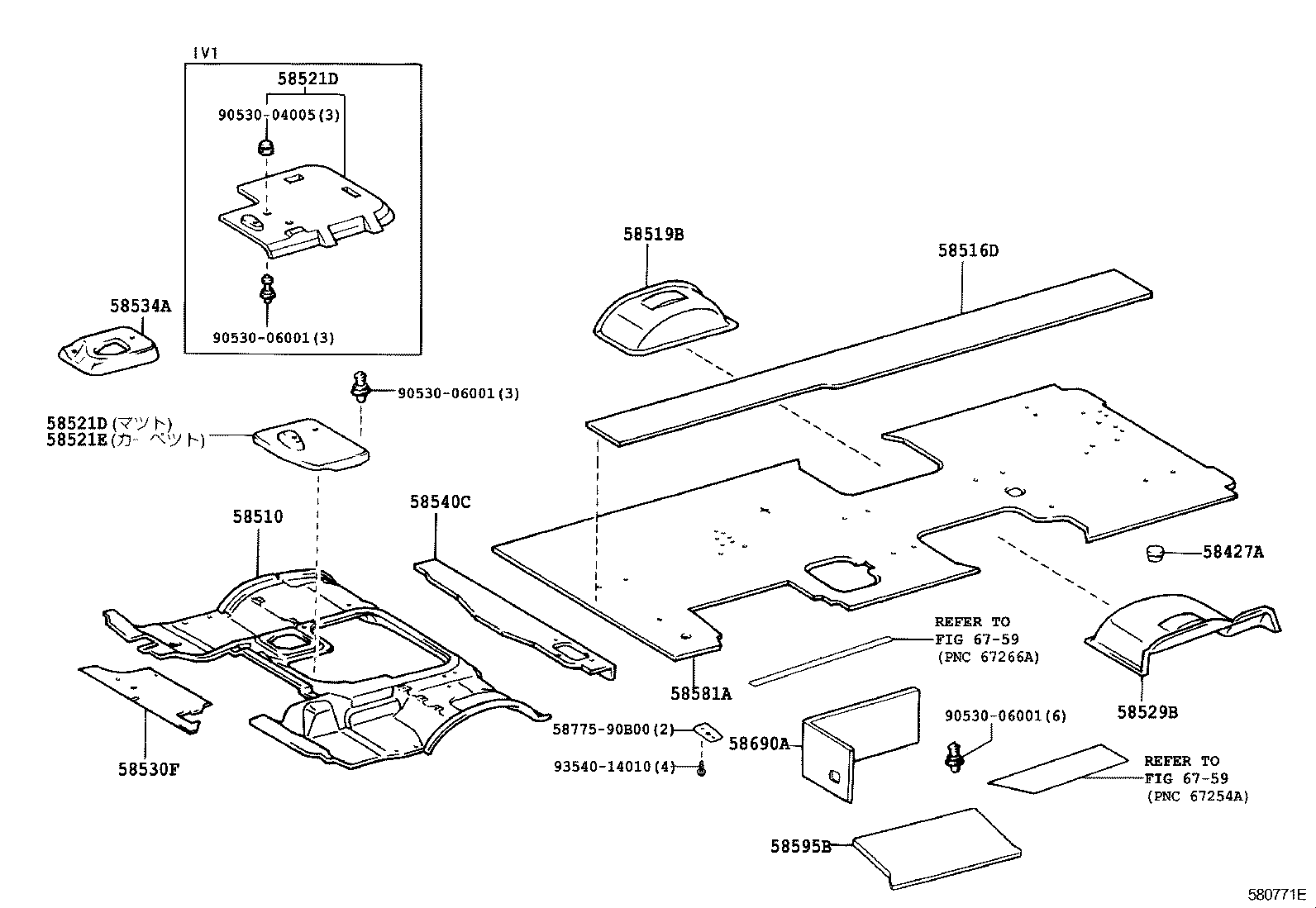

ILLUST NO. 1 OF 3(9301-0408)HZB50..DX,LX,STD ; (9301-0408)BB4#,BZB40,50,HDB5#,HZB4#,56..08S,09S,10S,

Click highlighted areas on diagram

diagram 58427A 58510 58516D 58519B 58521D 58521D 58521E 58529B 58530F 58534A 58540C 58581A 58595B 58690A 5877590B00 6759 6759 9053004005 9053006001 9053006001 9053006001 9354014010
Part # Description Qty Price
58427A - SPACER, REAR FLOOR BOARD
58427-36110

HDB5#,HZB40,41,50..HRF..(26S,29S)..(EX,GX,LX)..CBU

 2
58427-36110

HDB5#,HZB4#,50..(08S,19S,26S,29S)..(CBU,IV5)

ﾅｼ(ﾘﾔ ｼ-ﾄ)

 3
58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1
58510-36010E0

BB40,HZB40,50..(26S,29S)..(DX,LX,STD)

GREIGE,TRIM4#

 1
58510-36700E0

HDB5#..(26S,29S)..6F

GREIGE,TRIM4#

 1
58510-36700B0

BZB40,50,HDB5#..(26S,29S)..MTM

MD.CHARCOAL,TRIM1#

 1
58516D - CARPET, FLOOR, REAR CENTER
58516-36110E0

HDB50..LX..6F

GREIGE,TRIM4#

 1
58516-36111B1

HDB50..LX..6F

MEDIUM CHARCOAL,TRIM1#

 1
58519B - MAT, REAR WHEEL HOUSE, RH
58580-36010E0

HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC

GREIGE,TRIM4#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-36020E0

HDB51..TD2;BB4#,HDB50,HZB4#,5#

GREIGE,TRIM4#

 1
58521-36090B0

BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD

MD.CHARCOAL,TRIM1#

 1
58521-36090E0

HDB50,HZB40,46,5#..DX,LX,STD

GREIGE,TRIM4#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-36020E0

HDB51..TD2;BB4#,HDB50,HZB4#,5#

GREIGE,TRIM4#

 1
58521-36090B0

BZB40,50,HDB50,HZB40,46,5#..DX,LX,STD

MD.CHARCOAL,TRIM1#

 1
58521-36090E0

HDB50,HZB40,46,5#..DX,LX,STD

GREIGE,TRIM4#

 1
58529B - MAT, REAR WHEEL HOUSE, LH
58590-36020E0

HZB50..GX;BB5#,HDB50,HZB41;HDB51..MTM..EX..TD4;HDB51,HZB40,50..IV5;HDB51..26S..TD4..4FC

GREIGE,TRIM4#

 1
58534A - MAT, TRANSMISSION COVER
58534-36020E0

HDB5#,HZB4#,5#..MTM

GREIGE,TRIM4#

 1
58534-36020B0

BZB40,50,HDB5#,HZB4#,5#..MTM

MD.CHARCOAL,TRIM1#

 1
58540C - MAT ASSY, FLOOR, REAR
58540-36060E0

BB4#,HDB50,HZB40,5#..GX,LX

GREIGE,TRIM4#

 1
58540-36210E0

HZB40..4FC..IV5;HZB40,41,50..(26S,29S)..WC..CBU

ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58540-36200E0

HZB4#,5#..EX,GX,LX

GREIGE,TRIM4#

 1
58540-36270E0

HDB5#..(26S,29S)..6F

GREIGE,TRIM4#

 1
58540-36280E0

HDB5#..(26S,29S)..6F

ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58540-36210B0

HZB4#,50..(08S,19S,26S,29S)..(EX,GX,LX)..CBU

ﾅｼ(ﾘﾔｼ-ﾄ(ｻｲｺｳﾚﾂ)),MD.CHARCOAL,TRIM1#

 1
58540-36200B0

HZB4#,5#..EX,GX,LX

MD.CHARCOAL,TRIM1#

 1
58540-36270B0

HDB5#..(26S,29S)..6F

MD.CHARCOAL,TRIM1#

 1
58540-36390B0

BZB40,50..LX

MD.CHARCOAL,TRIM1#

 1
58540-36280B0

HDB5#..(26S,29S)..6F

ﾅｼ(ﾘﾔｼ-ﾄ(ｻｲｺｳﾚﾂ)),MD.CHARCOAL,TRIM1#

 1
58581A - MAT, REAR FLOOR
58581-36800E0

HDB50

*RC5 & ｱﾘ(*FD) & ﾅｼ(ｻｲｺｳﾚﾂ ｼ-ﾄ),GREIGE,TRIM4#

 1
58581-36080E0

HDB50,HZB50..GX,LX

GREIGE,TRIM4#

 1
58581-3E081E0

HDB5#..29S..6F

ｱﾘ(*FD(ｵ-ﾄ)) & ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58581-3E050E0

HDB50..LX..6F

ｱﾘ(*GLD) & ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58581-3E170E0

HDB50..LX..6F

GREIGE,TRIM4#

 1
58581-3E071E0

HDB50..LX..6F

ｱﾘ(*FD(ｵ-ﾄ)),GREIGE,TRIM4#

 1
58581-3E590E0

HDB50..LX..6F

ｱﾘ(*FD),GREIGE,TRIM4#

 1
58581-3E750E0

HDB50..LX..6F

ｱﾘ(*FD) & ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58581-3J140E0

HDB50..LX..6F

ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ),GREIGE,TRIM4#

 1
58581-3J180E0

HDB50..LX..6F

ﾅｼ(ﾘﾔ ｼ-ﾄ),GREIGE,TRIM4#

 1
58581-3E071B0

HDB50..LX..6F

ｱﾘ(*FD(ｵ-ﾄ)),MD.CHARCOAL,TRIM1#

 1
58581-3E170B0

HDB50..LX..6F

MD.CHARCOAL,TRIM1#

 1
58581-3E050B0

HDB50..LX..6F

ｱﾘ(*GLD) & ﾅｼ(ﾘﾔ ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
58581-3E081B0

HDB5#..29S..6F

ｱﾘ(*FD(ｵ-ﾄ)) & ﾅｼ(ﾘﾔ ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
58581-3J180B0

HDB50..LX..6F

ﾅｼ(ﾘﾔ ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
58581-3E590B0

HDB50..LX..6F

ｱﾘ(*FD),MD.CHARCOAL,TRIM1#

 1
58581-3J140B0

HDB50..LX..6F

ｱﾘ(ｵ-ﾄ ｽﾃﾂﾌﾟ),MD.CHARCOAL,TRIM1#

 1
58581-3E750B0

HDB50..LX..6F

ｱﾘ(*FD) & ﾅｼ(ﾘﾔ ｼ-ﾄ),MD.CHARCOAL,TRIM1#

 1
58595B - CARPET, CENTER DOOR STEP
58595-36010E2

HDB5#,HZB50..(20S,26S,29S)..WC..CBU

ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM4#

 1
58595-36010E2

HDB5#,HZB50..(EX,GX,LX,SULNG)..CBU

ｱﾘ(ｸﾞﾗｲﾄﾞｼｷ ｵ-ﾄ ｻｲﾄﾞﾄﾞｱ),DK.BROWN,TRIM1#

 1
58595-36020E2

HDB50

DK.BROWN,TRIM1#

 1
58595-36020E2

HDB50

DK.BROWN,TRIM4#

 1
Common parts
58775-90B00
90530-04005
90530-06001
93540-14010
Linked diagrams
6759
