HDB50-ZRFNZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

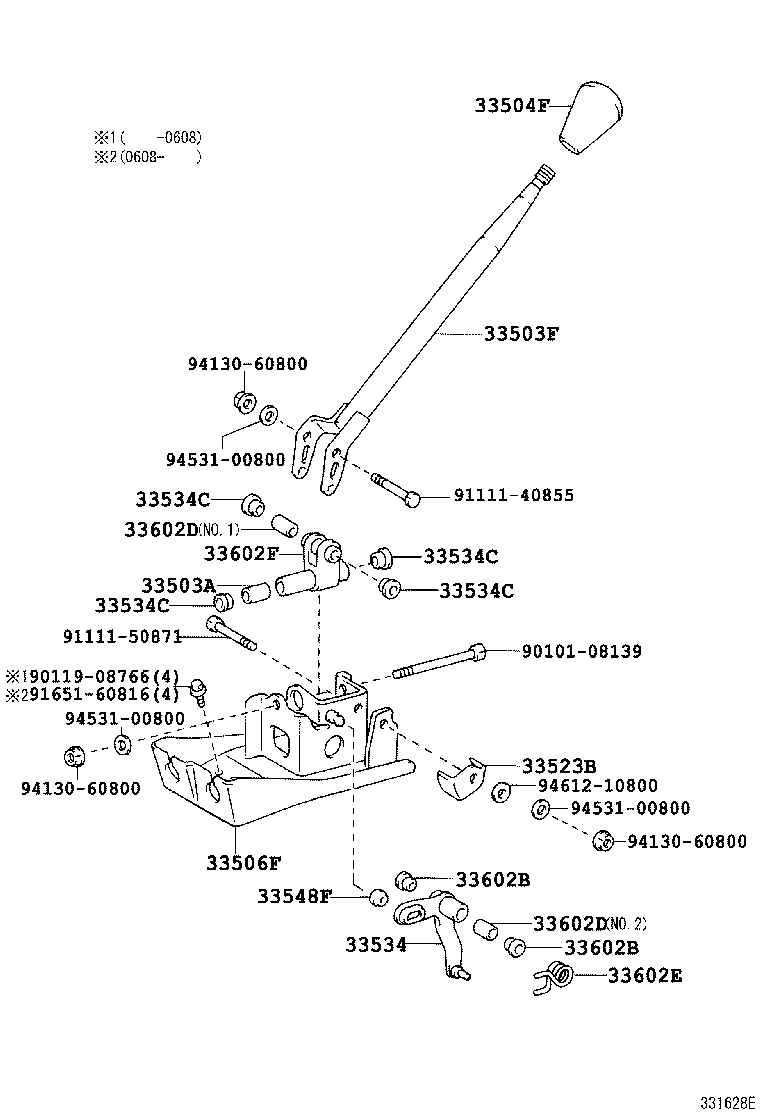

ILLUST NO. 1 OF 2(9907- )MTM

diagram 33503A 33503F 33504F 33506F 33523B 33534 33534C 33534C 33534C 33534C 33548F 33602B 33602B 33602D 33602D 33602E 33602F 9010108139 9011908766 9111140855 9111150871 9165160816 9413060800 9413060800 9413060800 9453100800 9453100800 9453100800 9461210800
Part # Description Qty Price
33503A - COLLAR(FOR SHIFT LEVER)
90440-13003

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-36060

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-36080C0

HDB5#..6F

BLACK,TRIM4#

 1
33504-36080C0

HDB5#..6F

BLACK,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-36010

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT)
33523-36040

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33534 - BELLCRANK, SELECTING
33534-36090

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33534C - BUSH (FOR SELECTING BELLCRANK NO.1)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 4
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 2
33602B - BUSHING (FOR SELECT LEVER)
90386-13007

BZB40,50,HDB5#,HZB4#,5#..MTM

 2
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.2

 1
90387-08063

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.1

 1
33602D - COLLAR (FOR SELECT LEVER)
90387-08148

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.2

 1
90387-08063

BZB40,50,HDB5#,HZB4#,5#..MTM

NO.1

 1
33602E - SPRING, TORSION (FOR SELECT LEVER)
90949-03067

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)
33602-36031

BZB40,50,HDB5#,HZB4#,5#..MTM

 1
Common parts
90101-08139 None epc.PartDetail.None
90119-08766 None epc.PartDetail.None
91111-40855 None epc.PartDetail.None
91111-50871 None epc.PartDetail.None
91651-60816 None epc.PartDetail.None
94130-60800 None epc.PartDetail.None
94531-00800 None epc.PartDetail.None
94612-10800 None epc.PartDetail.None
