HDB50-ZRFNZ (1999)

Toyota Coaster

Production Jul 1999 - Aug 2004
Engine 1HDFTE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9301-0408)1HD#,1HZ

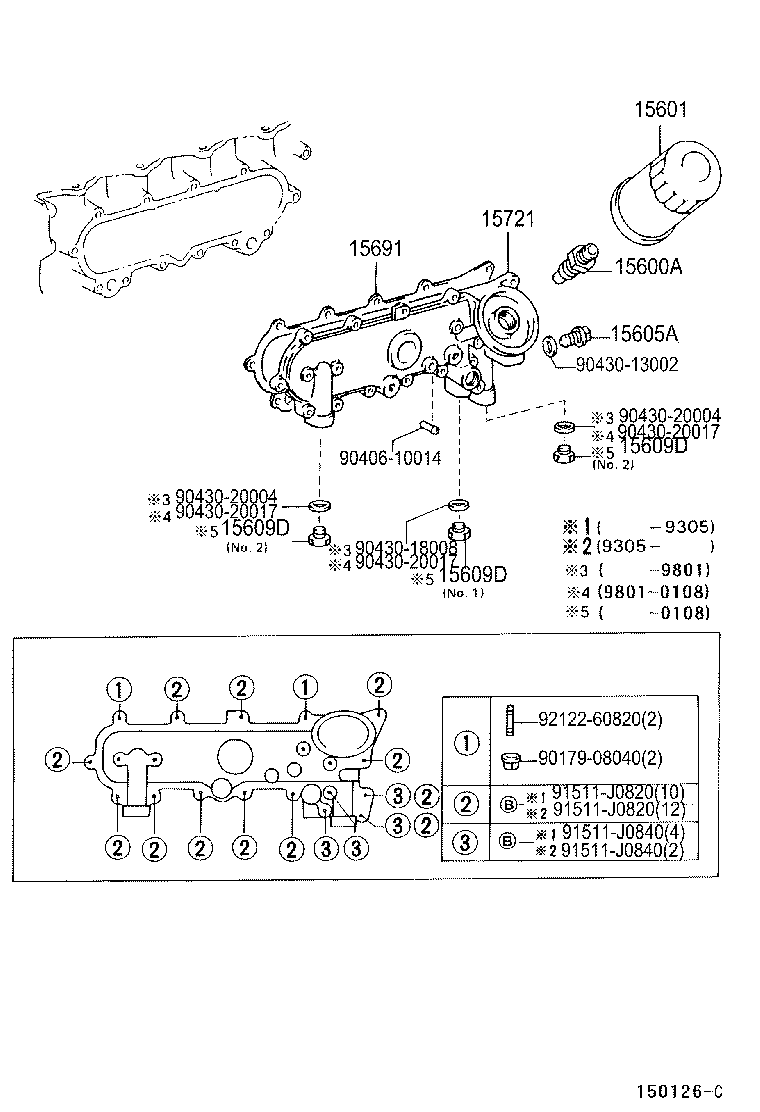

Click highlighted areas on diagram

diagram 15600A 15601 15605A 15609D 15609D 15609D 15691 15721 9017908040 9040610014 9043013002 9043018008 9043020004 9043020004 9043020017 9043020017 9043020017 91511J0820 91511J0820 91511J0840 91511J0840 9212260820
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54021

1H#..HDB5#,HZB4#,5#

 1
90404-27001

1H#..HDB5#,HZB4#,5#

 1
15601 - FILTER SUB-ASSY, OIL
90915-30002

1HD#,1HZ..HDB5#,HZB4#,5#

 1
90915-30002

1H#..HDB5#,HZB4#,5#

 1
15605A - VALVE SUB-ASSY, OIL CHECK
15605-17020

1H#..HDB5#,HZB4#,5#

 1
15605-17020

1HD#,1HZ..HDB5#,HZB4#,5#

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 1
90341-20002

1H#..HDB5#,HZB4#,5#

 3
90341-20002

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 1
90341-20002

1H#..HDB5#,HZB4#,5#

 3
90341-20002

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-18006

1HD#,1HZ..HDB5#,HZB4#,5#

NO.1

 1
90341-20002

1H#..HDB5#,HZB4#,5#

 3
90341-20002

1HD#,1HZ..HDB5#,HZB4#,5#

NO.2

 2
15691 - GASKET, OIL FILTER
15725-17010

1HD#,1HZ..HDB5#,HZB4#,5#

 1
15725-17010

1H#..HDB5#,HZB4#,5#

 1
15721 - COVER, OIL COOLER
15721-17012

1HDFTE..HDB5#

 1
Common parts
90179-08040
90406-10014
90430-13002
90430-18008
90430-20004
90430-20017
91511-J0820
91511-J0840
92122-60820
