HDB50-ZRFEZ (1999)
Toyota Coaster
(9301-0408)

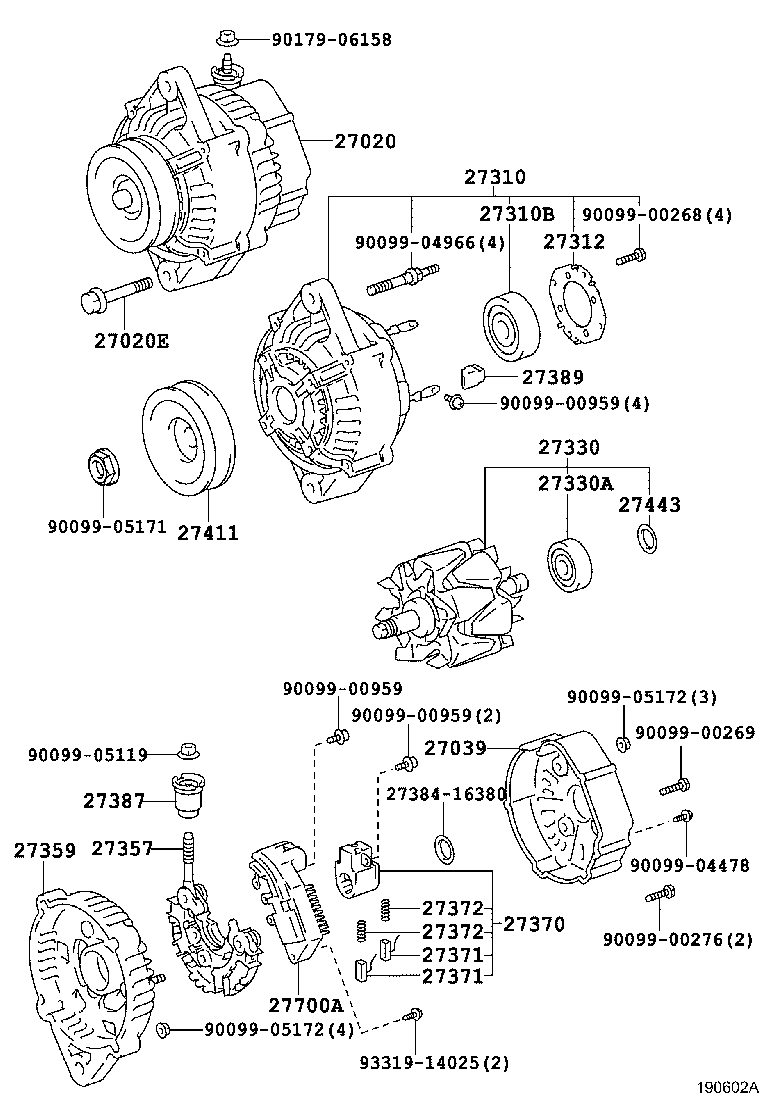

24V 25A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27060-17131 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27060-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17240 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17131 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10038 |
1H#..HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 90101-12173 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90101-12173 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90105-10397 |
1H#..HDB50,HZB4#,5#..CBU |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-50090 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27039-50090 |
1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27039-17230 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27310-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27310-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27310-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10188 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10188 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10192 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27312-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27330-58090 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58090 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58050 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10141 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10141 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27357-17080 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27359-58050 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27370-75060 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27371-54412 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27371-54412 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27372-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27372-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27387-17130 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-17130 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-42021 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
4 | ||
| 27389-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27411-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27411-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27411-17030 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU |
1 | ||
| 27443-63020 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58060 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58040 |
15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S 24V 25A OR 24V 60A |
1 | ||
| 27700-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27700-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
(9301-0408)

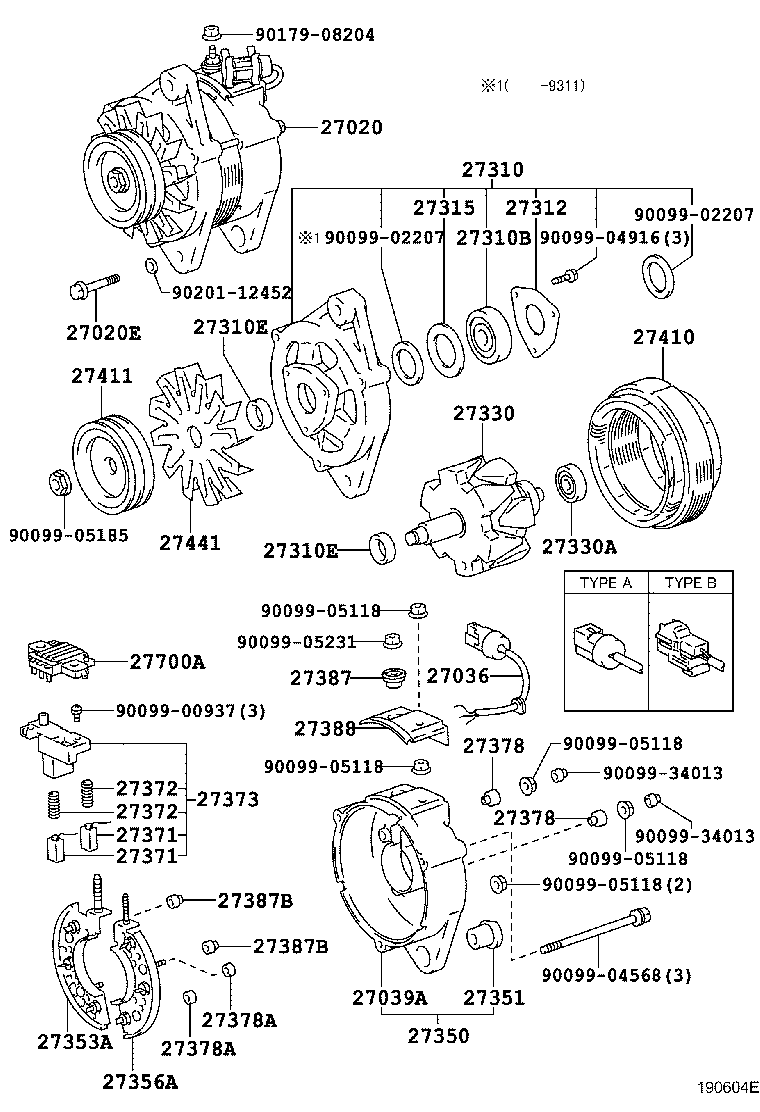

24V 85A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27060-17131 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27060-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17240 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17131 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10038 |
1H#..HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 90101-12173 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90101-12173 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90105-10397 |
1H#..HDB50,HZB4#,5#..CBU |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27036-58161 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG)..(CBU,IV5) TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC..(CBU,IV5) |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27310-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27310-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27310-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10188 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10188 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10192 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 90099-20014 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-20014 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 90099-20014 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27312-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27315-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27330-58090 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58090 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58050 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10141 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10141 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 27350-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-58160 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27351-58160 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27353A - HOLDER, W/RECTIFIER | ||||
| 27353-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27353-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27356A - HOLDER SUB-ASSY, RECTIFIER | ||||
| 27356-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27356-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27371-54412 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27371-54412 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27372-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
2 | ||
| 27372-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(09S,20S,26S,29S)..WC 24V 85A |
2 | ||
| 27373 - HOLDER, ALTERNATOR BRUSH, A | ||||
| 27373-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27373-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27378 - INSULATOR, ALTERNATOR, NO.1 | ||||
| 27378-45020 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378-45020 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378 - INSULATOR, ALTERNATOR, NO.1 | ||||
| 27378-45020 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378-45020 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378A - INSULATOR, ALTERNATOR, NO.2 | ||||
| 27378-54010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378-54010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378A - INSULATOR, ALTERNATOR, NO.2 | ||||
| 27378-54010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27378-54010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27387-17130 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-17130 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-42021 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-54010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27387-54010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27387B - INSULATOR, ALTERNATOR TERMINAL | ||||
| 27387-54010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27387-54010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27388-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27388-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27388-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27410-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27411-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27411-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27411-17030 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-57030 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27441-57030 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58060 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58040 |
15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S 24V 25A OR 24V 60A |
1 | ||
| 27700-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27700-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| Common parts | ||||
| 90099-00937 | ||||
| 90099-02207 | ||||
| 90099-04568 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05185 | ||||
| 90099-05231 | ||||
| 90099-34013 | ||||
| 90179-08204 | ||||
| 90201-12452 | ||||
(9301-0408)
24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

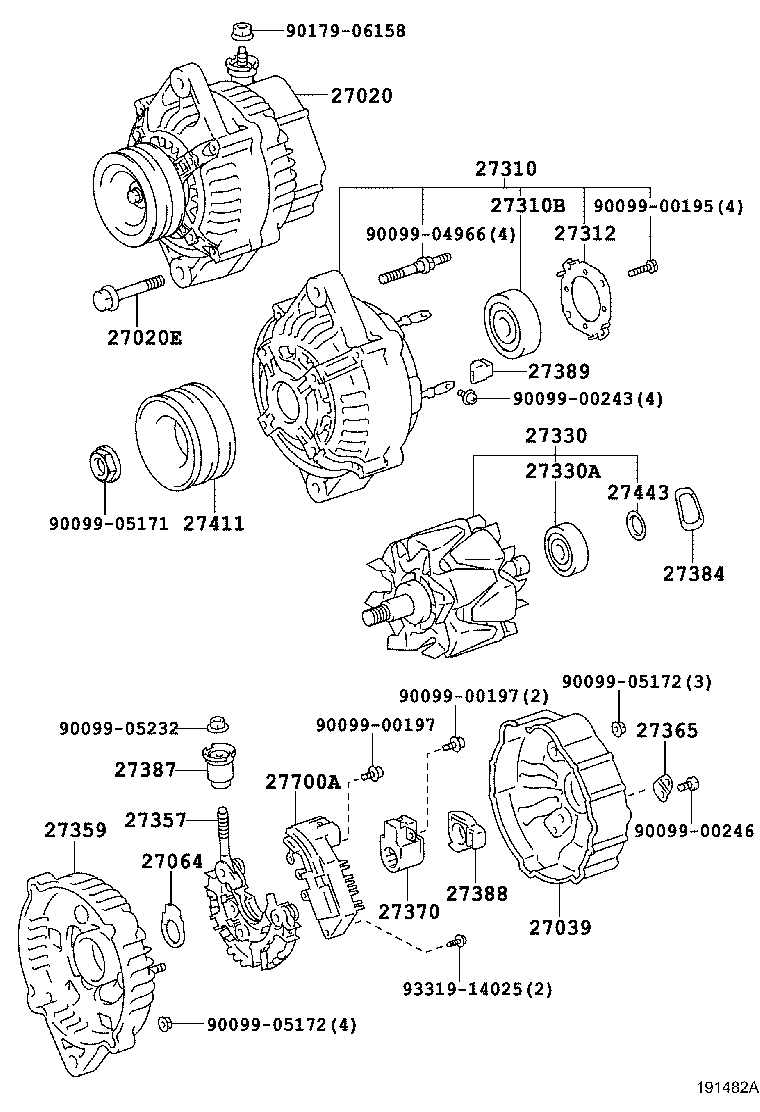

| 27020 - ALTERNATOR ASSY | ||||
| 27060-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27060-17131 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27060-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17240 |
1HZ..HZB40..4FC..IV5;1H#..HDB5#,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27060-17131 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10038 |
1H#..HDB5#,HZB4#,5#..09S,20S,26S,29S,49S |
1 | ||
| 90101-12173 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90101-12173 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90105-10397 |
1H#..HDB50,HZB4#,5#..CBU |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-50090 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27039-50090 |
1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27039-17230 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU |
1 | ||
| 27064-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27310-17120 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27310-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27310-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10188 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10188 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10192 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27312-56070 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-56070 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27312-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27330-58090 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58090 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27330-58050 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10141 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 90099-10141 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 90099-10140 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27357-17080 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27359-58050 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU |
1 | ||
| 27365-55080 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27370-75060 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU |
1 | ||
| 27384-50030 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42020 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27387-17130 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-17130 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27387-42021 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27388-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27388-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27388-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
4 | ||
| 27389-42010 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU 24V 60A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HZ..HZB40..4FC..IV5;1HD#,1HZ..HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU 24V 60A |
1 | ||
| 27411-17100 |
1HD#,1HZ..HDB5#,HZB4#,5#..EX,GX,LX,SULNG 24V 85A |
1 | ||
| 27411-17100 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27411-17030 |
1H#..HDB50,HZB4#,5#..CBU 24V 60A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..CBU |
1 | ||
| 27443-63020 |
1HZ..HZB40..4FC..IV5;15BF,3B,1HD#,1HZ..BB4#,5#,HDB5#,HZB4#,5#..(09S,20S,26S,29S,39S,49S)..CBU |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58060 |
1HZ..HZB40..4FC..IV5;15BFTE,1H#..BB58,HDB5#,HZB4#,5#..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58060 |
15BFTE,1H#..BB58,HDB50,HZB4#,5#..(09S,26S,29S,39S,49S)..CBU 24V 25A OR 24V 60A |
1 | ||
| 27700-58040 |
15BF,3B,1HD#,1HZ..BB4#,55,HDB5#,HZB4#,5#..09S,20S,26S,29S,39S,49S 24V 25A OR 24V 60A |
1 | ||
| 27700-58010 |
3B,1HD#,1HZ..BB4#,HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| 27700-58010 |
1H#..HDB5#,HZB4#,5#..HRF..(EX,GX,LX,SULNG) 24V 85A |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
