HDB31-PGZRX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1H#

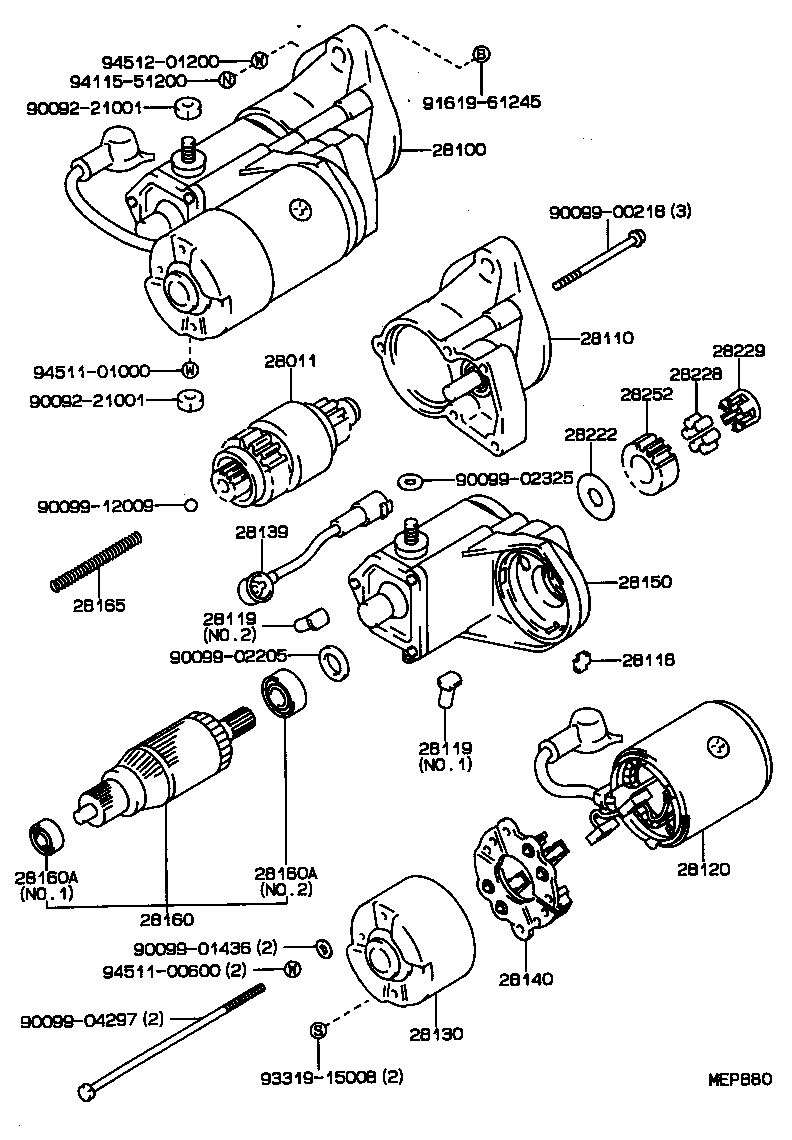

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28110 28118 28119 28119 28120 28130 28139 28140 28150 28160 28160A 28160A 28165 28222 28228 28229 28252 9009221001 9009221001 9009900218 9009901436 9009902205 9009902325 9009904297 9009912009 9161961245 9331915008 9411551200 9451100600 9451101000 9451201200
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-17020

1H#..HDB20,3#,HZB3#

24V 4.5KW

 1
28100 - STARTER ASSY
28100-17020

1H#..HDB20,3#,HZB3#

24V 4.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-17020

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28118 - PLATE(FOR STARTER YOKE)
28118-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28119 - COVER, STARTER END FRAME
28119-77090

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.1

 1
28119-47070

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.2

 1
28119 - COVER, STARTER END FRAME
28119-77090

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.1

 1
28119-47070

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.2

 1
28120 - YOKE ASSY, STARTER
28120-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-54010

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-47070

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-17020

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28160 - ARMATURE ASSY, STARTER
28160-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.2

 1
90099-10107

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.2

 1
90099-10107

1H#..HDB20,3#,HZB3#

24V 4.5W,NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-56080

1H#..HDB20,3#,HZB3#

24V 4.5W

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-56080

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
28252 - GEAR, STARTER IDLE
28254-77090

1H#..HDB20,3#,HZB3#

24V 4.5W

 1
Common parts
90092-21001
90099-00218
90099-01436
90099-02205
90099-02325
90099-04297
90099-12009
91619-61245
93319-15008
94115-51200
94511-00600
94511-01000
94512-01200
