Toyota Coaster HDB31 ROOM CURTAIN & ROOM RACK

Part #	Description	Period	Qty
65930B - CURTAIN ASSY, SIDE WINDOW, FRONT RH
65930-90B00	BB31,HDB3#,HZB30,31..WC W/DX CARTAIN	01/1990 - 01/1993	5
65936 - RAIL, CURTAIN, NO.1
65096-90B0108	BB31,HDB3#,HZB30,31..WC IVORY	01/1990 - 01/1993	1
65937 - RAIL, CURTAIN, NO.2
65097-90B0008	BB21,23,24,31,HDB20,3#,HZB30,31,RB20..WC IVORY	01/1990 - 01/1993	1
65938 - RAIL, CURTAIN, NO.3
65098-90B0108	BB31,HDB3#,HZB30,31..WC IVORY	01/1990 - 01/1993	1
65939 - RAIL, CURTAIN, NO.4
65099-90B00	BB21,23,24,31,HDB20,3#,HZB30,31,RB20..WC	01/1990 - 01/1993	1
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-90B02	HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
65940-90B02	BB21,23,24,31,RB20..WC W/DX CARTAIN	01/1990 - 01/1993	1
65940-90B00	BB31,HDB3#,HZB30,31..WC W/DX CARTAIN	01/1990 - 01/1993	5
65940B - CURTAIN ASSY, SIDE WINDOW, FRONT LH
65940-90B02	HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
65940-90B02	BB21,23,24,31,RB20..WC W/DX CARTAIN	01/1990 - 01/1993	1
65940-90B00	BB31,HDB3#,HZB30,31..WC W/DX CARTAIN	01/1990 - 01/1993	5
65950A - CURTAIN ASSY, SIDE WINDOW, REAR RH
65950-90B00	BB31,HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
65960B - CURTAIN ASSY, SIDE WINDOW, REAR LH
65960-90B00	BB31,HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
65980A - CURTAIN ASSY, BACK WINDOW, RH
65980-90B00	HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
65980-90B00	BB21,23,24,31,RB20..WC W/DX CARTAIN	01/1990 - 03/1990	1
65990A - CURTAIN ASSY, BACK WINDOW, LH
65990-90B00	BB21,23,24,31,RB20..WC W/DX CARTAIN	01/1990 - 03/1990	1
65990-90B00	HDB3#,HZB3#..WC W/DX CARTAIN	01/1990 - 01/1993	1
Common parts
90468-15004
93530-14016

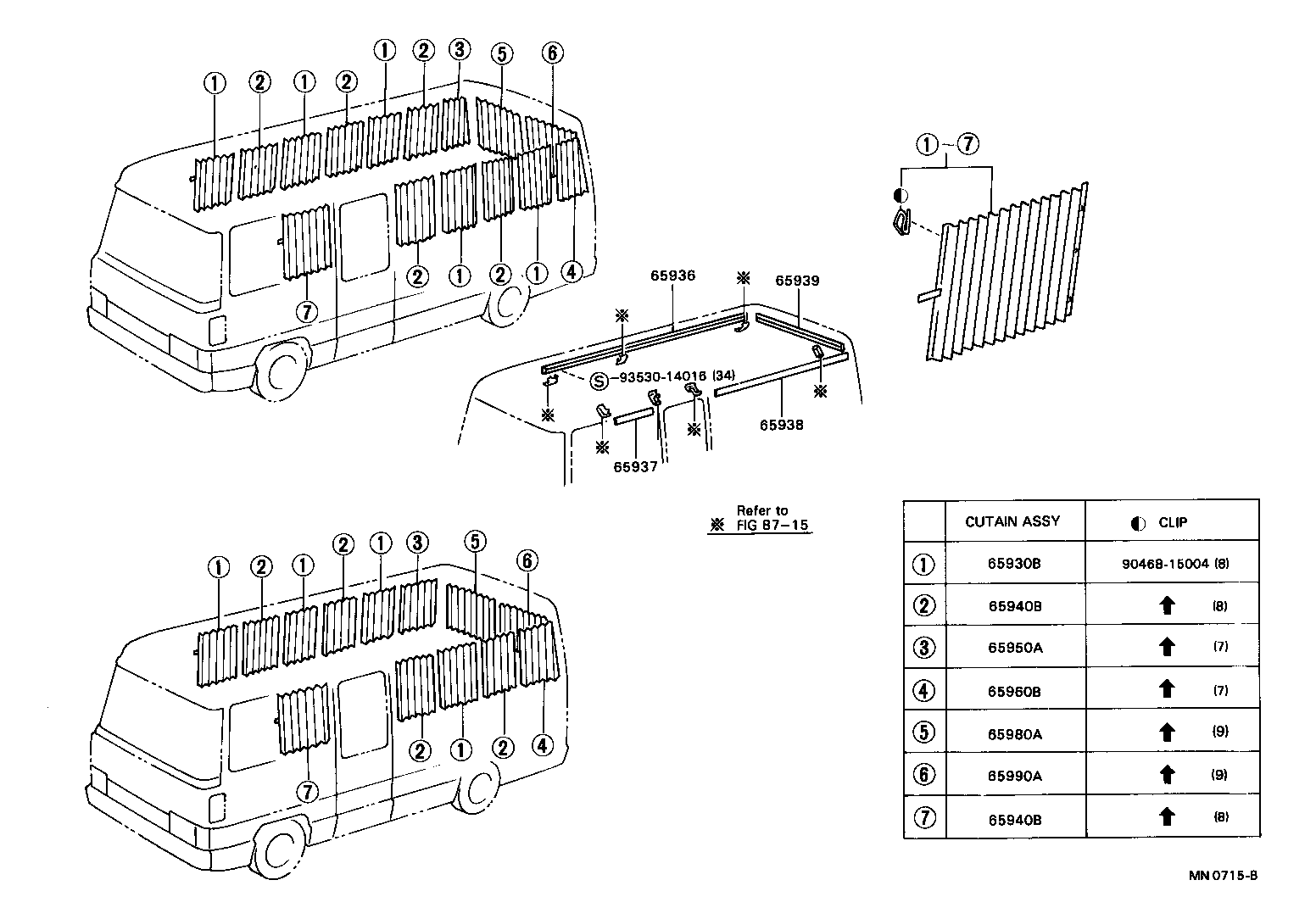

Linked diagrams
8715

HDB31-MGZRX (1990)

ILLUST NO. 2 OF 2(9001- )BB2#,31,HDB20,3#,HZB30,31,RB20..WC
