HDB31-MGZRX (1990)
Toyota Coaster

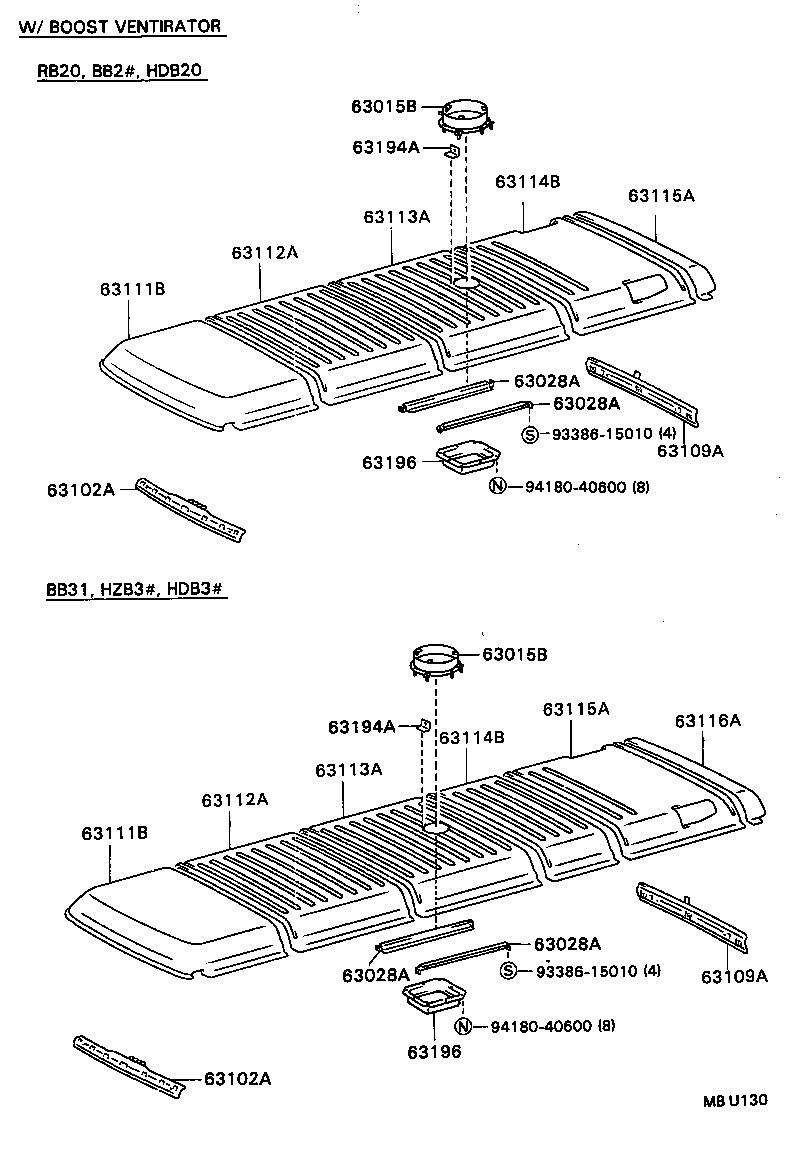

ILLUST NO. 1 OF 3(9001- )BB2#,31,HDB20,3#,HZB3#,RB20..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63015B - FLANGE SUB-ASSY, BOOST VENTILATOR HOLE | ||||
| 63015-90B00 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| 63015B - FLANGE SUB-ASSY, BOOST VENTILATOR HOLE | ||||
| 63015-90B00 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| 63028A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.9 | ||||
| 63028-90B00 |
BB21,23,26,RB20..HRF..WC W/BOOST VENTIRATOR |
2 | ||
| 63028-90B00 |
BB24,HDB31,HZB31 W/BOOST VENTIRATOR |
1 | ||
| 63028A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.9 | ||||
| 63028-90B00 |
BB21,23,26,RB20..HRF..WC W/BOOST VENTIRATOR |
2 | ||
| 63028-90B00 |
BB24,HDB31,HZB31 W/BOOST VENTIRATOR |
1 | ||
| 63028A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.9 | ||||
| 63028-90B00 |
BB21,23,26,RB20..HRF..WC W/BOOST VENTIRATOR |
2 | ||
| 63028-90B00 |
BB24,HDB31,HZB31 W/BOOST VENTIRATOR |
1 | ||
| 63028A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.9 | ||||
| 63028-90B00 |
BB21,23,26,RB20..HRF..WC W/BOOST VENTIRATOR |
2 | ||
| 63028-90B00 |
BB24,HDB31,HZB31 W/BOOST VENTIRATOR |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B02 |
HDB3#,HZB3# W/CLOCK |
1 | ||
| 63102-90B02 |
BB2#,3#,HB3#,RB2#..HRF W/CLOCK |
1 | ||
| 63102-90B08 |
HDB20,3#,HZB30,31 W/CLOCK & *TV |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90B02 |
HDB3#,HZB3# W/CLOCK |
1 | ||
| 63102-90B02 |
BB2#,3#,HB3#,RB2#..HRF W/CLOCK |
1 | ||
| 63102-90B08 |
HDB20,3#,HZB30,31 W/CLOCK & *TV |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B09 |
BB20,21,23,24,HB30,31,32,RB20..HRF..WC |
1 | ||
| 63109-90B05 |
BB30,31..WC |
1 | ||
| 63109-90B09 |
HDB20,3#,HZB30,31..WC |
1 | ||
| 63109-90B08 |
HDB20,3#,HZB30,31 W/BACK EYE TELEVISION |
1 | ||
| 63109A - PANEL SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63109-90B09 |
BB20,21,23,24,HB30,31,32,RB20..HRF..WC |
1 | ||
| 63109-90B05 |
BB30,31..WC |
1 | ||
| 63109-90B09 |
HDB20,3#,HZB30,31..WC |
1 | ||
| 63109-90B08 |
HDB20,3#,HZB30,31 W/BACK EYE TELEVISION |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-90B03 |
HDB20,3#,HZB3# |
1 | ||
| 63111B - PANEL, ROOF, NO.1 | ||||
| 63111-90B03 |
HDB20,3#,HZB3# |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B02 |
HDB20,3#,HZB3# |
1 | ||
| 63112-90B02 |
BB2#,3#,HB3#,RB2#..HRF |
1 | ||
| 63112A - PANEL, ROOF, NO.2 | ||||
| 63112-90B02 |
HDB20,3#,HZB3# |
1 | ||
| 63112-90B02 |
BB2#,3#,HB3#,RB2#..HRF |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B02 |
HDB3#,HZB3# |
1 | ||
| 63112-90B02 |
BB2#,3#,HB3#,RB2#..HRF |
1 | ||
| 63113-90B02 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| 63113A - PANEL, ROOF, NO.3 | ||||
| 63112-90B02 |
HDB3#,HZB3# |
1 | ||
| 63112-90B02 |
BB2#,3#,HB3#,RB2#..HRF |
1 | ||
| 63113-90B02 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63115-90B01 |
HDB3#,HZB3# |
1 | ||
| 63114B - PANEL, ROOF, NO.4 | ||||
| 63115-90B01 |
HDB3#,HZB3# |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63018-90B03 |
HDB3#,HZB3#..(DLX,EX)..WC |
1 | ||
| 63117-90B23 |
BB21,23,24,31,RB20..(DLX,EX)..HRF W/BACK EYE TELEVISION |
1 | ||
| 63117-90B24 |
BB21,23,24,31,RB20..HRF W/*SOBD & BACK EYE TELEVISION |
1 | ||
| 63115A - PANEL, ROOF, NO.5 | ||||
| 63018-90B03 |
HDB3#,HZB3#..(DLX,EX)..WC |
1 | ||
| 63117-90B23 |
BB21,23,24,31,RB20..(DLX,EX)..HRF W/BACK EYE TELEVISION |
1 | ||
| 63117-90B24 |
BB21,23,24,31,RB20..HRF W/*SOBD & BACK EYE TELEVISION |
1 | ||
| 63116A - PANEL, ROOF, NO.6 | ||||
| 63117-90B14 |
HDB3#,HZB30,31 W/*SOBD |
1 | ||
| 63117-90B08 |
BB30,31,HB30,31,32..(DLX,EX,EXS)..HRF |
1 | ||
| 63117-90B23 |
HDB3#,HZB30,31 W/BACK EYE TELEVISION |
1 | ||
| 63117-90B24 |
HDB3#,HZB30,31 W/*SOBD & BACK EYE TELEVISION |
1 | ||
| 63117-90B08 |
HDB3#,HZB30,31 |
1 | ||
| 63194A - BRACKET, BOOST VENTIRATOR COVER, NO.1 | ||||
| 63194-90B00 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
3 | ||
| 63194A - BRACKET, BOOST VENTIRATOR COVER, NO.1 | ||||
| 63194-90B00 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
3 | ||
| 63196 - BRACKET, BOOST VENTILATOR LOUVER | ||||
| 63196-90B01 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| 63196 - BRACKET, BOOST VENTILATOR LOUVER | ||||
| 63196-90B01 |
HDB3#,HZB3#..WC W/BOOST VENTIRATOR |
1 | ||
| Common parts | ||||
| 93386-15010 | ||||
| 94180-40600 | ||||
ILLUST NO. 3 OF 3(9001- )BB31,HDB3#,HZB3#..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63023-90B00 |
BB24,HDB31,HZB31..EX W(ROOM LAMP) |
1 | ||
| 63023B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.2 | ||||
| 63023-90B00 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63023-90B00 |
BB24,HDB31,HZB31..EX W(ROOM LAMP) |
1 | ||
| 63024B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.4 | ||||
| 63024-90B02 |
HDB31,HZB31..EX |
1 | ||
| 63024-90B00 |
BB21,23,26,RB20..HRF |
1 | ||
| 63026C - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.7 | ||||
| 63267-90B00 |
HDB31,HZB31..EX |
1 | ||
| 63027A - STRENGTH SUB-ASSY, ROOF PANEL, CENTER NO.8 | ||||
| 63027-90B01 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63031B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER RH NO.1 | ||||
| 63031-90B00 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63032B - STRENGTH SUB-ASSY, ROOF PANEL, CENTER LH, NO.1 | ||||
| 63032-90B01 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63033B - BRACKET SUB-ASSY, ROOM LAMP, NO.1 | ||||
| 63033-90B01 |
BB24,HDB31,HZB31..EX |
1 | ||
| 63034B - BRACKET SUB-ASSY, ROOM LAMP, NO.2 | ||||
| 63034-90B01 |
BB24,HDB31,HZB31..EX |
1 | ||
| 63035 - BRACKET, ROOM LAMP, NO.3 | ||||
| 63035-90B01 |
BB24,HDB31,HZB31..EX |
1 | ||
| 63035-90B03 |
BB24,HDB31,HZB31..EX W/BOOST VENTIRATOR |
1 | ||
| 63036 - BRACKET SUB-ASSY, ROOM LAMP, NO.4 | ||||
| 63036-90B00 |
HDB31,HZB31..EX |
1 | ||
| 63037A - BRACKET SUB-ASSY, ROOM LAMP, NO.5 | ||||
| 63037-90B04 |
HDB31,HZB31..EX |
1 | ||
| 63052 - STRENGTH SUB-ASSY, ROOF PANEL, FRONT | ||||
| 63052-90B00 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC W/TV & VIDEO |
1 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3 | ||||
| 63103-90B00 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
1 | ||
| 63103-90B01 |
HDB31,HZB31..EX W/BOOST VENTIRATOR;W/TV & VIDEO;RENTAL CAR PACKAGE |
5 | ||
| 63104-90B01 |
HDB31,HZB31..EX W/TV & VIDEO;W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;RENTAL CAR PACKAGE |
1 | ||
| 63105-90B01 |
HDB31,HZB31..EX W/BAGGAGE RACK & TV & VIDEO;RENTAL CAR PACKAGE,W/BAGGAGE PACK & BOOST VENTIRATOR;W/BAGGAGE RACK |
4 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-90B04 |
BB24,HDB31,HZB31 W/BAGGAGE RACK |
1 | ||
| 63207-90B04 |
HDB31,HZB31..EX |
1 | ||
| 63207-90B04 |
BB21,23,26,31,RB20..HRF |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63208-90B02 |
BB2#,HDB3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63156C - PLATE, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63156-90B01 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC W/TV & VIDEO |
2 | ||
| 63156C - PLATE, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63156-90B01 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC W/TV & VIDEO |
2 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63211D - BRACKET, ROOF REINFORCEMENT, INNER, NO.1 | ||||
| 63211-90B01 |
BB31,HDB3#,HZB3#..HRF |
14 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63214G - BRACKET, ROOF REINFORCEMENT, INNER, NO.4 | ||||
| 63214-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63231 - BRACKET, ROOM LAMP | ||||
| 63231-90B01 |
BB24,HDB31,HZB31..EX |
1 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63235B - BRACKET, ROOM SPEAKER | ||||
| 63038-90B01 |
HDB31,HZB31 |
1 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 2 SPEAKER |
4 | ||
| 63235-90B02 |
BB21,23,31,HDB30,HZB30,36,RB20..HRF 4 SPEAKER |
8 | ||
| 63235-90B02 |
HDB31,HZB31 |
7 | ||
| 63251D - STRENGTH, ROOF PANEL, CENTER NO.1 | ||||
| 63251-90B03 |
BB21,23,24,HDB3#,HZB3#..HRF W/TV & VIDEO |
1 | ||
| 63251-90B03 |
HDB3#,HZB3# RENTAL CAR PACKAGE |
1 | ||
| 63251-90B01 |
BB2#,3#,HDB3#,HZB3#,RB20..HRF |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63252G - STRENGTH, ROOF PANEL, CENTER NO.2 | ||||
| 63252-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63253H - STRENGTH, ROOF PANEL, CENTER NO.3 | ||||
| 63253-90B02 |
HDB31..EX |
1 | ||
| 63256E - STRENGTH, ROOF PANEL, CENTER NO.6 | ||||
| 63256-90B01 |
HDB31,HZB31..EX |
2 | ||
| 63257D - STRENGTH, ROOF PANEL, CENTER NO.7 RH | ||||
| 63257-90B02 |
HDB31,HZB31..EX |
1 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
2 | ||
| 63258F - STRENGTH, ROOF PANEL, CENTER NO.8 | ||||
| 63258-90B01 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
2 | ||
| 63259E - STRENGTH, ROOF PANEL, CENTER NO.9 | ||||
| 63259-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63262-90B00 |
HDB31,HZB31..EX |
1 | ||
| 63262C - STRENGTH, ROOF PANEL, CENTER NO.2 LH | ||||
| 63262-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 |
1 | ||
| 63262-90B00 |
HDB31,HZB31..EX |
1 | ||
| 63264C - STRENGTH, ROOF PANEL, CENTER NO.4 LH | ||||
| 63264-90B00 |
HDB31,HZB31..EX |
1 | ||
| 63271C - STRENGTH, ROOF PANEL, NO.1 RH | ||||
| 63021-90B00 |
BB21,26,HZB30..HRF..WC |
1 | ||
| 63271-90B02 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63272A - STRENGTH, ROOF PANEL, NO.2 RH | ||||
| 63272-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63273H - STRENGTH, ROOF PANEL, NO.3 | ||||
| 63273-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63274B - STRENGTH, ROOF PANEL, NO.4 RH | ||||
| 63274-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63275B - STRENGTH, ROOF PANEL, NO.5 | ||||
| 63275-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63276B - STRENGTH, ROOF PANEL, NO.6 RH | ||||
| 63276-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63277F - STRENGTH, ROOF PANEL, NO.7 RH | ||||
| 63277-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63279E - STRENGTH, ROOF PANEL, NO.9 RH | ||||
| 63279-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63281E - STRENGTH, ROOF PANEL, NO.1 LH | ||||
| 63281-90B02 |
BB2#,HDB20,3#,HZB3#,RB20..HRF..WC |
1 | ||
| 63282E - STRENGTH, ROOF PANEL, NO.2 LH | ||||
| 63282-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63284B - STRENGTH, ROOF PANEL, NO.4 LH | ||||
| 63284-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63286D - STRENGTH, ROOF PANEL, NO.6 LH | ||||
| 63286-90B01 |
BB31,HDB3#,HZB3#..HRF |
1 | ||
| 63287C - STRENGTH, ROOF PANEL, NO.7 LH | ||||
| 63287-90B01 |
HDB3#,HZB3#..WC |
1 | ||
| 63289A - STRENGTH, ROOF PANEL, NO.9 LH | ||||
| 63289-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63293C - STRENGTH, ROOF PANEL, NO.11 RH | ||||
| 63293-90B03 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63294C - STRENGTH, ROOF PANEL, NO.11 LH | ||||
| 63294-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63295C - STRENGTH, ROOF PANEL, NO.12 RH | ||||
| 63295-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63296C - STRENGTH, ROOF PANEL, NO.12 LH | ||||
| 63296-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B00 |
HDB30,HZB30,31..WC W/BAGGAGE RACK |
5 | ||
| 63427-90B00 |
HDB31..EX W/BAGGAGE RACK |
5 | ||
| 63427A - BRACKET, ROOM RACK FLAME | ||||
| 63427-90B00 |
HDB30,HZB30,31..WC W/BAGGAGE RACK |
5 | ||
| 63427-90B00 |
HDB31..EX W/BAGGAGE RACK |
5 | ||
| 63702 - BRACKET SUB-ASSY, ROOF LINING REAR | ||||
| 63702-90B02 |
BB24,HDB20,3#,HZB3#..WC |
1 | ||
| 63712-90B02 |
BB21,23,26,RB20..HRF..WC |
1 | ||
| 63711 - BRACKET, ROOF LINING, FRONT RH | ||||
| 63711-90B05 |
HDB3#,HZB3# RENTAL CAR PACKEGE |
1 | ||
| 63711-90B02 |
BB2#,3#,HDB3#,HZB3#,RB20..HRF |
1 | ||
| 63711-90B05 |
BB21,23,24,HDB3#,HZB3#..HRF..WC W/TV & VIDEO |
1 | ||
| 63721A - BRACKET, ROOF LINING, FRONT LH | ||||
| 63721-90B02 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91661-60616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
