HDB31-MGZRX (1990)
Toyota Coaster
Production
Jan 1990
-
Jan 1993
Engine
1HDT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

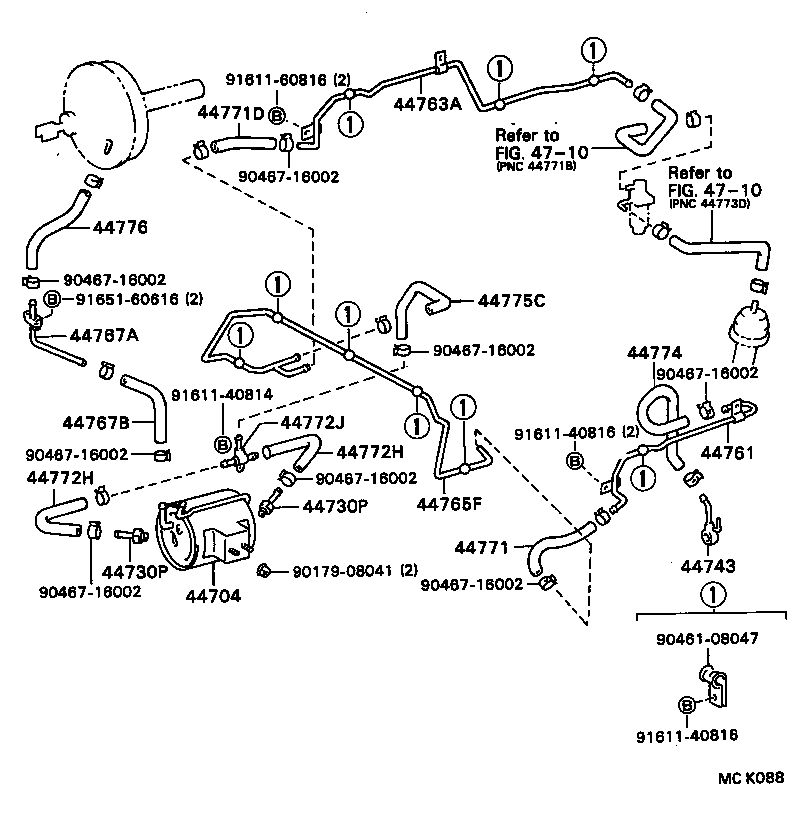

ILLUST NO. 2 OF 2(9001- )BB2#,31..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36240 |
HDB3#,HZB3#..5F |
1 | ||
| 44704-36181 |
BB2#,31..5F |
1 | ||
| 44704-36120 |
BB2#,3# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#,30,31..WC |
1 | ||
| 90405-09142 |
HDB20,3#,HZB3# |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36020 |
BB2#,3#,HB31,32..CBU |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95445-09480 |
HDB3#,HZB3#..5F |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
BB2#,31 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
BB2#,31 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-09033 |
BB2#,31 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB20,21,26,3#..CBU |
1 | ||
| 44774-36210 |
HDB20,3#,HZB3# |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-36020 |
BB2#,31 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB21,26,RB2#..CBU |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90467-16002 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 4710 | ||||
ILLUST NO. 2 OF 2(9001- )HDB20,3#,HZB3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-36240 |
HDB3#,HZB3#..5F |
1 | ||
| 44704-36181 |
BB2#,31..5F |
1 | ||
| 44704-36120 |
BB2#,3# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60040 |
BB2#,3#,HB3#,HDB20,3#,HZB3# |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09049 |
BB2#,30,31..WC |
1 | ||
| 90405-09142 |
HDB20,3#,HZB3# |
1 | ||
| 44762G - TUBE, VACUUM CHECK VALVE TO CONNECTOR | ||||
| 44762-36070 |
BB20,21,26,3#..CBU W/EXHAUST BRAKE |
1 | ||
| 44762-36110 |
HDB20,3#,HZB3# |
1 | ||
| 44762-36050 |
BB20,21,26,3#..CBU |
1 | ||
| 44767A - TUBE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44767-36020 |
BB2#,3#,HB31,32..CBU |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 95445-09480 |
HDB3#,HZB3#..5F |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
BB2#,31 |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-36040 |
BB2#,31 |
1 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-09033 |
BB2#,31 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-36040 |
BB20,21,26,3#..CBU |
1 | ||
| 44774-36210 |
HDB20,3#,HZB3# |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-36010 |
BB21,26,RB2#..CBU |
1 | ||
| Common parts | ||||
| 90179-08041 | ||||
| 90461-08047 | ||||
| 90461-10754 | ||||
| 90462-12042 | ||||
| 90467-16002 | ||||
| 90949-01642 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-60616 | ||||
