HDB31-MGZRX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

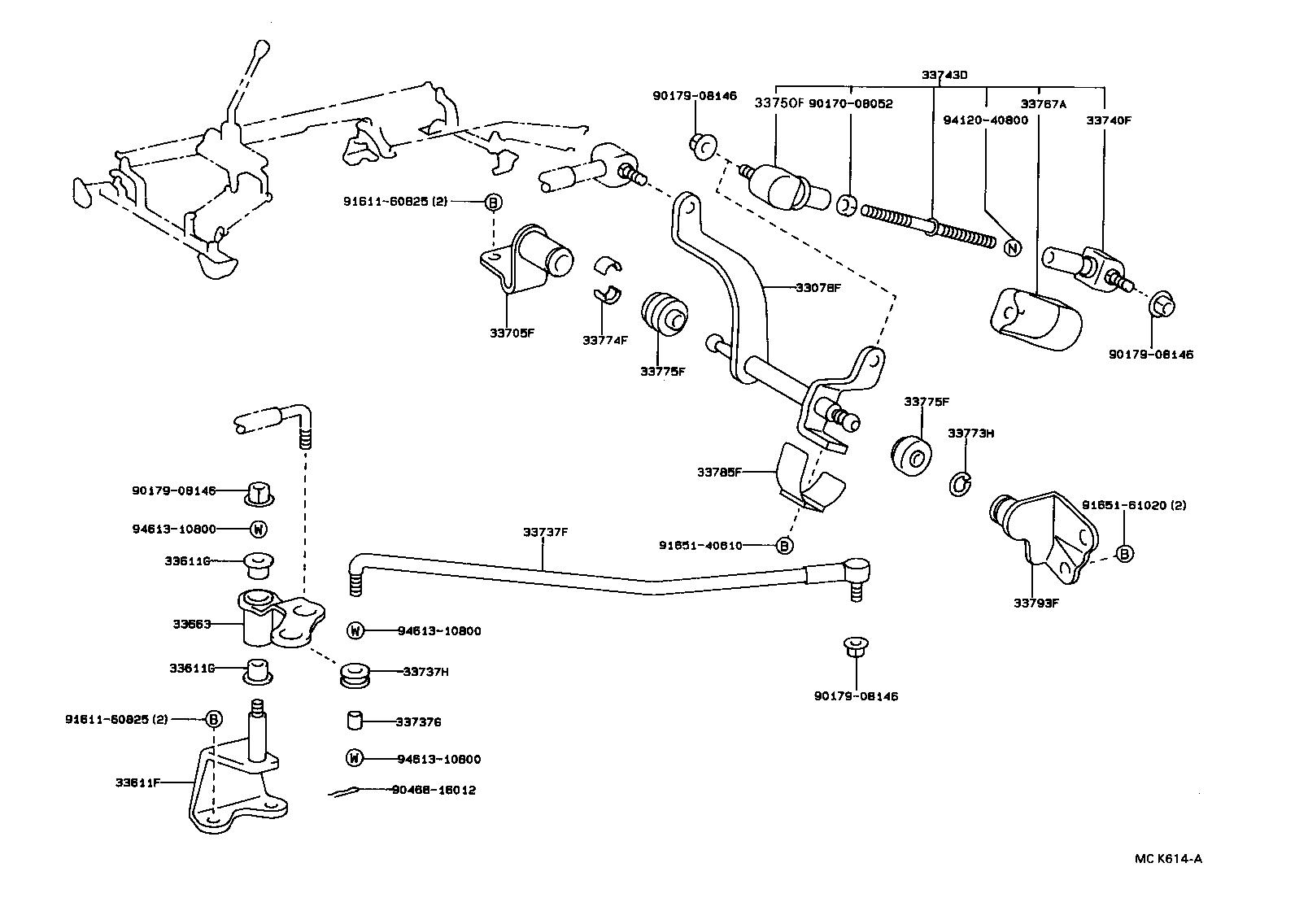

ILLUST NO. 3 OF 3(9001- )HDB3#,HZB3#..5F

Click highlighted areas on diagram

diagram 33078F 33611F 33611G 33611G 33663 33705F 33737F 33737G 33737H 33740F 33743D 33750F 33767A 33773H 33774F 33775F 33775F 33785F 33793F 9017008052 9017908146 9017908146 9017908146 9017908146 9046816012 9161160825 9161160825 9165140610 9165161020 9412040800 9461310800 9461310800 9461310800
Part # Description Qty Price
33078F - SHAFT SUB-ASSY, CROSS, NO.2(FOR FLOOR SHIFT)
33078-36140

BB2#,3#

 1
33078-36251

HDB3#,HZB3#..5F

 1
33611F - SUPPORT, CONTROL SELECT LEVER (FOR FLOOR SHIFT)
33611-36100

BB2#,3#,HB3#,RB2#..5F

 1
33611-36120

HDB3#,HZB3#..5F

 1
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 2
33611G - BUSH (FOR CONTROL SELECT LEVER SUPPORT)
90386-13007

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 2
33663 - LEVER, CONTROL
33663-36060

BB2#,3#,RB2#

 1
33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT)
33705-36230

BB2#,3#

 1
33737F - ROD, GEAR SELECTING, NO.3 (FOR FLOOR SHIFT)
33850-36110

BB2#,3#

 1
33850-36122

HDB3#,HZB3#..5F

 1
33737G - BUSH (FOR GEAR SELECTING ROD NO.3)
90389-08005

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
33737H - GROMMET (FOR GEAR SELECTING ROD NO.3)
90480-17014

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT)
33740-35011

BB2#,3#,HB3#,RB2#

 3
33743D - ROD, GEAR SHIFTING, NO.3 (FOR FLOOR SHIFT)
33840-36240

BB2#,3#,HB3#

 1
33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT)
33750-35011

BB2#,3#,HB3#,RB2#

 3
33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
33774F - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT)
33772-20010

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 4
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20040

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

RH

 1
33775-20020

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

LH

 1
33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT)
33775-20040

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

RH

 1
33775-20020

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

LH

 1
33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF
33785-36050

HDB3#,HZB3#..5F

 1
33793F - BRACKET, CROSS SHAFT, NO.2(FOR FLOOR SHIFT)
33793-36080

BB2#,3#

 1
Common parts
90170-08052
90179-08146
90468-16012
91611-60825
91651-40610
91651-61020
94120-40800
94613-10800
