HDB31-MGZRX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

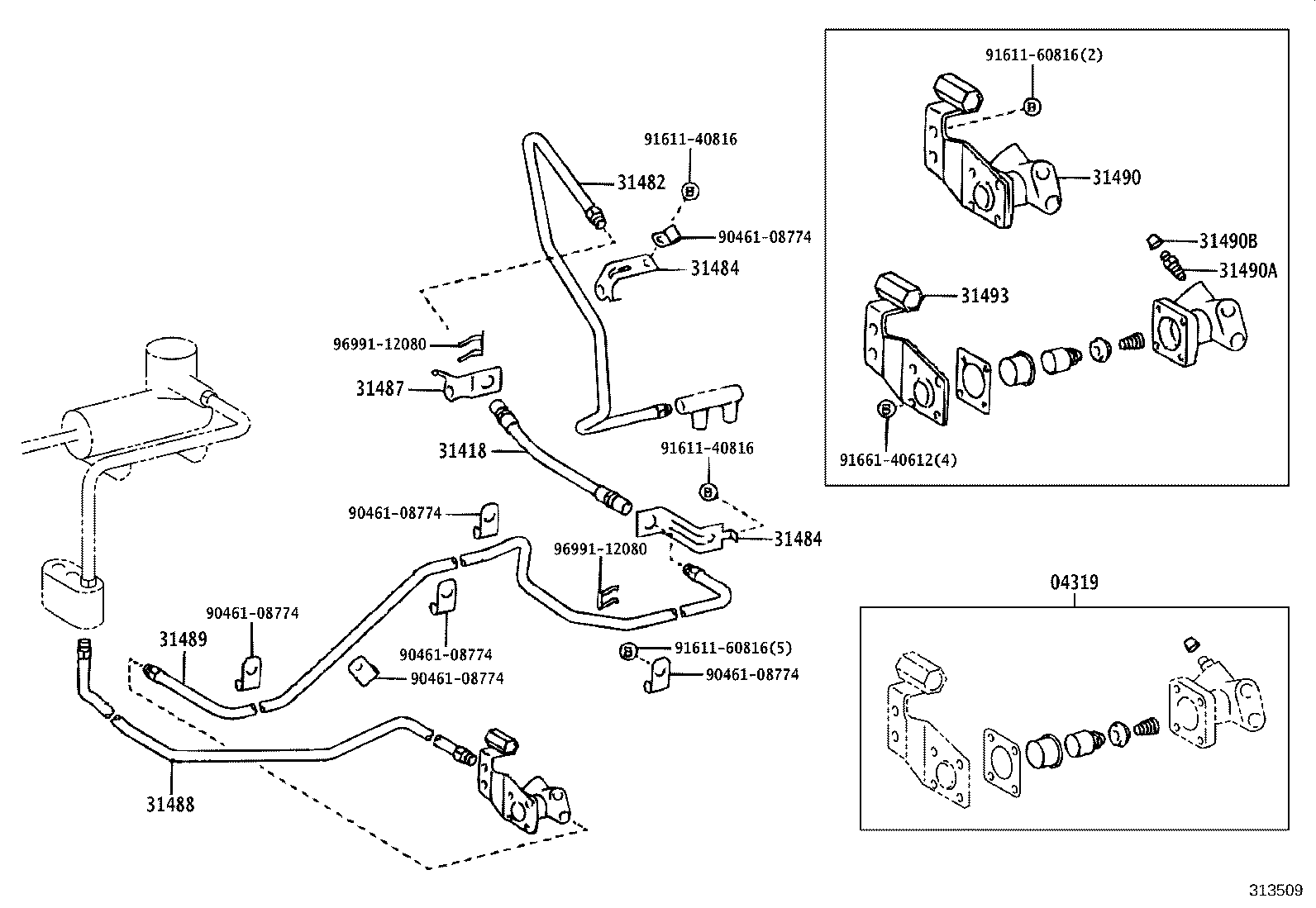

ILLUST NO. 2 OF 2(9001- )HDB3#,HZB3#

Click highlighted areas on diagram

diagram 04319 31418 31482 31484 31484 31487 31488 31489 31490 31490A 31490B 31493 9046108774 9046108774 9046108774 9046108774 9046108774 9046108774 9161140816 9161140816 9161160816 9161160816 9166140612 9699112080 9699112080
Part # Description Qty Price
04319 - CUP KIT, CLUTCH ACCUMULATOR
04319-36020

BB2#,31,HDB3#,HZB3#..5F

 1
31418 - HOSE, CLUTCH
31418-36010

BB2#,3#

 1
96818-50305

HDB3#,HZB3#..5F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-36120

BB2#,3#

 1
31482-36201

HDB3#,HZB3#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36180

HDB3#,HZB3#..5F

 1
31484-36050

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-36180

HDB3#,HZB3#..5F

 1
31484-36050

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
31487 - PLATE, RELEASE TUBE SET
31487-36170

HDB3#,HZB3#..5F

 1
31487-36100

BB2#,3#..5F

 1
31488 - TUBE, CONNECTOR TO TUBE CONNECTOR
31488-36301

BB21,23,24,31,HDB3#,HZB3#..5F

 1
31488-36140

BB2#,3#,HB30,36,RB2#..5F

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-36120

BB2#,3#,HB3#,RB2#

 1
31489-36170

BB21,23,24,31..5F

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-36020

BB2#,31,HDB3#,HZB3#..5F

 1
31490A - PLUG, BLEEDER(FOR CLUTCH ACCUMULATOR)
47547-12010

BB2#,31,HDB3#,HZB3#..5F

 1
31490B - CAP, BLEEDER PLUG(FOR CLUTCH ACCUMULATOR)
31478-30010

BB2#,31,HDB3#,HZB3#..5F

 1
31493 - BRACKET, CLUTCH ACCUMULATOR
31493-36020

BB2#,31,HDB3#,HZB3#..5F

 1
Common parts
90461-08774
91611-40816
91611-60816
91661-40612
96991-12080
