HDB31-MGZRX (1990)
Toyota Coaster

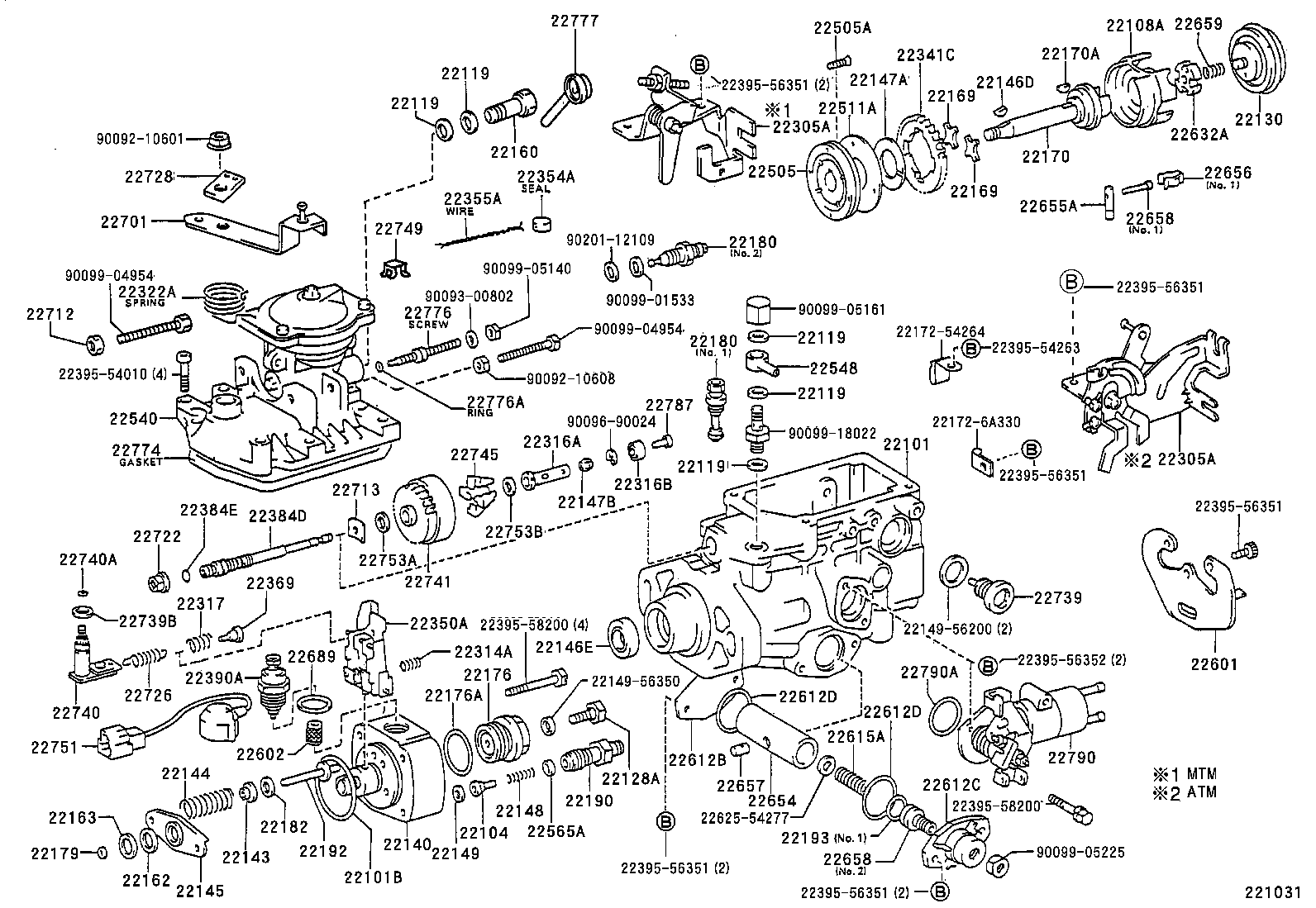

ILLUST NO. 1 OF 2(9001- )1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-6A440 |
1HDT..HDB20,3# |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17140 |
1HDT..HDB20,3# |
6 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-17140 |
1HDT..HDB20,3# |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1H#..HDB20,3#,HZB3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1H#..HDB20,3#,HZB3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1H#..HDB20,3#,HZB3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1H#..HDB20,3#,HZB3# |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1H#..HDB20,3#,HZB3# |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54580 |
1HDT..HDB20,3# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-17140 |
1HDT..HDB20,3# |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-17140 |
1HDT..HDB20,3# |
1 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17140 |
1HDT..HDB20,3# |
2 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-17140 |
1HDT..HDB20,3# |
6 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-96300 |
1HDT..HDB20,3# |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-17140 |
1H#..HDB20,3#,HZB30 厚さ=1.95,T=1.95 |
1 | ||
| 22179-17145 |
1H#..HDB20,3#,HZB30 厚さ=2.45,T=2.45 |
1 | ||
| 22179-17144 |
1H#..HDB20,3#,HZB30 厚さ=2.35,T=2.35 |
1 | ||
| 22179-17141 |
1H#..HDB20,3#,HZB30 厚さ=2.05,T=2.05 |
1 | ||
| 22179-17151 |
1H#..HDB20,3#,HZB30 厚さ=2.99,T=2.99 |
1 | ||
| 22179-17152 |
1H#..HDB20,3#,HZB30 厚さ=3.04,T=3.04 |
1 | ||
| 22179-17142 |
1H#..HDB20,3#,HZB30 厚さ=2.15,T=2.15 |
1 | ||
| 22179-17146 |
1H#..HDB20,3#,HZB30 厚さ=2.55,T=2.55 |
1 | ||
| 22179-17143 |
1H#..HDB20,3#,HZB30 厚さ=2.25,T=2.25 |
1 | ||
| 22179-17148 |
1H#..HDB20,3#,HZB30 厚さ=2.75,T=2.75 |
1 | ||
| 22179-17150 |
1H#..HDB20,3#,HZB30 厚さ=2.94,T=2.94 |
1 | ||
| 22179-17147 |
1H#..HDB20,3#,HZB30 厚さ=2.65,T=2.65 |
1 | ||
| 22179-17154 |
1H#..HDB20,3#,HZB30 厚さ=3.14,T=3.14 |
1 | ||
| 22179-17153 |
1H#..HDB20,3#,HZB30 厚さ=3.09,T=3.09 |
1 | ||
| 22179-17149 |
1H#..HDB20,3#,HZB30 厚さ=2.85,T=2.85 |
1 | ||
| 22179-17155 |
1H#..HDB20,3#,HZB30 厚さ=3.19,T=3.19 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-17140 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-17140 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-17140 |
1HDT..HDB20,3# |
6 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-54561 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22193-64750 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17140 |
1HDT..HDB3#..5F |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17140 |
1HDT..HDB3#..5F |
1 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-17142 |
1HDT..HDB3#..5F 内径=0.70,ID=0.70 |
1 | ||
| 22316-17141 |
1HDT..HDB3#..5F 内径=0.65,ID=0.65 |
1 | ||
| 22316-17140 |
1HDT..HDB3#..5F 内径=0.60,ID=0.60 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54730 |
1HDT..HDB20,3# |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
1H#..HDB3#,HZB3#..5F |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-17270 |
1HDT..HDB20,3# |
1 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22540 - COMPENSATOR SUB-ASSY, BOOST | ||||
| 22540-17270 |
1HDT..HDB3#..5F |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17140 |
1HDT..HDB20,3# |
1 | ||
| 22565A - SEAT, SNUBBER VALVE | ||||
| 22565-17140 |
1HDT..HDB20,3# |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-17140 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17140 |
1HDT..HDB20,3# |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1H#..HDB20,3#,HZB3# |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1H#..HDB20,3#,HZB3# |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17142 |
1HDT..HDB20,3# ﾊﾞﾈ定数ORｺｲﾙ巻数=1.60,K=1.60 |
1 | ||
| 22615-17144 |
1HDT..HDB20,3# ﾊﾞﾈ定数ORｺｲﾙ巻数=1.95,K=1.95 |
1 | ||
| 22615-17141 |
1HDT..HDB20,3# ﾊﾞﾈ定数ORｺｲﾙ巻数=1.45,K=1.45 |
1 | ||
| 22615-17140 |
1HDT..HDB20,3# ﾊﾞﾈ定数ORｺｲﾙ巻数=1.30,K=1.30 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22662-17140 |
1HDT..HDB20,3# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22656-54490 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17011 |
1H#..HDB3#,HZB3#..5F MARK"384" |
1 | ||
| 22701-17010 |
1H#..HDB3#,HZB3#..5F MARK"383" |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-18010 |
1HDT..HDB20,3# |
1 | ||
| 22726-17140 |
1HDT..HDB20,3# |
1 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22378-64010 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58480 |
1HDT..HDB20,3# |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1HDT..HDB20,3# |
1 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-17250 |
1HDT..HDB3#..5F |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-18010 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1HDT..HDB20,3# |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54261 |
1HDT..HDB20,3# |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-17141 |
1HDT..HDB3#..5F |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
1HDT..HDB20,3# |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22149-56350 | ||||
| 22172-54264 | ||||
| 22172-6A330 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-54277 | ||||
| 90092-10601 | ||||
| 90092-10608 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-01533 | ||||
| 90099-04954 | ||||
| 90099-05140 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90201-12109 | ||||

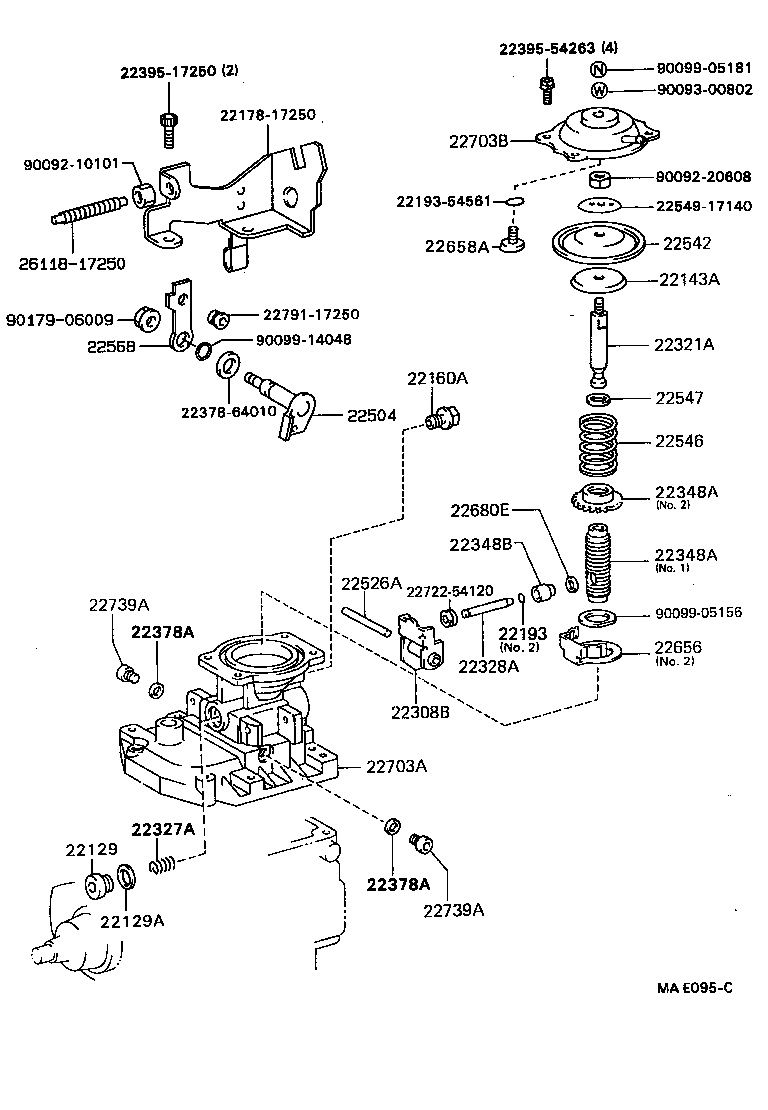

ILLUST NO. 2 OF 2(9001- )1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
1HDT..HDB20,3# |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 90201-12109 |
1HDT..HDB20,3# |
1 | ||
| 22143A - SEAT, SPRING UPPER, NO.2 | ||||
| 22143-54260 |
1HDT..HDB20,3# |
1 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-54262 |
1HDT..HDB20,3# |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-54561 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22193-64750 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-54140 |
1HDT..HDB20,3# |
1 | ||
| 22321A - ROD, PUSH | ||||
| 22321-17140 |
1HDT..HDB20,3# |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-55030 |
1HDT..HDB20,3# |
1 | ||
| 22328A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
1HDT..HDB20,3# |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22348-64360 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22348-64360 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
1HDT..HDB20,3# |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-76010 |
1HDT..HDB20,3# |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-76010 |
1HDT..HDB20,3# |
1 | ||
| 22504 - SHAFT SUB-ASSY, ADJUSTING LEVER | ||||
| 22504-17250 |
1HDT..HDB3#..5F |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
1HDT..HDB20,3# |
1 | ||
| 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) | ||||
| 22542-54260 |
1HDT..HDB20,3# |
1 | ||
| 22546 - SPRING, BOOST COMPENSATOR | ||||
| 22546-54490 |
1HDT..HDB20,3# ﾊﾞﾈ定数=2.10,長さ=20.3,K=2.10 |
1 | ||
| 22546-54261 |
1HDT..HDB3#..5F ﾊﾞﾈ定数=1.80,長さ=19.8,K=1.80 |
1 | ||
| 22546-5B013 |
1HDT..HDB3#..5F ﾊﾞﾈ定数=2.50,長さ=19.4 |
1 | ||
| 22546-54491 |
1HDT..HDB20,3# ﾊﾞﾈ定数=2.30,長さ=19.7,K=3.40 |
1 | ||
| 22547 - SHIM, BOOST COMPENSATOR | ||||
| 22547-54261 |
1HDT..HDB20,3# 厚さ=2.1,T=2.1 |
1 | ||
| 22547-54262 |
1HDT..HDB20,3# 厚さ=2.3,T=2.3 |
1 | ||
| 22547-54265 |
1HDT..HDB20,3# 厚さ=1.3,T=1.3 |
1 | ||
| 22547-54490 |
1HDT..HDB20,3# 厚さ=1.1,T=1.1 |
1 | ||
| 22547-54264 |
1HDT..HDB20,3# 厚さ=2.7,T=2.7 |
1 | ||
| 22547-64360 |
1HDT..HDB20,3# 厚さ=3.1,T=3.1 |
1 | ||
| 22547-54268 |
1HDT..HDB20,3# 厚さ=2.9,T=2.9 |
1 | ||
| 22547-54266 |
1HDT..HDB20,3# 厚さ=1.5,T=1.5 |
1 | ||
| 22547-54267 |
1HDT..HDB20,3# 厚さ=1.7,T=1.7 |
1 | ||
| 22547-54263 |
1HDT..HDB20,3# 厚さ=2.5,T=2.5 |
1 | ||
| 22547-54260 |
1HDT..HDB20,3# 厚さ=1.9,T=1.9 |
1 | ||
| 22547-64361 |
1HDT..HDB20,3# 厚さ=3.3,T=3.3 |
1 | ||
| 22568 - LEVER, THROTTLE | ||||
| 22568-17250 |
1HDT..HDB3#..5F |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1HDT..HDB20,3# NO.1 |
1 | ||
| 22656-54490 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 22658A - STOPPER, TIMER SLIDE | ||||
| 22658-64518 |
1HDT..HDB20,3# |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
1HDT..HDB20,3# |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-17250 |
1HDT..HDB3#..5F |
1 | ||
| 22703B - COVER, GOVERNOR | ||||
| 22703-17140 |
1HDT..HDB20,3# |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HDT..HDB20,3# |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
1HDT..HDB20,3# |
2 | ||
| Common parts | ||||
| 22178-17250 | ||||
| 22193-54561 | ||||
| 22378-64010 | ||||
| 22395-17250 | ||||
| 22395-54263 | ||||
| 22549-17140 | ||||
| 22722-54120 | ||||
| 22791-17250 | ||||
| 26118-17250 | ||||
| 90092-10101 | ||||
| 90092-20608 | ||||
| 90093-00802 | ||||
| 90099-05156 | ||||
| 90099-05181 | ||||
| 90099-14048 | ||||
| 90179-06009 | ||||
