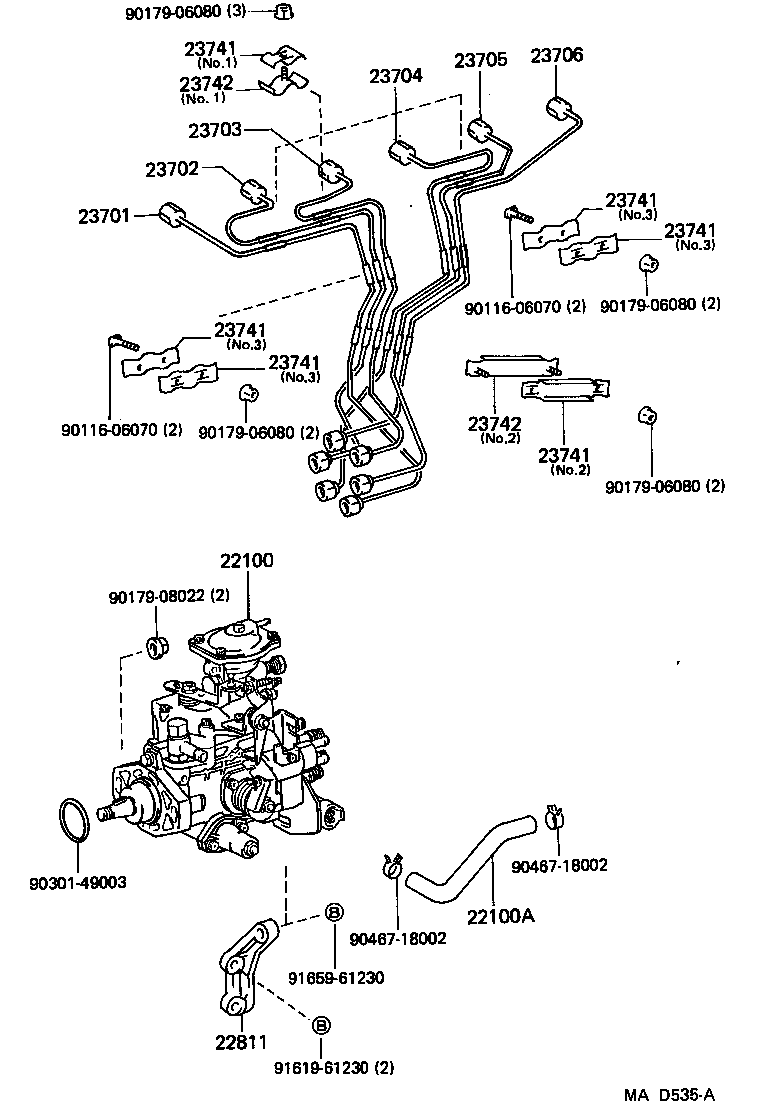

Toyota Coaster HDB31 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-17270	1HDT..HDB3#..5F	01/1990 - 01/1993	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-12026	1HDT..HDB20,3# *H,L=260,内径=12	01/1990 - 02/1991	1
95332-12028	1HDT..HDB20,3# *H,L=280,内径=12	02/1991 - 01/1993	1
22811 - STAY, INJECTION PUMP, NO.1
22811-17010	1H#..HDB20,3#,HZB3#	01/1990 - 01/1993	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17020	1HDT..HDB20,3#	01/1990 - 01/1993	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23741-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23741-17030	1H#..HDB20,3#,HZB3# NO.3	01/1990 - 01/1993	4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23742-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020	1H#..HDB20,3#,HZB3# NO.2	01/1990 - 01/1993	1
23742-17010	1H#..HDB20,3#,HZB3# NO.1	01/1990 - 01/1993	3
Common parts
90116-06070
90179-06080
90179-08022
90301-49003
90467-18002
91619-61230
91659-61230

HDB31-MGZRX (1990)

(9001-9301)1HDT
