HDB31-MGZRX (1990)
Toyota Coaster

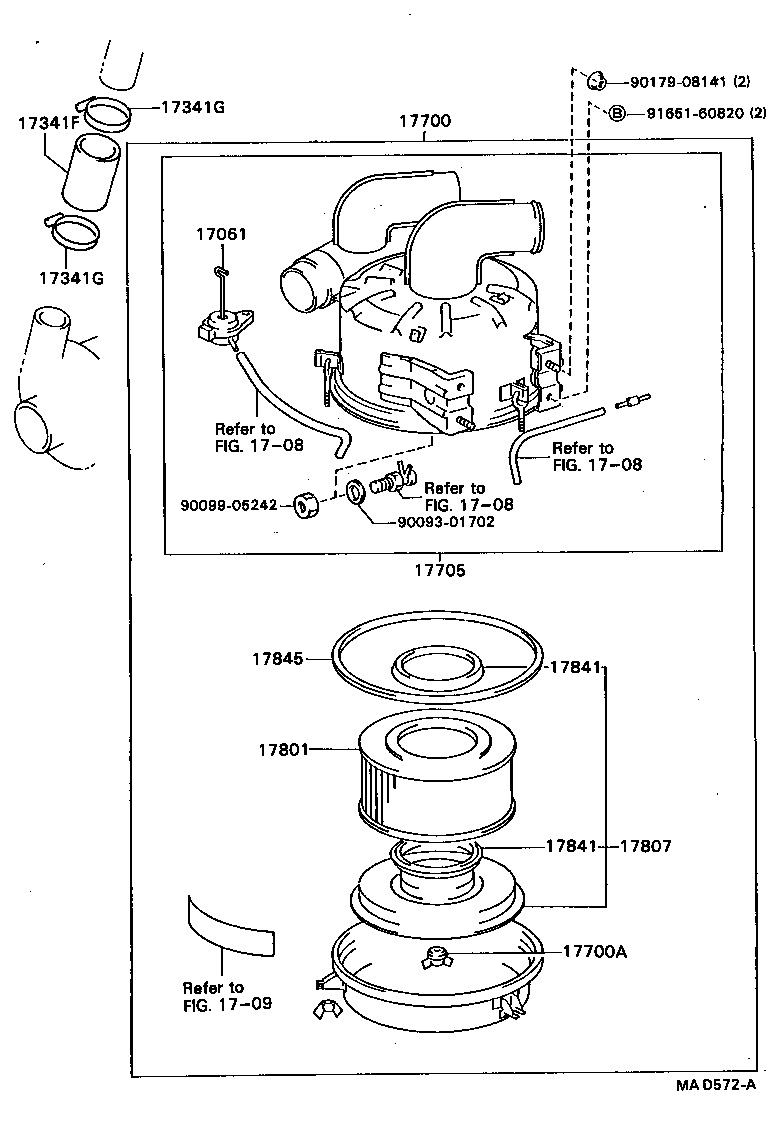

ILLUST NO. 1 OF 2(9001- )1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-17010 |
1H#..HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-17010 |
1HDT..HDB20,3# |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65004 |
1HDT..HDB20,3# |
2 | ||
| 90467-56001 |
1HDT..HDB20,3# |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-65004 |
1HDT..HDB20,3# |
2 | ||
| 90467-56001 |
1HDT..HDB20,3# |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17080 |
1HDT..HDB20,3# |
1 | ||
| 17700-17120 |
1HDT..HDB20,3# COLD SPEC |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17050 |
1H#..HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 17705-17040 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-68010 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-68020 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
1 | ||
| Common parts | ||||
| 90093-01702 | ||||
| 90099-05242 | ||||
| 90179-08141 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 1709 | ||||

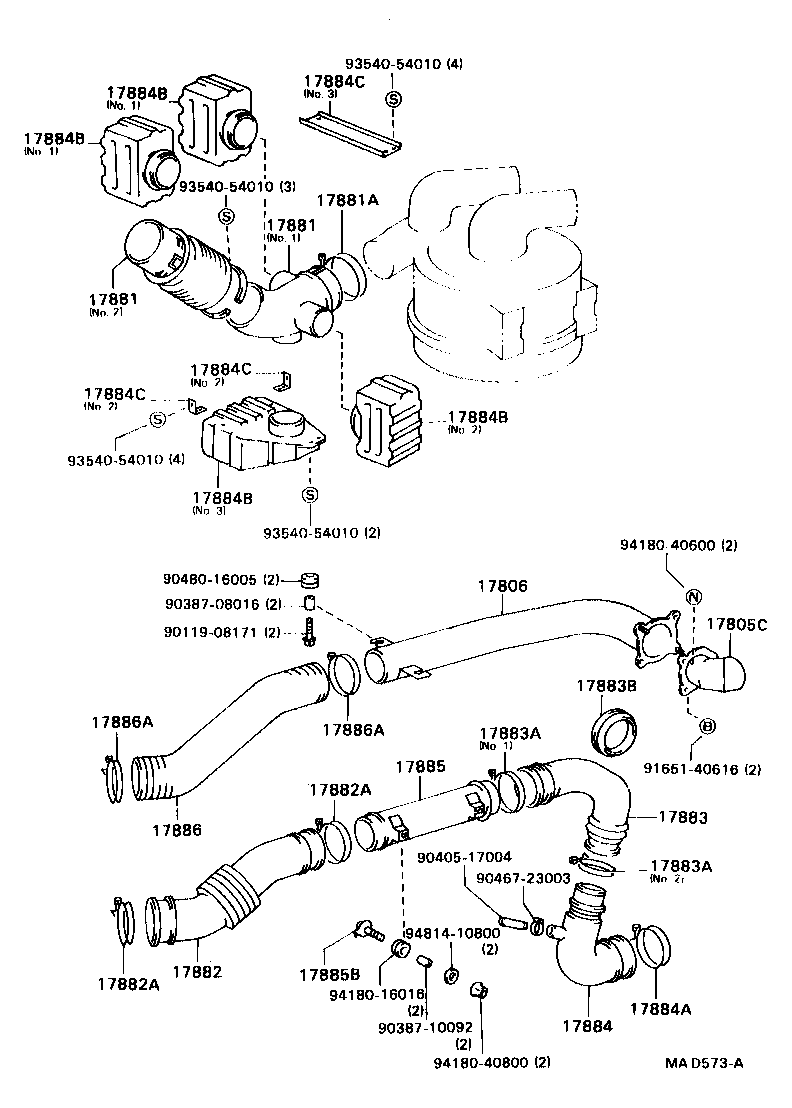

ILLUST NO. 2 OF 2(9001- )1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1 | ||||
| 59106-90B01 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 59105-90B07 |
1H#..HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 59141-90B00 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59131-90B04 |
1H#..HDB20,3#,HZB3# NO.1 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 59141-90B00 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59131-90B04 |
1H#..HDB20,3#,HZB3# NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 59132-90B05 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10950 |
1H#..HDB20,3#,HZB3# |
2 | ||
| 90460-95003 |
1HDT..HDB20,3# COLD SPEC |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10950 |
1H#..HDB20,3#,HZB3# |
2 | ||
| 90460-95003 |
1HDT..HDB20,3# COLD SPEC |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 59133-90B07 |
1HDT..HDB3# |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-88002 |
1HDT..HDB20,3# COLD SPEC,NO.2 |
1 | ||
| 96111-10950 |
1H#..HDB20,3#,HZB3# NO.1 |
1 | ||
| 96111-10850 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 90460-95003 |
1HDT..HDB20,3# COLD SPEC,NO.1 |
1 | ||
| 96111-10880 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-88002 |
1HDT..HDB20,3# COLD SPEC,NO.2 |
1 | ||
| 96111-10950 |
1H#..HDB20,3#,HZB3# NO.1 |
1 | ||
| 96111-10850 |
1HDT..HDB20,3# NO.2 |
1 | ||
| 90460-95003 |
1HDT..HDB20,3# COLD SPEC,NO.1 |
1 | ||
| 96111-10880 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 17883B - GROMMET, AIR CLEANER HOSE | ||||
| 90480-99007 |
1H#..HDB20,3#,HZB3# |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 59140-90B01 |
1HDT..HDB3# |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 59138-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59137-90B03 |
1H#..HDB20,3#,HZB3# NO.1 |
2 | ||
| 59139-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 59138-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59137-90B03 |
1H#..HDB20,3#,HZB3# NO.1 |
2 | ||
| 59139-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 59138-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59137-90B03 |
1H#..HDB20,3#,HZB3# NO.1 |
2 | ||
| 59139-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 17884B - BOX, AIR CLEANER, NO.1 | ||||
| 59138-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
1 | ||
| 59137-90B03 |
1H#..HDB20,3#,HZB3# NO.1 |
2 | ||
| 59139-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 17884C - BAND, AIR CLEANER BOX | ||||
| 53296-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 59136-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
2 | ||
| 17884C - BAND, AIR CLEANER BOX | ||||
| 53296-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 59136-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
2 | ||
| 17884C - BAND, AIR CLEANER BOX | ||||
| 53296-90B00 |
1H#..HDB20,3#,HZB3# NO.3 |
1 | ||
| 59136-90B01 |
1H#..HDB20,3#,HZB3# NO.2 |
2 | ||
| 17885 - PIPE, AIR CLEANER | ||||
| 59101-90B05 |
1H#..HDB20,3#,HZB3# |
1 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90387-08016 | ||||
| 90387-10092 | ||||
| 90405-17004 | ||||
| 90467-23003 | ||||
| 90480-16005 | ||||
| 91651-40616 | ||||
| 93540-54010 | ||||
| 94180-16016 | ||||
| 94180-40600 | ||||
| 94180-40800 | ||||
| 94814-10800 | ||||
