HDB31-MGZRX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

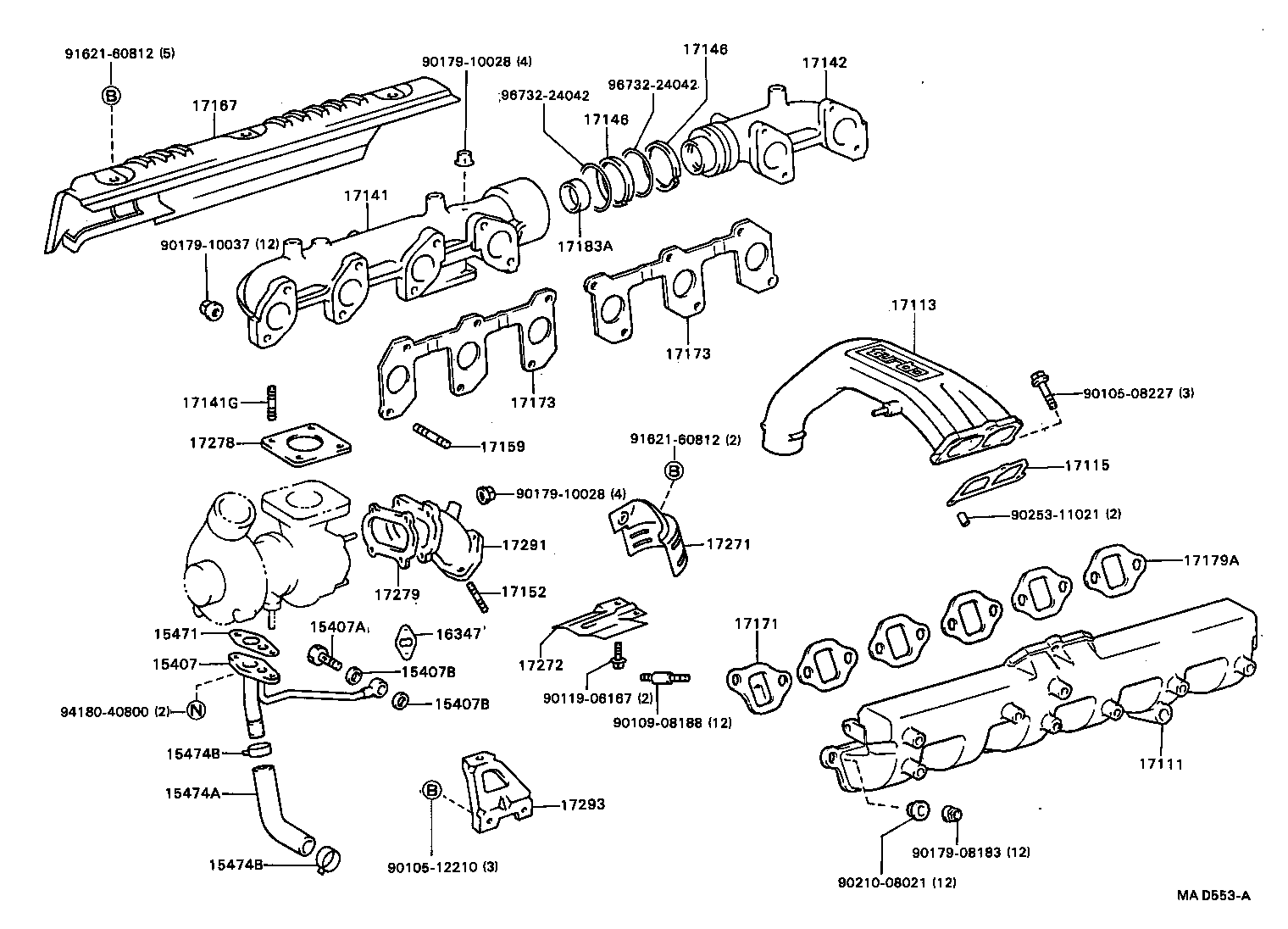

ILLUST NO. 1 OF 2(9001- )1HDT

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15407B 15471 15474A 15474B 15474B 16347 17111 17113 17115 17141 17141G 17142 17146 17146 17152 17159 17167 17171 17173 17173 17179A 17183A 17271 17272 17278 17279 17291 17293 9010508227 9010512210 9010908188 9011906167 9017908183 9017910028 9017910028 9017910037 9021008021 9025311021 9162160812 9162160812 9418040800 9673224042 9673224042
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-17010

1HDT..HDB20,3#

 1
15471 - GASKET, TURBO OIL INLET
15471-58010

1HDT..HDB20,3#

 1
15474A - HOSE, TURBO OIL OUTLET
90910-05206

1HDT..HDB20,3#

 1
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26001

1HDT..HDB20,3#

 2
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26001

1HDT..HDB20,3#

 2
16347 - GASKET, WATER BY-PASS
16347-42020

1HDT..HDB20,3#

 1
17111 - MANIFOLD, INTAKE
17111-17011

1H#..HDB20,3#,HZB3#

 1
17111-17010

1H#..HDB20,3#,HZB3#

 1
17113 - PIPE, INTAKE
17113-17020

1HDT..HDB20,3#

 1
17115 - GASKET, INTAKE MANIFOLD HOLE COVER
17115-17010

1H#..HDB20,3#,HZB3#

 1
17141 - MANIFOLD, EXHAUST
17141-17020

1HDT..HDB20,3#

 1
17142 - CASE, EXHAUST MANIFOLD, NO.2
17142-17010

1H#..HDB20,3#,HZB3#

 1
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDB20,3#,HZB3#

 2
17146 - RING, EXHAUST MANIFOLD
17151-17010

1H#..HDB20,3#,HZB3#

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10171

1H#..HDB20,3#,HZB3#

EXHAUST MANIFOLD

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-17020

1HDT..HDB20,3#

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-17010

1H#..HDB20,3#,HZB3#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDB20,3#,HZB3#

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-17010

1H#..HDB20,3#,HZB3#

 2
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-17010

1H#..HDB20,3#,HZB3#

 5
17183A - COLLAR, MANIFOLD
17183-17010

1H#..HDB20,3#,HZB3#

 1
17271 - INSULATOR, TURBO, NO.1
17271-17020

1HDT..HDB20,3#

 1
17272 - INSULATOR, TURBO, NO.2
17272-17010

1HDT..HDB20,3#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-88380

1HDT..HDB20,3#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-17010

1HDT..HDB20,3#

 1
17291 - ELBOW, TURBINE OUTLET
17291-17020

1HDT..HDB20,3#

 1
17293 - STAY, TURBOCHARGER
17293-17010

1HDT..HDB20,3#

 1
Common parts
90105-08227
90105-12210
90109-08188
90119-06167
90179-08183
90179-10028
90179-10037
90210-08021
90253-11021
91621-60812
94180-40800
96732-24042

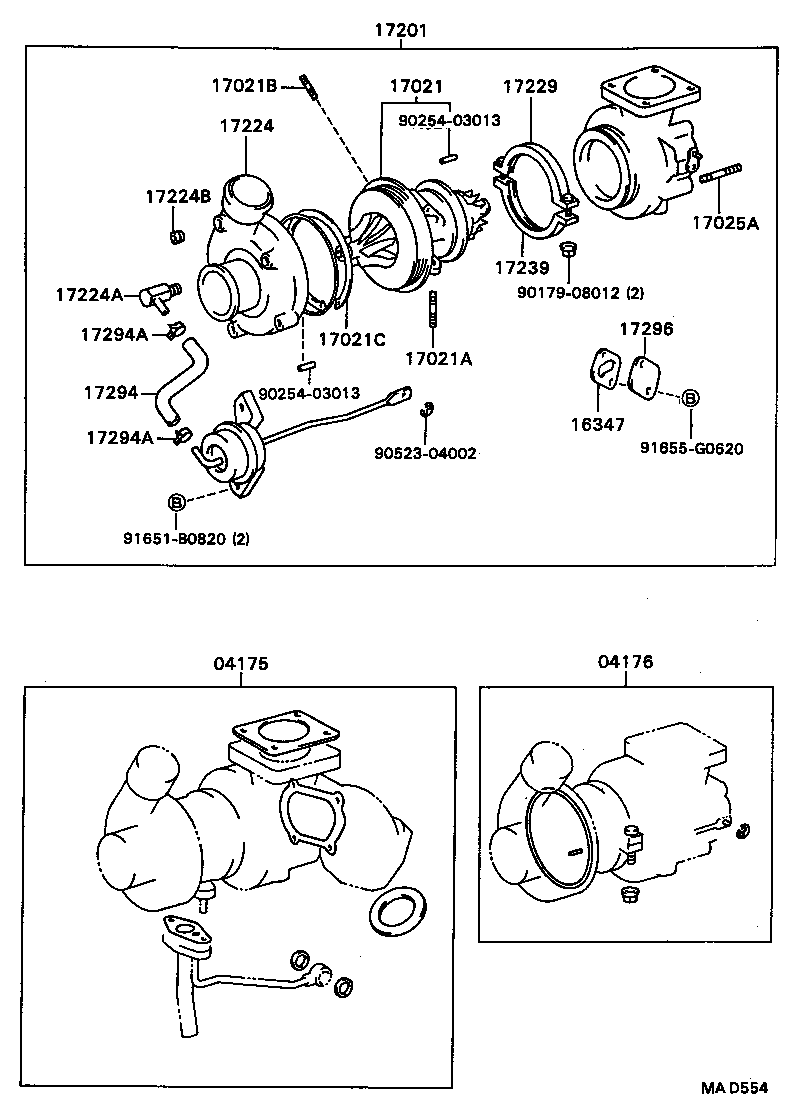

ILLUST NO. 2 OF 2(9001- )1HDT

Click highlighted areas on diagram

diagram 04175 04176 16347 17021 17021A 17021B 17021C 17025A 17201 17224 17224A 17224B 17229 17239 17294 17294A 17294A 17296 9017908012 9025403013 9025403013 9052304002 91651B0820 91655G0620
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-17010

1HDT..HDB20,3#

 1
04176 - SEAL KIT, TURBOCHARGER
04176-58011

1HDT..HDB20,3#

 1
16347 - GASKET, WATER BY-PASS
16347-42020

1HDT..HDB20,3#

 1
17021 - HOUSING SUB-ASSY, BEARING
17021-58010

1HDT..HDB20,3#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-17010

1HDT..HDB20,3#

 1
17294 - HOSE, ACTUATOR
17294-17010

1HDT..HDB20,3#

 1
17296 - PLATE, BEARING HOUSING, SIDE
17296-28010

1HDT..HDB20,3#

 1
Common parts
90179-08012
90254-03013
90523-04002
91651-B0820
91655-G0620
