HDB31-MGZGRX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HDB3#,HZB3#

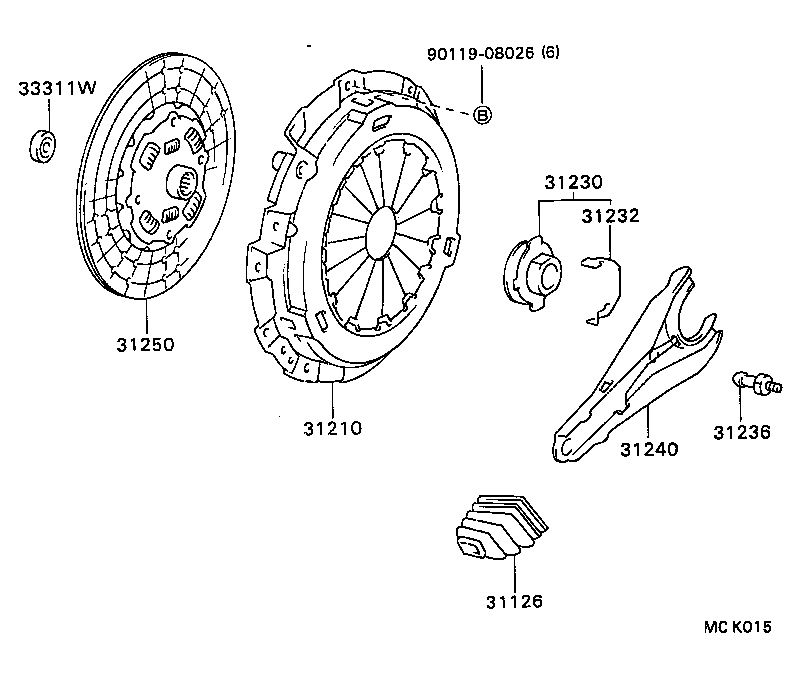

Click highlighted areas on diagram

diagram 31126 31210 31230 31232 31236 31240 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

BB2#,3#,RB2#

 1
31126-60050

HDB3#,HZB3#..5F

 1
31210 - COVER ASSY, CLUTCH
31210-36090

BB2#,3#

 1
31210-36190

HDB3#..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36190

HDB3#,HZB3#..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-36020

HDB3#,HZB3#..5F

 1
31236 - BALL, RELEASE FORK
31236-30040

BB2#,3#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-25010

BB2#,3#

 1
31204-36110

HDB3#,HZB3#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36480

HDB3#,HZB3#..5F

 1
31250-36113

BB2#,3#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BB2#,3#,RB2#..5F

 1
90363-15017

HDB3#,HZB3#..5F

 1
Common parts
90119-08026

(9001- )BB2#,31

Click highlighted areas on diagram

diagram 31126 31210 31230 31232 31236 31240 31250 33311W 9011908134
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20050

BB2#,3#,RB2#

 1
31126-60050

HDB3#,HZB3#..5F

 1
31210 - COVER ASSY, CLUTCH
31210-36090

BB2#,3#

 1
31210-36190

HDB3#..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-36190

HDB3#,HZB3#..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-36020

HDB3#,HZB3#..5F

 1
31236 - BALL, RELEASE FORK
31236-30040

BB2#,3#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-25010

BB2#,3#

 1
31204-36110

HDB3#,HZB3#..5F

 1
31250 - DISC ASSY, CLUTCH
31250-36480

HDB3#,HZB3#..5F

 1
31250-36113

BB2#,3#

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

BB2#,3#,RB2#..5F

 1
90363-15017

HDB3#,HZB3#..5F

 1
Common parts
90119-08134
