HDB31-MGZERX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )HDB20,3#,HZB3#..WC

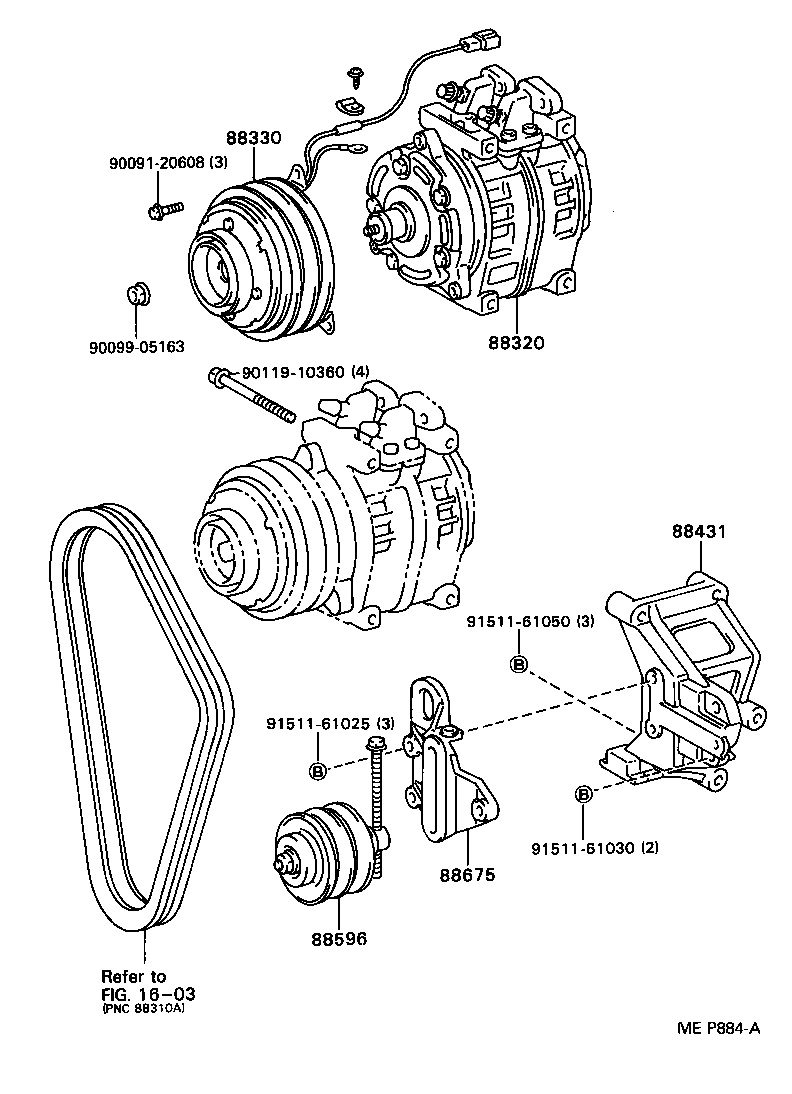

Click highlighted areas on diagram

diagram 1603 88320 88330 88431 88596 88675 9009120608 9009905163 9011910360 9151161025 9151161030 9151161050
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-36050

BB2#,3#,HB30..WC

 1
88320-36320

HDB20,3#

 1
88330 - CLUTCH ASSY, MAGNET
88410-36150

BB2#,3#,HB30..WC

 1
88410-36320

HDB20,3#,HZB3#..WC

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36170

BB2#,3#..WC

 1
88431-36510

HDB20,3#,HZB3#..WC

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-36110

HDB20,3#,HZB3#..WC

 1
88675 - BRACKET, IDLER PULLEY (FOR COOLER)
88444-36150

HDB20,3#,HZB3#..WC

 1
88444-36090

BB2#,30,31..WC

 1
Common parts
90091-20608
90099-05163
90119-10360
91511-61025
91511-61030
91511-61050
Linked diagrams
1603
