HDB31-MGZERX (1990)
Toyota Coaster

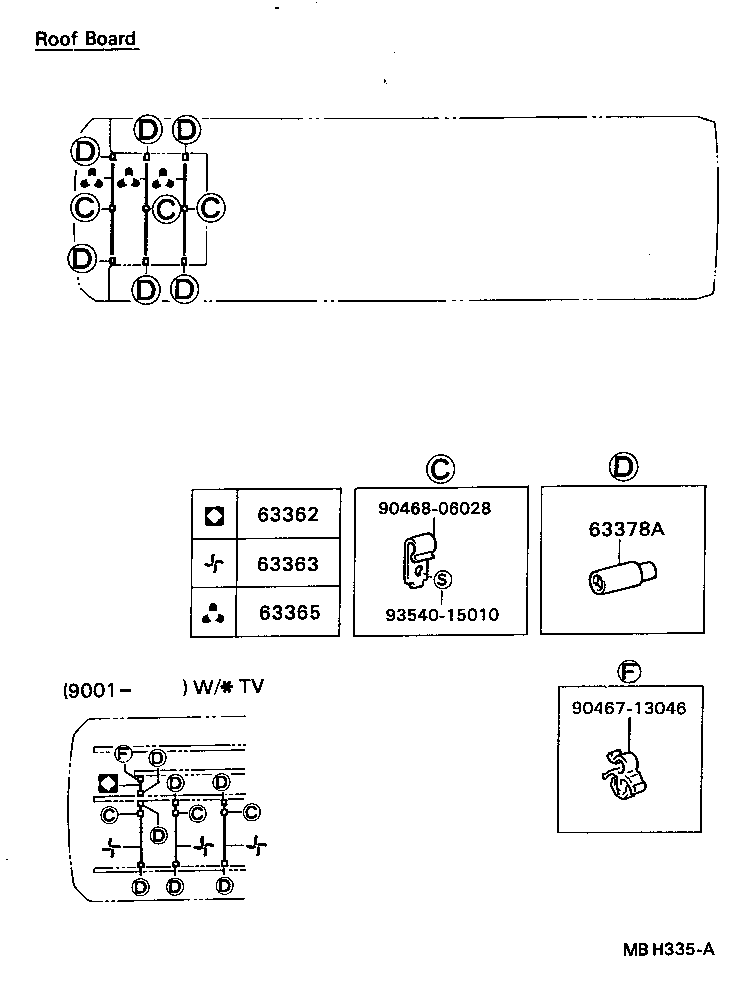

ILLUST NO. 2 OF 4(9001- )BB26,HDB31,HZB36,RB26..10S,20S..WC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63362-90B11 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=340,W/*TV |
1 | ||
| 63362-90B10 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=346,W/*TV |
1 | ||
| 63362-90B09 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=343,W/*TV |
1 | ||
| 63363 - SUPPORT, ROOF HEADLINING, NO.3 | ||||
| 63363-90B06 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=793,W/*TV |
3 | ||
| 63363-90B07 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=796,W/*TV |
3 | ||
| 63363-90B08 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC L=799,W/*TV |
3 | ||
| 63365 - SUPPORT, ROOF HEADLINING, NO.5 | ||||
| 63365-90B01 |
HDB31..20S L=1239 |
3 | ||
| 63365-90B05 |
HDB31..20S L=1236 |
3 | ||
| 63365-90B03 |
HDB31..20S L=1242 |
3 | ||
| 63378A - RETAINER, ROOF HEADLINING SUPPORT, NO.2 | ||||
| 63378-90B00 |
BB30,31,HB3#..WC |
28 | ||
| 63378-90B00 |
HDB31..20S W/*TV |
7 | ||
| 63378-90B00 |
HDB31..20S |
6 | ||
| Common parts | ||||
| 90467-13046 | ||||
| 90468-06028 | ||||
| 93540-15010 | ||||

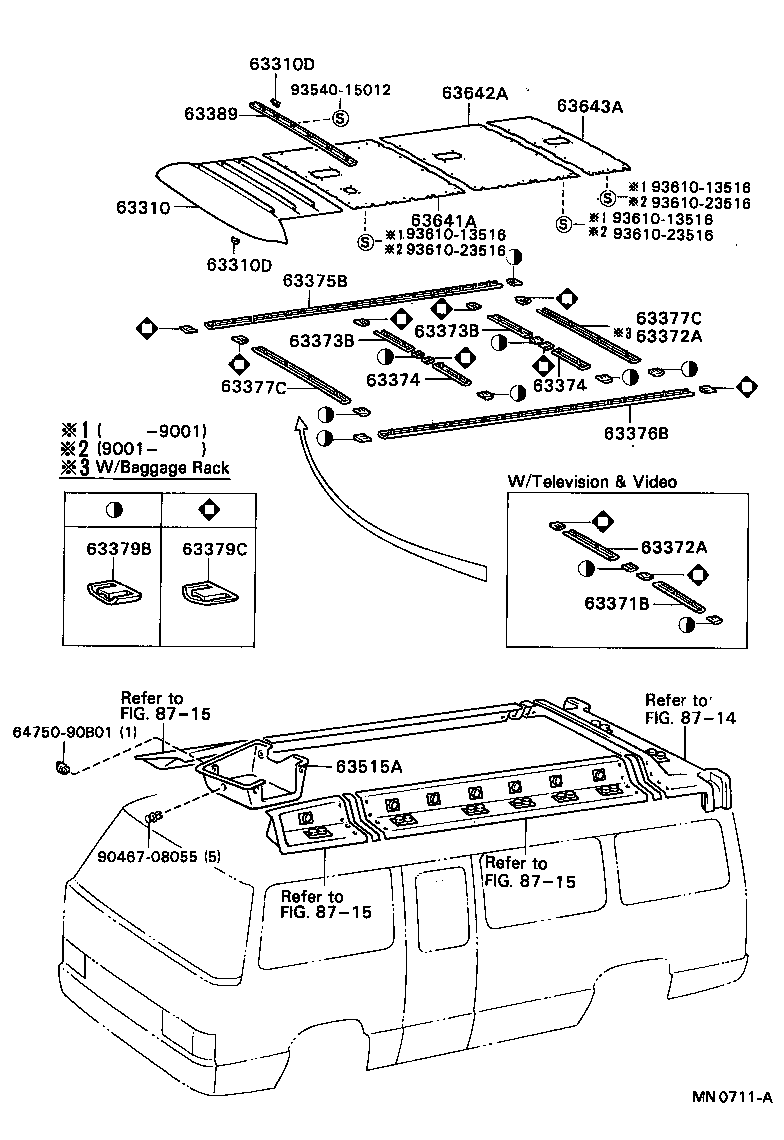

ILLUST NO. 1 OF 4(9001- )HDB31..20S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-90B2408 |
HDB31..20S IVORY,IVORY |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90468-04010 |
BB2#,3#,HB3#,RB2# TYPE A |
1 | ||
| 90468-05085 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# TYPE B |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90468-04010 |
BB2#,3#,HB3#,RB2# TYPE A |
1 | ||
| 90468-05085 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# TYPE B |
1 | ||
| 63371B - MOULDING, ROOF BOARD SET, NO.1 | ||||
| 63371-90B0108 |
HDB31..20S W/*TV,IVORY |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63372-90B0208 |
HDB31..20S W/*TV,IVORY |
1 | ||
| 93372-90B0108 |
HDB31..20S W/BAGGAGE RACK |
1 | ||
| 63372A - MOULDING, ROOF BOARD SET, NO.2 | ||||
| 63372-90B0208 |
HDB31..20S W/*TV,IVORY |
1 | ||
| 93372-90B0108 |
HDB31..20S W/BAGGAGE RACK |
1 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-90B0108 |
HDB31..20S W/BAGGAGE RACK,IVORY |
2 | ||
| 63373-90B0008 |
HDB31..20S IVORY |
2 | ||
| 63373B - MOULDING, ROOF BOARD SET, NO.3 | ||||
| 63373-90B0108 |
HDB31..20S W/BAGGAGE RACK,IVORY |
2 | ||
| 63373-90B0008 |
HDB31..20S IVORY |
2 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-90B0008 |
HDB31..20S IVORY |
2 | ||
| 63374 - MOULDING, ROOF BOARD SET | ||||
| 63374-90B0008 |
HDB31..20S IVORY |
2 | ||
| 63375B - MOULDING, ROOF HEADLING, NO.1 RH | ||||
| 63375-90B0208 |
HDB31..20S IVORY |
1 | ||
| 63376B - MOULDING, ROOF HEADLINIG, NO.1 LH | ||||
| 63376-90B0208 |
HDB31..20S IVORY |
1 | ||
| 63377C - MOULDING, ROOF HEADLINING, NO.2 | ||||
| 63377-90B0208 |
HDB31..20S FRONT,IVORY |
1 | ||
| 63377-90B0308 |
HDB31..20S REAR,IVORY |
1 | ||
| 63377C - MOULDING, ROOF HEADLINING, NO.2 | ||||
| 63377-90B0208 |
HDB31..20S FRONT,IVORY |
1 | ||
| 63377-90B0308 |
HDB31..20S REAR,IVORY |
1 | ||
| 63379B - COVER, ROOF HEADLINING MOULDING END | ||||
| 63379-90B0008 |
HDB31..20S W/*TV,IVORY |
9 | ||
| 63379-90B0008 |
HDB31..20S IVORY |
8 | ||
| 63379C - COVER, ROOF HEADLINING MOULDING END, B | ||||
| 63379-90B0108 |
HDB31..20S W/*TV,IVORY |
9 | ||
| 63379-90B0108 |
HDB31..20S IVORY |
8 | ||
| 63389 - RETAINER, ROOF HEADLINING TRIM, CENTER | ||||
| 63389-90B00 |
HDB31..20S |
1 | ||
| 63515A - COVER, VIDEO SET | ||||
| 63515-90B0708 |
BB21,23,24,HDB20,3#,HZB30,31..HRF..WC W/*TV,IVORY,IVORY |
1 | ||
| 63641A - BOARD, ROOF HEADLINING, NO.1 A | ||||
| 63660-90B0108 |
HDB31..20S W/BAGGAGE RACK,IVORY,IVORY |
1 | ||
| 63660-90B0008 |
HDB31..20S IVORY,IVORY |
1 | ||
| 63642A - BOARD, ROOF HEADLINING, NO.2 A | ||||
| 63670-90B0008 |
HDB31..20S IVORY,IVORY |
1 | ||
| 63670-90B0208 |
HDB31..20S W/VENTILATION FAN,IVORY,IVORY |
1 | ||
| 63670-90B0108 |
HDB31..20S W/BAGGAGE RACK,IVORY,IVORY |
1 | ||
| 63670-90B0308 |
HDB31..20S W/BAGGAGE RACK & VENTILATION FAN,IVORY,IVORY |
1 | ||
| 63643A - BOARD, ROOF HEADLINING, NO.3 A | ||||
| 63680-90B0008 |
HDB31..20S IVORY,IVORY |
1 | ||
| 63680-90B0108 |
HDB31..20S W/BAGGAGE RACK,IVORY,IVORY |
1 | ||
| Common parts | ||||
| 64750-90B01 | ||||
| 90467-08055 | ||||
| 93540-15012 | ||||
| 93610-13516 | ||||
| 93610-23516 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 4(9001- )HDB31,HZB31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-90B01 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-90B01 |
BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG 350 X 300 |
9 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-90B02 |
BB2#,HDB20,3#,HZB3#,RB20..WC 400X180 |
1 | ||
| 63348 - PAD, ROOF SILENCER, NO.8 | ||||
| 63348-90B01 |
BB2#,3#,HDB20,3#,HZB3#,RB2#..HRF 660X340 |
4 | ||
| 63351A - PAD, ROOF SILENCER, NO.10 | ||||
| 63351-90B03 |
BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC |
2 | ||
| 63353B - PAD, ROOF SILENCER, NO.12 | ||||
| 63353-90B00 |
BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG |
1 | ||
| 63356A - PAD, ROOF SILENCER, NO.15 | ||||
| 63356-90B00 |
BB24,HDB31,HZB31 680X420 |
4 | ||
| 63356-90B02 |
BB2#,HDB3#,HZB3#,RB20..HRF..WC 700X535 |
2 | ||
| 63356-90B02 |
BB21,23,26,31,HDB30,HZB30,31,RB20..HRF 700X535 |
3 | ||
| 63356-90B02 |
BB24,HDB20,31,HZB31 700X535 |
1 | ||
| 63357A - PAD, ROOF SILENCER, NO.16 | ||||
| 63357-90B00 |
BB2#,31,HDB20,3#,HZB3#,RB20 820X360 |
2 | ||
| 63357-90B05 |
BB31,HDB3#,HZB3#..HRF 750X420 |
2 | ||
| 63357-90B04 |
BB24,31,HDB20,3#,HZB3# 640X400 |
2 | ||
| 63357-90B06 |
BB21,23,26,31,HDB30,HZB30,36,RB20..HRF 820X410 |
2 | ||
| 63358A - PAD, ROOF SILENCER, NO.17 | ||||
| 63358-90B01 |
BB2#,31,HDB20,3#,HZB3#,RB20..HRF |
2 | ||
| 63359A - PAD, ROOF SILENCER, NO.18 | ||||
| 63359-90B01 |
BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG 600X150 |
4 | ||
| 63693 - PAD, ROOF SILENCER, NO.23 | ||||
| 63693-90B00 |
BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG |
1 | ||
| 63695 - PAD, ROOF SILENCER, NO.25 | ||||
| 63695-90B02 |
HDB31,HZB31 755X250 |
1 | ||
| 63697 - PAD, ROOF SILENCER, NO.27 | ||||
| 63697-90B01 |
BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG |
1 | ||
| 63698 - PAD, ROOF SILENCER, NO.28 | ||||
| 63698-90B00 |
HB30,31,32,HDB31,HZB31..EX,EXS,SULNG |
4 | ||
| 63699 - PAD, ROOF SILENCER, NO.29 | ||||
| 63699-90B00 |
BB24,HDB20,31,HZB31 |
5 | ||
| 63699-90B00 |
BB21,23,26,31,HDB30,HZB30,36,RB20..HRF |
6 | ||
