HDB31-MGZERX (1990)
Toyota Coaster
Production
Jan 1990
-
Jan 1993
Engine
1HDT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )1H#

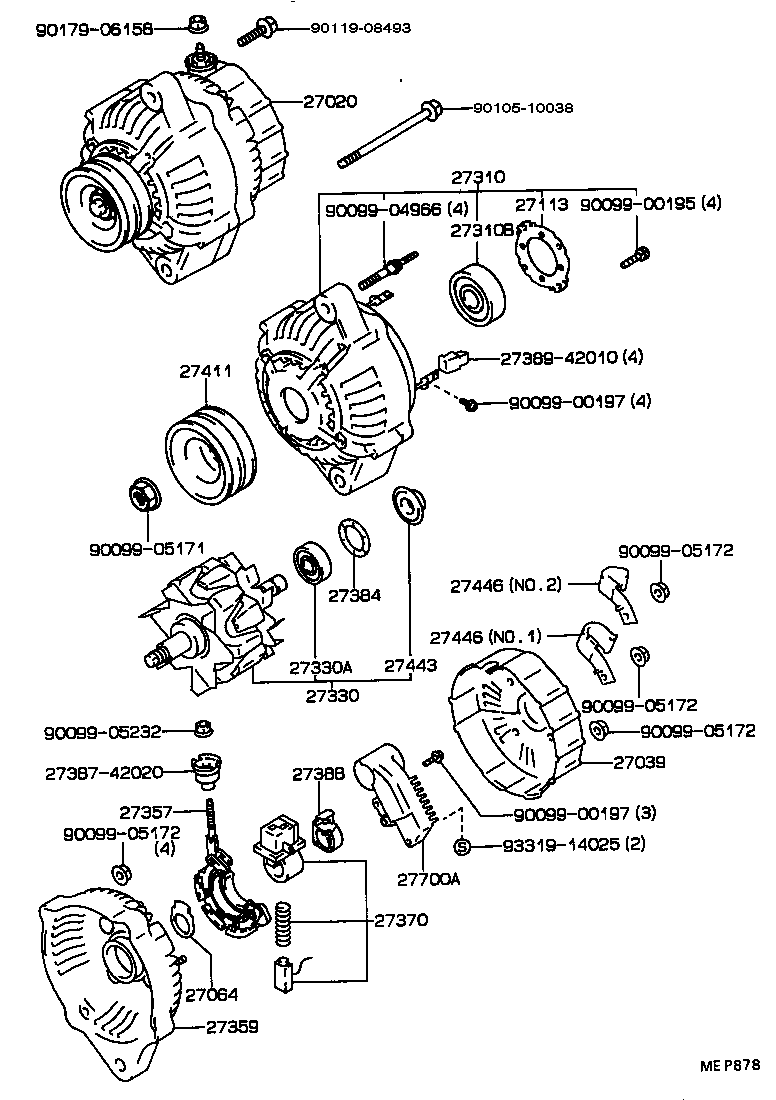

Click highlighted areas on diagram
24V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17080 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-42020 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-58160 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10160 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-58050 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-58160 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58040 |
1H#..HDB3#,HZB3# 24V 55A,NO.1 |
1 | ||
| 27446-58050 |
1H#..HDB3#,HZB3# 24V 55A,NO.2 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-58040 |
1H#..HDB3#,HZB3# 24V 55A,NO.1 |
1 | ||
| 27446-58050 |
1H#..HDB3#,HZB3# 24V 55A,NO.2 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-58020 |
1H#..HDB3#,HZB3# 24V 55A |
1 | ||
| Common parts | ||||
| 27387-42020 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10038 | ||||
| 90119-08493 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
