HDB20-PGZERX (1990)

Toyota Coaster

Production Jan 1990 - Jan 1993
Engine 1HDT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

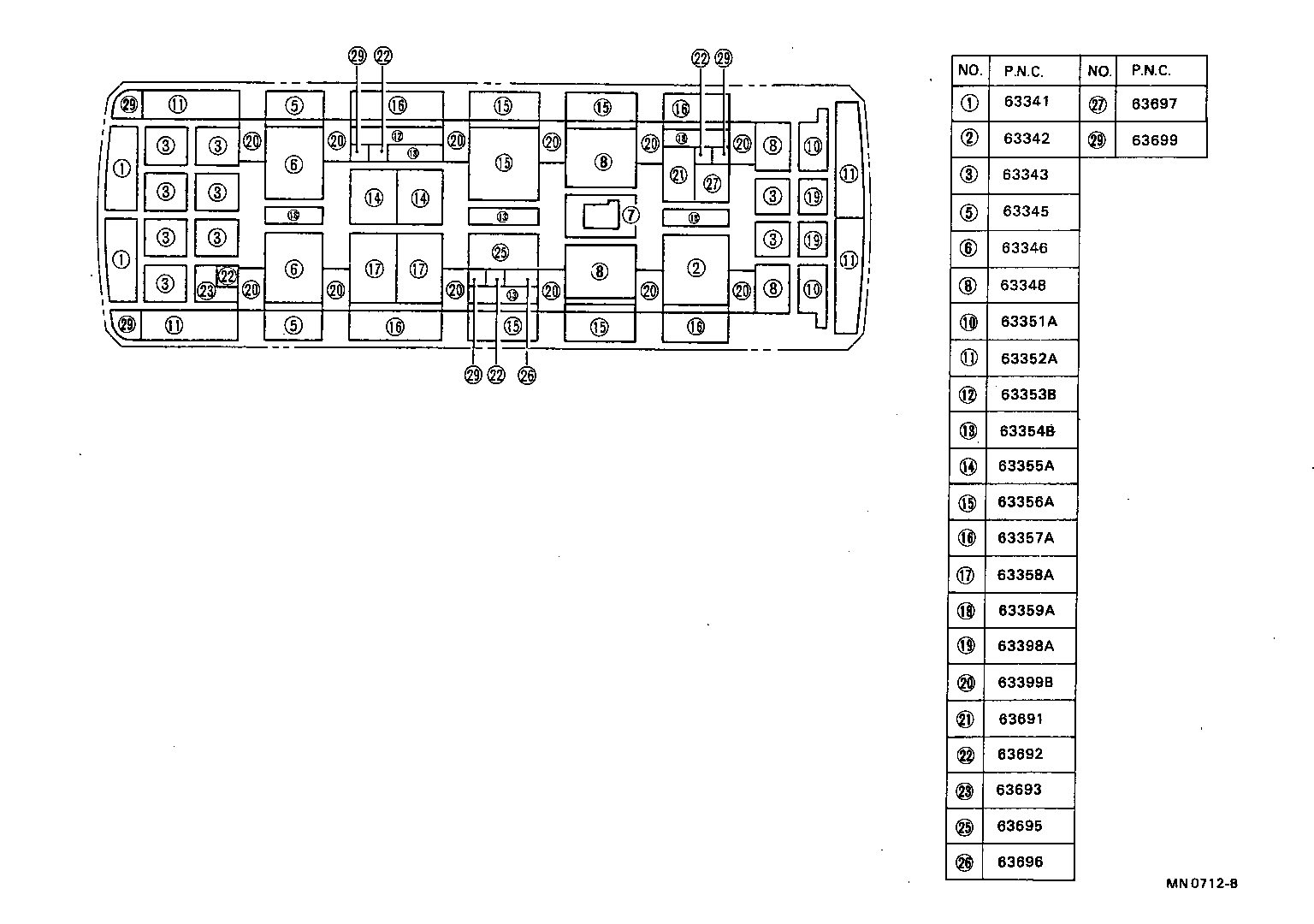

ILLUST NO. 3 OF 4(9001- )HDB20

Click highlighted areas on diagram

diagram 63341 63342 63343 63345 63346 63348 63351A 63352A 63353B 63354B 63355A 63356A 63357A 63358A 63359A 63398A 63399B 63691 63692 63693 63695 63696 63697 63699
Part # Description Qty Price
63341 - PAD, ROOF SILENCER, NO.1
63341-90B01

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..HRF

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-90B01

BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG

350 X 300

 9
63348 - PAD, ROOF SILENCER, NO.8
63348-90B01

BB2#,3#,HDB20,3#,HZB3#,RB2#..HRF

660X340

 4
63351A - PAD, ROOF SILENCER, NO.10
63351-90B03

BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC

 2
63353B - PAD, ROOF SILENCER, NO.12
63353-90B00

BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG

 1
63356A - PAD, ROOF SILENCER, NO.15
63356-90B00

HDB20

680X420

 4
63356-90B02

BB24,HDB20,31,HZB31

700X535

 1
63357A - PAD, ROOF SILENCER, NO.16
63357-90B00

BB2#,31,HDB20,3#,HZB3#,RB20

820X360

 2
63357-90B04

BB24,31,HDB20,3#,HZB3#

640X400

 2
63358A - PAD, ROOF SILENCER, NO.17
63358-90B01

BB2#,31,HDB20,3#,HZB3#,RB20..HRF

 2
63359A - PAD, ROOF SILENCER, NO.18
63359-90B01

BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG

600X150

 4
63692 - PAD, ROOF SILENCER, NO.22
63692-90B00

HDB20

120X150

 4
63693 - PAD, ROOF SILENCER, NO.23
63693-90B00

BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG

 1
63697 - PAD, ROOF SILENCER, NO.27
63697-90B01

BB24,HB30,31,32,HDB20,31,HZB31..EX,EXS,SULNG

 1
63699 - PAD, ROOF SILENCER, NO.29
63699-90B00

BB24,HDB20,31,HZB31

 5
