HB36V-MDZ (1984)

Toyota Coaster

Production Aug 1984 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )BB26,36,HB36,HZB36,RB26

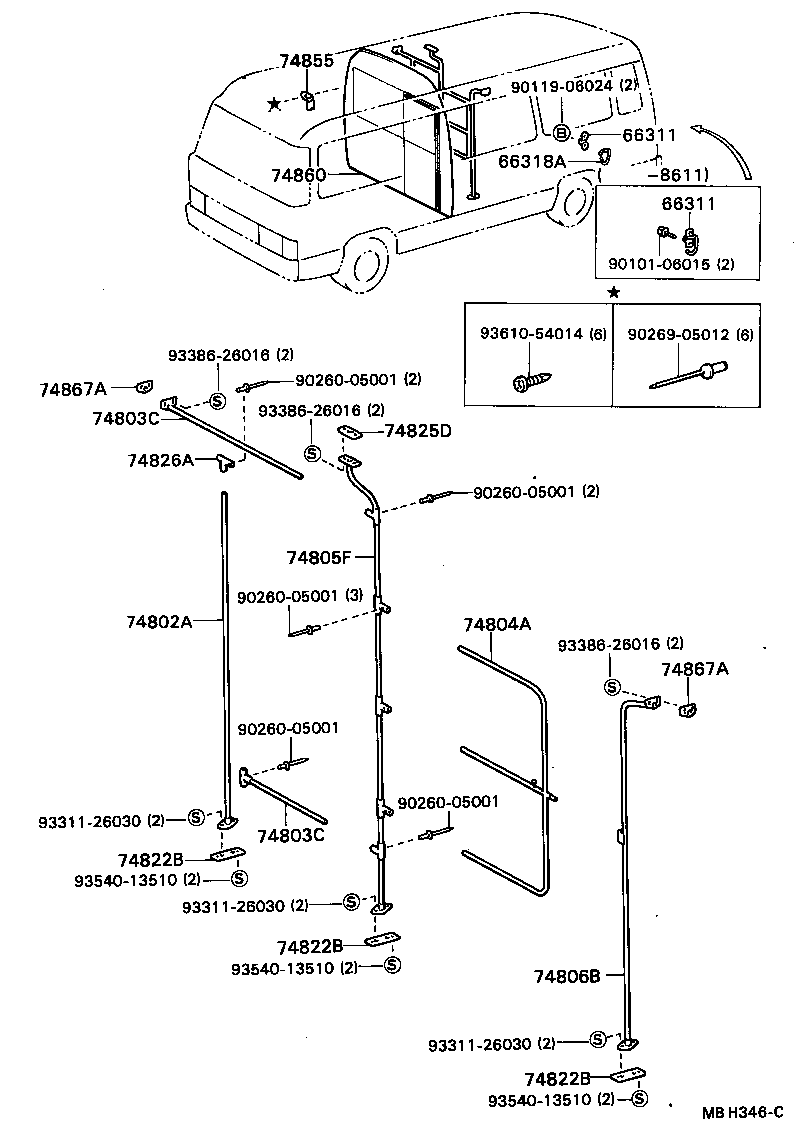

Click highlighted areas on diagram

diagram 66311 66311 66318A 74802A 74803C 74803C 74804A 74805F 74806B 74822B 74822B 74822B 74825D 74826A 74855 74860 74867A 74867A 9010106015 9011906024 9026005001 9026005001 9026005001 9026005001 9026005001 9026905012 9331126030 9331126030 9331126030 9338626016 9338626016 9338626016 9354013510 9354013510 9354013510 9361054014
Part # Description Qty Price
66311 - HOOK, ROPE
66311-90D01

BB36,HB36

 8
66311 - HOOK, ROPE
66311-90D01

BB36,HB36

 8
Common parts
90101-06015
90119-06024
90260-05001
90269-05012
93311-26030
93386-26016
93540-13510
93610-54014
