HB36V-MDZ (1984)

Toyota Coaster

Production Aug 1984 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

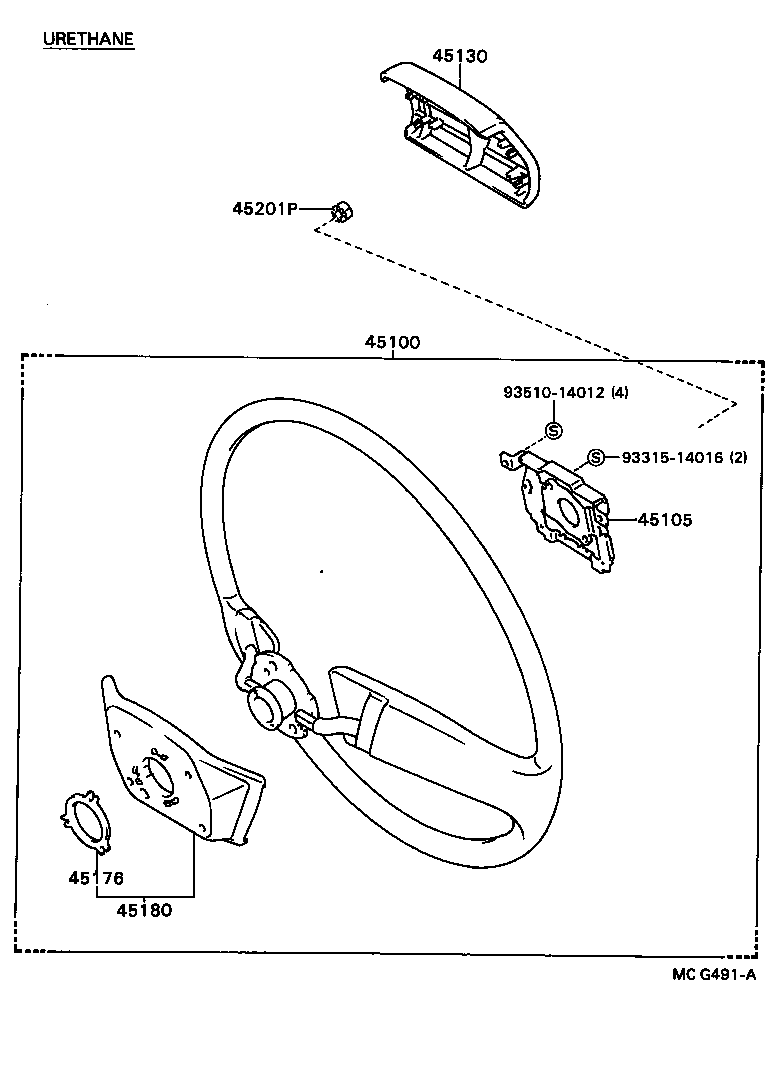

Click highlighted areas on diagram

diagram 45100 45105 45130 45176 45180 45201P 9331514016 9351014012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-36080

BB2#,3#,HB3#,RB2#

 1
45100-2508002

BB2#,3#,HB3#,RB2#

MAROON,MAROON

 1
45100-2508026

BB2#,31,HB3#,RB20

SABLE,SABLE

 1
45130 - BUTTON ASSY, HORN
45130-2506002

BB2#,3#,HB3#,RB2#

DEEP MAROON,DEEP MAROON

 1
45130-2506016

BB2#,31,HB3#,RB20

SABLE,SABLE

 1
45130-36060

BB2#,3#,HB3#,RB2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
Common parts
93315-14016
93510-14012
