HB36V-MDZ (1984)

Toyota Coaster

Production Aug 1984 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)2H

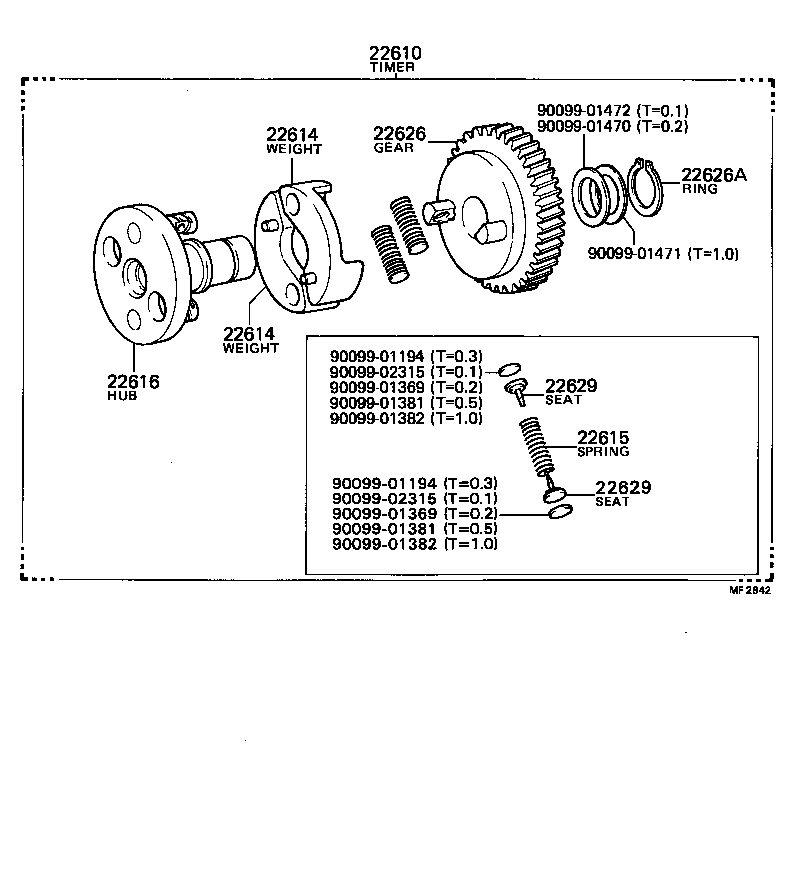

Click highlighted areas on diagram

diagram 22610 22614 22614 22615 22616 22626 22626A 22629 22629 9009901194 9009901194 9009901369 9009901369 9009901381 9009901381 9009901382 9009901382 9009901470 9009901471 9009901472 9009902315 9009902315
Part # Description Qty Price
22610 - TIMER ASSY, AUTOMATIC
22610-68020

2H..HB30,36

 1
22614 - WEIGHT, TIMER
22614-68010

2H..HB30,36

 2
22614 - WEIGHT, TIMER
22614-68010

2H..HB30,36

 2
22615 - SPRING, TIMER
22615-68020

2H..HB30,36

 2
22616 - HUB, TIMER
22616-68020

2H..HB30,36

 1
22626 - GEAR, DRIVE
22626-68010

2H..HB30,36

 1
22626A - RING, CLAMP(FOR DRIVE GEAR)
90096-90021

2H..HB30,36

 1
22629 - SEAT, SPRING(FOR TIMER SPRING)
22629-68010

2H..HB30,36

 4
22629 - SEAT, SPRING(FOR TIMER SPRING)
22629-68010

2H..HB30,36

 4
Common parts
90099-01194
90099-01369
90099-01381
90099-01382
90099-01470
90099-01471
90099-01472
90099-02315
