HB31-PGZRX (1985)

Toyota Coaster

Production Oct 1985 - Jan 1993
Engine 12HT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

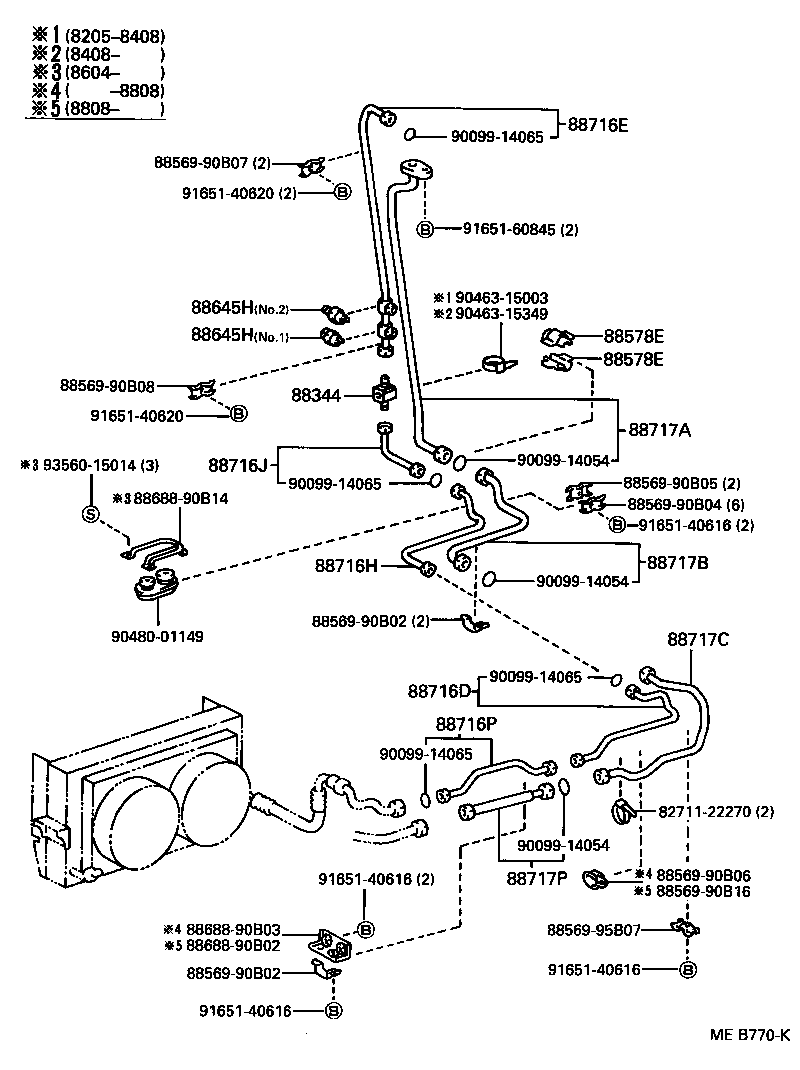

ILLUST NO. 2 OF 3(8205-9001)HB3#

Click highlighted areas on diagram

diagram 8271122270 88344 8856990B02 8856990B02 8856990B04 8856990B06 8856990B07 8856990B08 8856990B16 8856995B07 88578E 88578E 88645H 88645H 8866990B05 8868890B02 8868890B03 8868890B14 88716D 88716E 88716H 88716J 88716P 88717A 88717B 88717C 88717P 9009914054 9009914054 9009914054 9009914065 9009914065 9009914065 9009914065 9046315003 9046315349 9048001149 9165140616 9165140616 9165140616 9165140616 9165140620 9165140620 9165160845 9356015014
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88344-90B00

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 2
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

NO.2

 1
88645-95A00

BB2#,30,31,HB3#,RB2#..WC

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

NO.2

 1
88645-95A00

BB2#,30,31,HB3#,RB2#..WC

NO.1

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-90B04

BB2#,30,31,HB3#,RB2#..WC

 1
88716-90B11

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90B09

BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-90B10

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88716-90B05

BB2#,30,31,HB3#,RB2#..WC

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-90B08

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-90B06

BB30,31,HB30,31,36,HDB3#,HZB3#..WC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-90B09

BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-90B04

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-90B03

BB2#,30,31,HB3#,RB2#..WC

 1
88717-90B22

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-90B05

BB30,31,HB3#,HDB3#,HZB3#..WC

 1
Common parts
82711-22270
88569-90B02
88569-90B04
88569-90B06
88569-90B07
88569-90B08
88569-90B16
88569-95B07
88669-90B05
88688-90B02
88688-90B03
88688-90B14
90099-14054
90099-14065
90463-15003
90463-15349
90480-01149
91651-40616
91651-40620
91651-60845
93560-15014

ILLUST NO. 2 OF 3(9001- )HDB20,3#

Click highlighted areas on diagram

diagram 8271122270 88344 8856990B02 8856990B02 8856990B04 8856990B05 8856990B07 8856990B07 8856990B08 8856990B16 88578E 88578E 88645H 88645H 8868890B14 8868890B20 88716D 88716E 88716H 88716J 88716P 88717A 88717B 88717C 88717P 9009914054 9009914054 9009914054 9009914065 9009914065 9009914065 9009914065 9046315349 9048001149 9165140616 9165140616 9165140616 9165140616 9165140620 9165140620 9165160845 9356015014
Part # Description Qty Price
88344 - GLASS SUB-ASSY, SIGHT
88344-90B00

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 2
88578E - PACKING, COOLER PIPE, NO.2
88578-90B01

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 2
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

NO.2

 1
88645-95A00

BB2#,30,31,HB3#,RB2#..WC

NO.1

 1
88645H - SWITCH, PRESSURE NO.1
88645-30250

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

NO.2

 1
88645-95A00

BB2#,30,31,HB3#,RB2#..WC

NO.1

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-90B04

BB2#,30,31,HB3#,RB2#..WC

 1
88716-90B11

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-90B09

BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC

 1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-90B10

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88716-90B05

BB2#,30,31,HB3#,RB2#..WC

 1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-90B08

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-90B06

BB30,31,HB30,31,36,HDB3#,HZB3#..WC

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-90B09

BB2#,HB3#,HDB20,3#,HZB3#,RB2#..HRF..WC

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-90B04

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-90B03

BB2#,30,31,HB3#,RB2#..WC

 1
88717-90B22

BB2#,31,HB3#,HDB20,3#,HZB3#,RB20..WC

 1
88717P - PIPE, COOLER REFRIGERANT SUCTION, P
88717-90B05

BB30,31,HB3#,HDB3#,HZB3#..WC

 1
Common parts
82711-22270
88569-90B02
88569-90B04
88569-90B05
88569-90B07
88569-90B08
88569-90B16
88688-90B14
88688-90B20
90099-14054
90099-14065
90463-15349
90480-01149
91651-40616
91651-40620
91651-60845
93560-15014

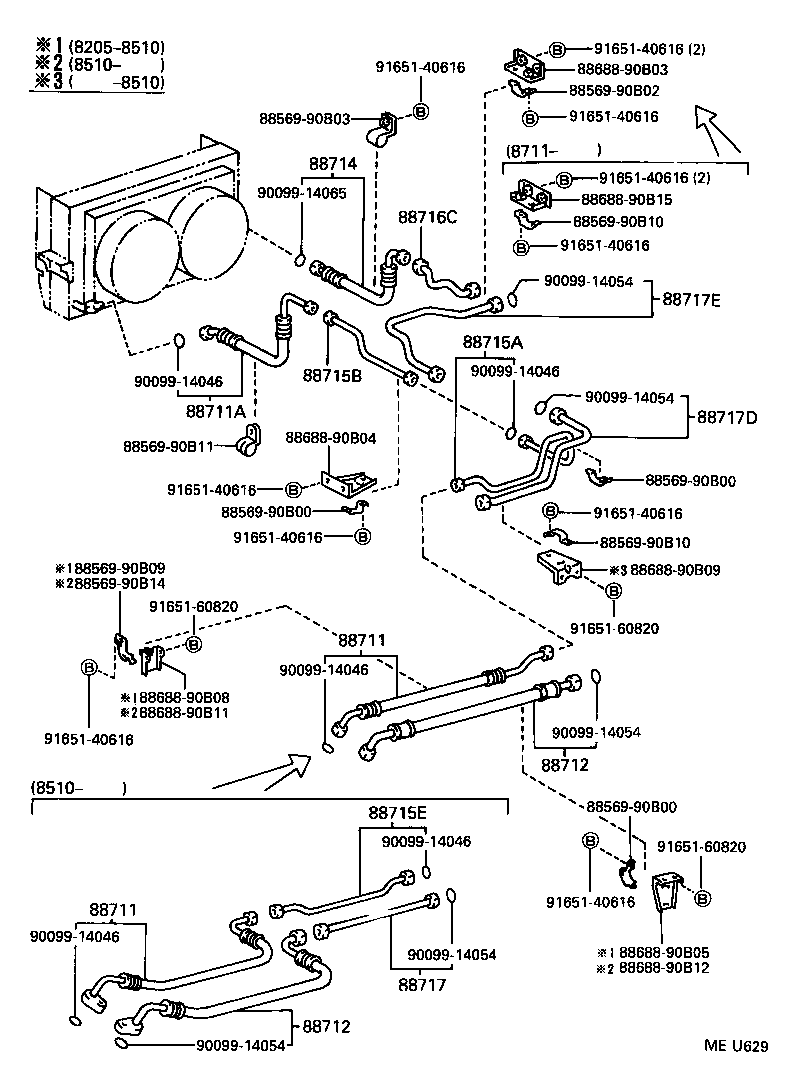

ILLUST NO. 3 OF 3(8205-9001)HB3#

Click highlighted areas on diagram

diagram 8856990B00 8856990B00 8856990B00 8856990B02 8856990B03 8856990B09 8856990B10 8856990B10 8856990B11 8856990B14 8868890B03 8868890B04 8868890B05 8868890B08 8868890B09 8868890B11 8868890B12 8868890B15 88711 88711 88711A 88712 88712 88714 88715A 88715B 88715E 88716C 88717 88717D 88717E 9009914046 9009914046 9009914046 9009914046 9009914046 9009914054 9009914054 9009914054 9009914054 9009914054 9009914065 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165160820 9165160820 9165160820
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B14

BB2#,31..WC

 1
88711-90B01

BB2#,3#..WC

 1
88711-90B15

BB2#,31..WC

 1
88711-90B08

HB31,32

 1
88711-90B18

HDB20,3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B14

BB2#,31..WC

 1
88711-90B01

BB2#,3#..WC

 1
88711-90B15

BB2#,31..WC

 1
88711-90B08

HB31,32

 1
88711-90B18

HDB20,3#

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-90B03

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B08

HB3#..WC

 1
88712-90B14

BB2#,31..WC

 1
88712-90B01

BB2#,3#..WC

 1
88712-90B15

BB2#,31..WC

 1
88712-90B17

HDB20,3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B08

HB3#..WC

 1
88712-90B14

BB2#,31..WC

 1
88712-90B01

BB2#,3#..WC

 1
88712-90B15

BB2#,31..WC

 1
88712-90B17

HDB20,3#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90B00

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-90B01

HB3#..WC

 1
88715-90B09

HDB20,3#

 1
88715-90B04

BB2#,31,RB2#..WC

 1
88715-90B11

BB2#,31,HZB3#,RB2#..WC

 1
88715-90B00

BB2#,30,31,RB2#..WC

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-90B02

HB3#..WC

 1
88715-90B10

HDB20,3#

 1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-90B03

HB3#..WC

 1
88715-90B05

BB2#,31..WC

 1
88715-90B08

HDB20,3#

NO.2

 1
88715-90B07

HDB20,3#

NO.1

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-90B03

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-90B21

BB2#,31..WC

 1
88717-90B27

HDB20,3#

NO.2

 1
88717-90B15

HB3#..WC

 1
88717-90B26

HDB20,3#

NO.1

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-90B17

HB3#..WC

 1
88717-90B18

BB2#,31,RB2#..WC

 1
88717-90B19

BB2#,31,HZB3#,RB20..WC

 1
88717-90B06

HB3#..WC

 1
88717-90B28

HDB20,3#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-90B29

HDB20,3#

 1
88717-90B20

HB3#..WC

 1
88717-90B07

HB3#..WC

 1
Common parts
88569-90B00
88569-90B02
88569-90B03
88569-90B09
88569-90B10
88569-90B11
88569-90B14
88688-90B03
88688-90B04
88688-90B05
88688-90B08
88688-90B09
88688-90B11
88688-90B12
88688-90B15
90099-14046
90099-14054
90099-14065
91651-40616
91651-60820

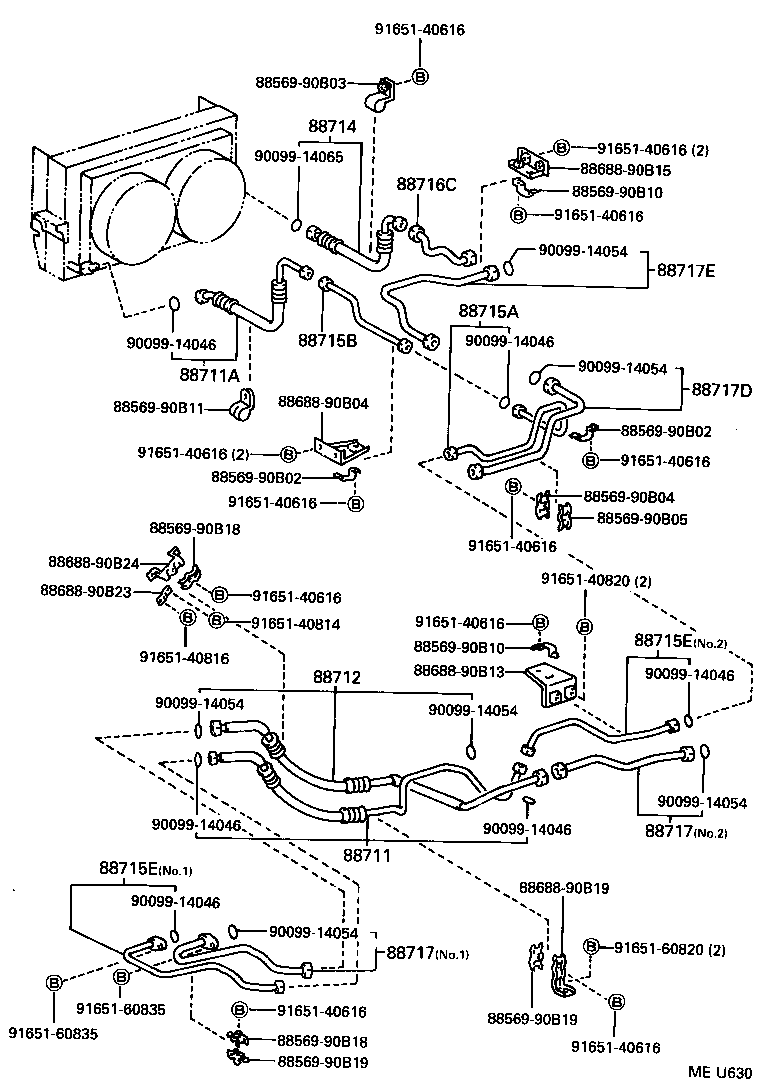

ILLUST NO. 3 OF 3(9001- )HDB20,3#

Click highlighted areas on diagram

diagram 8856990B02 8856990B02 8856990B03 8856990B04 8856990B05 8856990B10 8856990B10 8856990B11 8856990B18 8856990B18 8856990B19 8856990B19 8868890B04 8868890B13 8868890B15 8868890B19 8868890B23 8868890B24 88711 88711A 88712 88714 88715A 88715B 88715E 88715E 88716C 88717 88717 88717D 88717E 9009914046 9009914046 9009914046 9009914046 9009914046 9009914046 9009914054 9009914054 9009914054 9009914054 9009914054 9009914054 9009914065 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140616 9165140814 9165140816 9165140820 9165160820 9165160835 9165160835
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-90B14

BB2#,31..WC

 1
88711-90B01

BB2#,3#..WC

 1
88711-90B15

BB2#,31..WC

 1
88711-90B08

HB31,32

 1
88711-90B18

HDB20,3#

 1
88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2
88711-90B03

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-90B08

HB3#..WC

 1
88712-90B14

BB2#,31..WC

 1
88712-90B01

BB2#,3#..WC

 1
88712-90B15

BB2#,31..WC

 1
88712-90B17

HDB20,3#

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-90B00

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-90B01

HB3#..WC

 1
88715-90B09

HDB20,3#

 1
88715-90B04

BB2#,31,RB2#..WC

 1
88715-90B11

BB2#,31,HZB3#,RB2#..WC

 1
88715-90B00

BB2#,30,31,RB2#..WC

 1
88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B
88715-90B02

HB3#..WC

 1
88715-90B10

HDB20,3#

 1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-90B03

HB3#..WC

 1
88715-90B05

BB2#,31..WC

 1
88715-90B08

HDB20,3#

NO.2

 1
88715-90B07

HDB20,3#

NO.1

 1
88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E
88715-90B03

HB3#..WC

 1
88715-90B05

BB2#,31..WC

 1
88715-90B08

HDB20,3#

NO.2

 1
88715-90B07

HDB20,3#

NO.1

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-90B03

BB2#,30,31,HB3#,HDB20,3#,HZB3#,RB2#..WC

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-90B21

BB2#,31..WC

 1
88717-90B27

HDB20,3#

NO.2

 1
88717-90B15

HB3#..WC

 1
88717-90B26

HDB20,3#

NO.1

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-90B21

BB2#,31..WC

 1
88717-90B27

HDB20,3#

NO.2

 1
88717-90B15

HB3#..WC

 1
88717-90B26

HDB20,3#

NO.1

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-90B17

HB3#..WC

 1
88717-90B18

BB2#,31,RB2#..WC

 1
88717-90B19

BB2#,31,HZB3#,RB20..WC

 1
88717-90B06

HB3#..WC

 1
88717-90B28

HDB20,3#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-90B29

HDB20,3#

 1
88717-90B20

HB3#..WC

 1
88717-90B07

HB3#..WC

 1
Common parts
88569-90B02
88569-90B03
88569-90B04
88569-90B05
88569-90B10
88569-90B11
88569-90B18
88569-90B19
88688-90B04
88688-90B13
88688-90B15
88688-90B19
88688-90B23
88688-90B24
90099-14046
90099-14054
90099-14065
91651-40616
91651-40814
91651-40816
91651-40820
91651-60820
91651-60835
