HB31-PGZRX (1985)
Toyota Coaster
(8205-9001)12HT,2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-46020 |
2H..HB3# STD |
1 | ||
| 11013-46020 |
2H..HB3# O/S 0.250 |
1 | ||
| 11011-68020 |
12HT,2H..HB3# STD,STD |
1 | ||
| 11012-46020 |
2H..HB3# O/S 0.125 |
1 | ||
| 11012-68020 |
12HT,2H..HB3# O/S 0.125,O/S 0.125 |
1 | ||
| 11013-68020 |
12HT,2H..HB3# O/S 0.250,O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-68020 |
2H..HB3# REP,STD #2 |
1 | ||
| 11707-68020 |
2H..HB3# U/S 1.00 |
1 | ||
| 11704-68020 |
2H..HB3# U/S 0.25 |
1 | ||
| 11706-68020 |
2H..HB3# U/S 0.75 |
1 | ||
| 11702-68020 |
2H..HB3# REP,STD #1 |
1 | ||
| 11705-68020 |
2H..HB3# U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6802003 |
12HT,2H..HB3# NO.2,MARK"3",MARK 3 |
1 | ||
| 11701-6802003 |
12HT,2H..HB3# NO.1,MARK"3",MARK 3 |
6 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-68030 |
12HT..HB31,32 STD,STD |
1 | ||
| 13013-68030 |
12HT..HB31,32 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6804002 |
12HT,2H..HB3# MARK"2",MARK 2 |
6 | ||
| 13041-6804001 |
12HT,2H..HB3# MARK"1",MARK 1 |
6 | ||
| 13041-6805001 |
12HT..HB31,32 MARK "1",MARK 1 |
6 | ||
| 13041-6805002 |
12HT..HB31,32 MARK "2",MARK 2 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-68010 |
2H..HB3# O/S 0.50 |
6 | ||
| 13101-68020 |
12HT..HB31 STD,STD |
6 | ||
| 13101-68010 |
2H..HB3# STD |
6 | ||
| 13103-68020 |
12HT..HB31,32 O/S 0.50,O/S 0.50 |
6 | ||
| 13101-6802001 |
12HT..HB31,32 STD,STD,MARK"1",MARK 1 |
6 | ||
| 13101-6802002 |
12HT..HB31,32 STD,STD,MARK"2",MARK 2 |
6 | ||
| 13101-6802003 |
12HT..HB31,32 STD,STD,MARK"3",MARK 3 |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-34004 |
12HT,1HZ..HB31,32,HZB3# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-68020 |
12HT..HB31 |
6 | ||
| 13201-69095 |
12HT..HB31,32 |
6 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-68020 |
12HT..HB31 |
6 | ||
| 13201-69095 |
12HT..HB31,32 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73108 |
12HT..HB31,32 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-47011 |
2H..HB3# U/S 0.25 |
1 | ||
| 13202-47011 |
2H..HB3# REP STD #1 |
1 | ||
| 13206-47011 |
2H..HB3# U/S 0.75 |
1 | ||
| 13203-47011 |
2H..HB3# REP STD #2 |
1 | ||
| 13207-47011 |
2H..HB3# U/S 1.00 |
1 | ||
| 13207-68040 |
12HT,2H..HB3# U/S 1.00,U/S 1.00 |
1 | ||
| 13206-68040 |
12HT,2H..HB3# U/S 0.75,U/S 0.75 |
1 | ||
| 13205-47011 |
2H..HB3# U/S 0.50 |
1 | ||
| 13204-68040 |
12HT,2H..HB3# U/S 0.25,U/S 0.25 |
1 | ||
| 13206-68050 |
12HT..HB31,32 U/S 0.75,U/S 0.75 |
1 | ||
| 13207-68050 |
12HT..HB31,32 U/S 1.00,U/S 1.00 |
1 | ||
| 13204-68050 |
12HT..HB31,32 U/S 0.25,U/S 0.25 |
1 | ||
| 13205-68040 |
12HT,2H..HB3# U/S 0.50,U/S 0.50 |
1 | ||
| 13205-68050 |
12HT..HB31,32 U/S 0.50,U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-68010 |
12HT,2H..HB3# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-12015 |
12HT,2H..HB3# |
12 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-68020 |
2H..HB3#..WC |
1 | ||
| 13407 - DAMPER SUB-ASSY, CRANKSHAFT | ||||
| 13407-68020 |
2H..HB3#..WC |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-68010 |
2H..HB3# |
1 | ||
| 13401-68020 |
12HT..HB31,32 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-68010 |
12HT,2H..HB3# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-68030 |
12HT,2H..HB3#..WC |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
12HT,2H..HB3# |
1 | ||
| 13471E - NUT(FOR CRANKSHAFT PULLEY) | ||||
| 90179-22062 |
12HT,2H..HB3# |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-68010 |
12HT,2H..HB3# |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12HT,2H..HB3# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-68010 |
12HT,2H..HB3# N=51 |
1 | ||
| 13526 - GEAR, IDLE, NO.2 | ||||
| 13526-68010 |
12HT,2H..HB3# N=37 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-68010 |
12HT,2H..HB3# |
2 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-68010 |
12HT,2H..HB3# |
2 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10036 |
12HT,2H..HB3# |
4 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10036 |
12HT,2H..HB3# |
4 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-68010 |
12HT,2H..HB3# |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-68010 |
12HT,2H..HB3# |
1 | ||

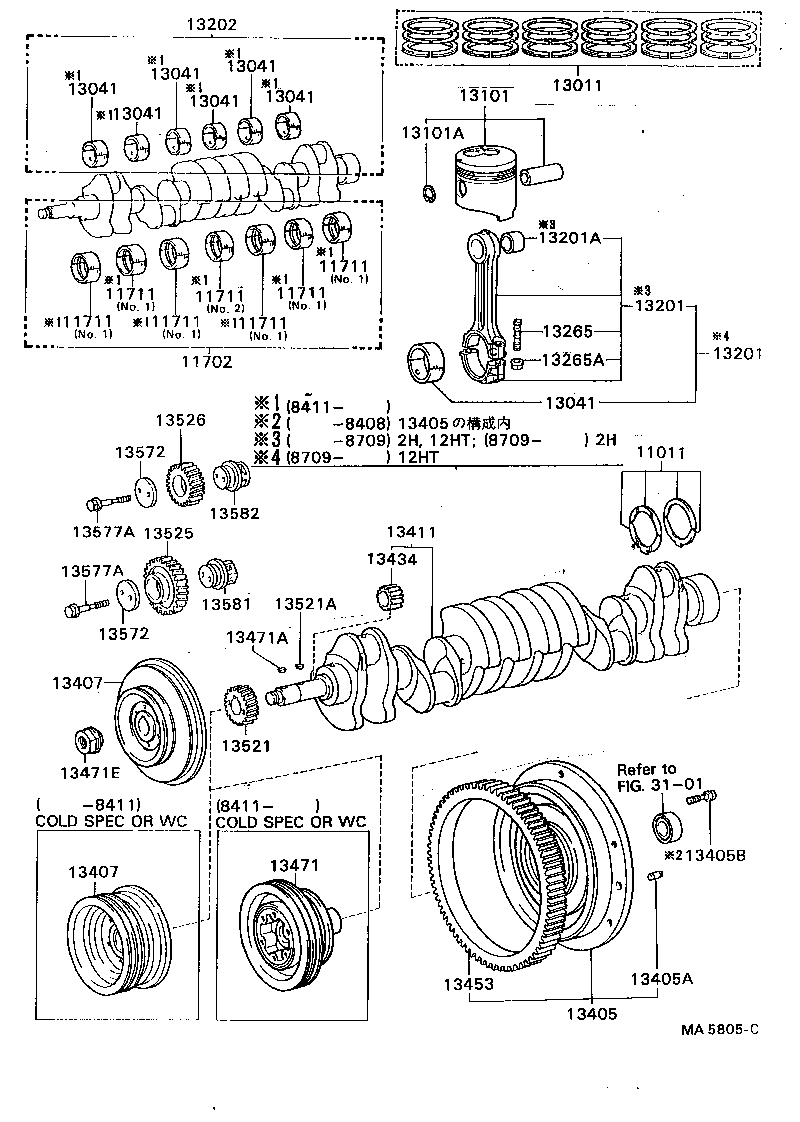

| Linked diagrams | ||||
| 3101 | ||||
