HB31-PGZGRX (1985)
Toyota Coaster
(8510- )BB23,24,HB31,32

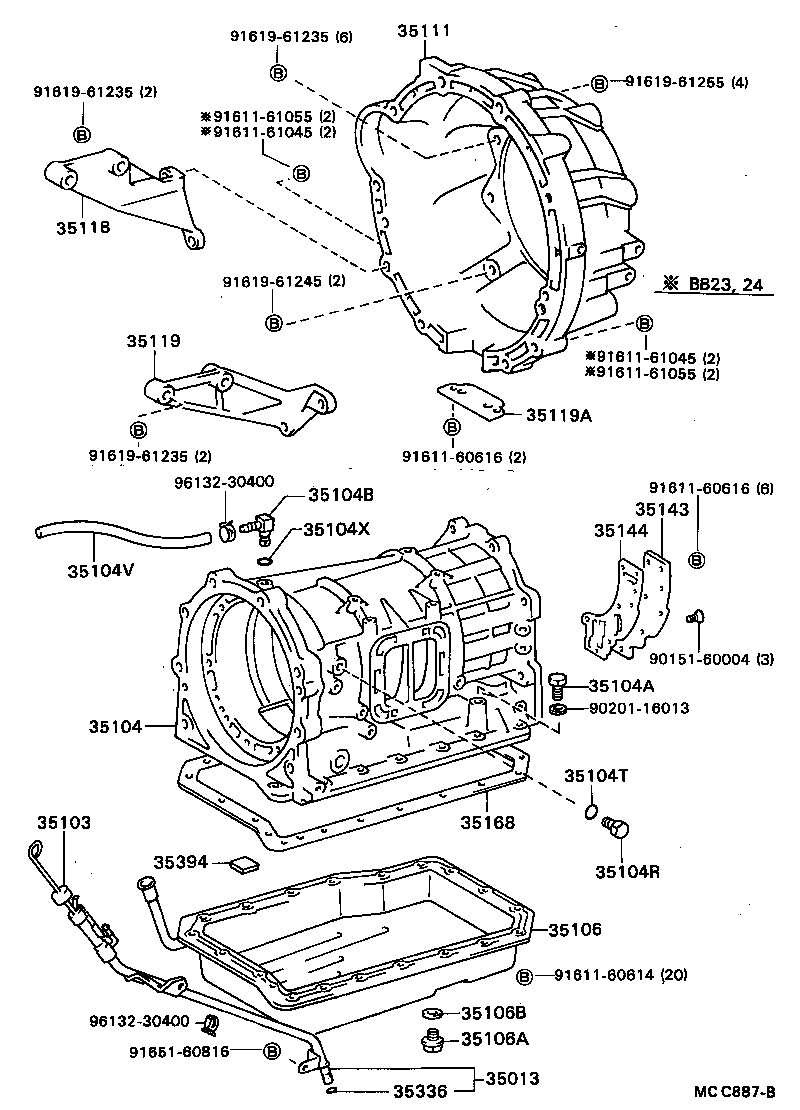

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-36020 |
HB31,32..4FC |
1 | ||
| 35013-36060 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-36031 |
HB31,32..4FC |
1 | ||
| 35103-36030 |
HB31..4FC |
1 | ||
| 35103-36032 |
HB31,32..4FC |
1 | ||
| 35103-36040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-36020 |
BB23,24,HB31,32..4FC |
1 | ||
| 35104-36030 |
HDB20,3#..4FC |
1 | ||
| 35104-36021 |
BB23,24,HB31,32,HZB30,31..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-16010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-06196 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11009 |
HB31,32..4FC |
1 | ||
| 90445-11114 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-36021 |
HB31,32..4FC |
1 | ||
| 35106-36022 |
HB31,32..4FC |
1 | ||
| 35106-36020 |
HB31..4FC |
1 | ||
| 35106-36040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-36020 |
HB31,32..4FC |
1 | ||
| 35311-60040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-60030 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 33118-60010 |
HB31,32..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-60030 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 33119-60010 |
HB31,32..4FC |
1 | ||
| 35119A - COVER, TRANSMISSION HOUSING | ||||
| 35119-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
2 | ||
| Common parts | ||||
| 90151-60004 | ||||
| 90201-16013 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-61045 | ||||
| 91611-61055 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91619-61255 | ||||
| 91651-60816 | ||||
| 96132-30400 | ||||
(9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-36020 |
HB31,32..4FC |
1 | ||
| 35013-36060 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-36031 |
HB31,32..4FC |
1 | ||
| 35103-36030 |
HB31..4FC |
1 | ||
| 35103-36032 |
HB31,32..4FC |
1 | ||
| 35103-36040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-36020 |
BB23,24,HB31,32..4FC |
1 | ||
| 35104-36030 |
HDB20,3#..4FC |
1 | ||
| 35104-36021 |
BB23,24,HB31,32,HZB30,31..4FC |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-16010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03094 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104R - PLUG, NO.2 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104T - RING, O (FOR TRANSAXLE CASE PLUG NO.2) | ||||
| 90301-06196 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
7 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90447-11009 |
HB31,32..4FC |
1 | ||
| 90445-11114 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-36021 |
HB31,32..4FC |
1 | ||
| 35106-36022 |
HB31,32..4FC |
1 | ||
| 35106-36020 |
HB31..4FC |
1 | ||
| 35106-36040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18057 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 12157-10010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-36020 |
HB31,32..4FC |
1 | ||
| 35311-60040 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 35118 - PLATE, STIFENER, RH (ATM) | ||||
| 33118-60030 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 33118-60010 |
HB31,32..4FC |
1 | ||
| 35119 - PLATE, STIFENER, LH (ATM) | ||||
| 33119-60030 |
HDB20,3#,HZB30,31..4FC |
1 | ||
| 33119-60010 |
HB31,32..4FC |
1 | ||
| 35119A - COVER, TRANSMISSION HOUSING | ||||
| 35119-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-36010 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
BB23,24,HB31,32,HDB20,3#,HZB30,31..4FC |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-36040 |
BB23,24,HB31,32,HZB30,31..4FC |
1 | ||
| Common parts | ||||
| 90151-60004 | ||||
| 90201-16013 | ||||
| 91611-60616 | ||||
| 91611-61245 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91651-40816 | ||||
| 96132-30400 | ||||
