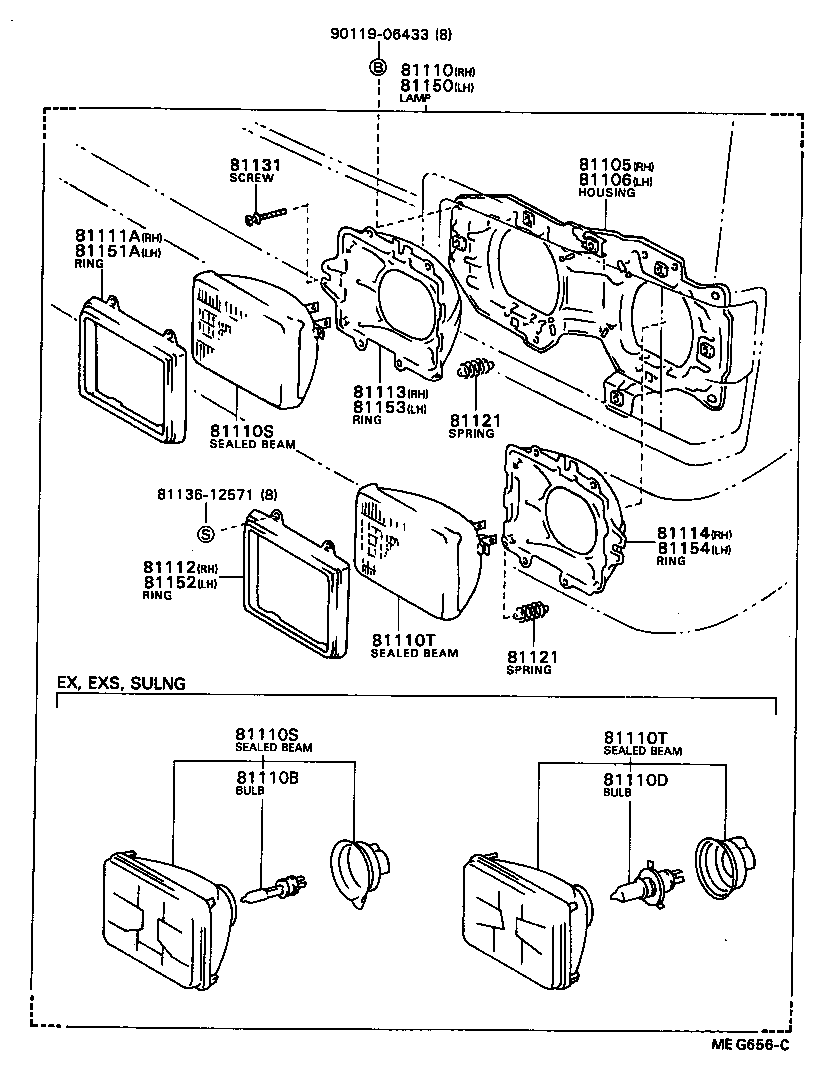

HB31-MGZRX (1985)
Toyota Coaster
(8510- )DLX,EX,EXS ; (9001- )HDB31..20S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-90B04 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-90B04 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-90B13 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG |
1 | ||
| 81110-80229 |
BB2#,3#,HB3#..DLX,EX,EXS |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-17015 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 70W,*HAL *WH,24V 70W |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-17011 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 75/70W,*HAL *WH,24V 75/70W |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-10005 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 70W,*HWS,24V 70W |
2 | ||
| 90981-10001 |
BB2#,3#,HB3#..DLX,EX,EXS 24V 55W,*WB,24V 55W |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-10005 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 70W,*HWS,24V 70W |
2 | ||
| 90981-10001 |
BB2#,3#,HB3#..DLX,EX,EXS 24V 55W,*WB,24V 55W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-10002 |
BB2#,3#,HB3#..DLX,EX,EXS 24V 50/65W,*WB,24V 50/65W |
2 | ||
| 90981-10006 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 75/70W,*HWS,24V 75/70W |
2 | ||
| 81110T - SEALED BEAM UNIT, NO.2 | ||||
| 90981-10002 |
BB2#,3#,HB3#..DLX,EX,EXS 24V 50/65W,*WB,24V 50/65W |
2 | ||
| 90981-10006 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG 24V 75/70W,*HWS,24V 75/70W |
2 | ||
| 81111A - RING, SEALED BEAM RETAINING, NO.1 RH | ||||
| 81111-20360 |
HDB20,3#,HZB3# |
1 | ||
| 81111-20360 |
BB2#,3#,HB3#,RB2#..DLX,EX,EXS |
1 | ||
| 81112 - RING, SEALED BEAM RETAINING, NO.2 RH | ||||
| 81111-20360 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
BB2#,3#,HB3#,RB2#..DLX,EX,EXS |
4 | ||
| 81121-14320 |
HDB20,3#,HZB3# |
4 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-14320 |
BB2#,3#,HB3#,RB2#..DLX,EX,EXS |
4 | ||
| 81121-14320 |
HDB20,3#,HZB3# |
4 | ||
| 81131 - SCREW, HEADLAMP ADJUSTING | ||||
| 81131-20360 |
BB2#,3#,HB3#,RB2#..DLX,EX,EXS |
8 | ||
| 81131-28050 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
8 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-90B13 |
BB24,HB31,32,HDB20,31,HZB31..EX,EXS,SULNG |
1 | ||
| 81150-80226 |
BB2#,3#,HB3#..DLX,EX,EXS |
1 | ||
| 81151A - RING, SEALED BEAM RETAINING, NO.1 LH | ||||
| 81111-20360 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| 81152 - RING, SEALED BEAM RETAINING, NO.2 LH | ||||
| 81111-20360 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#..DLX,EX,EXS,SULNG |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90119-06433 | ||||
