HB31-MGZRX (1985)
Toyota Coaster

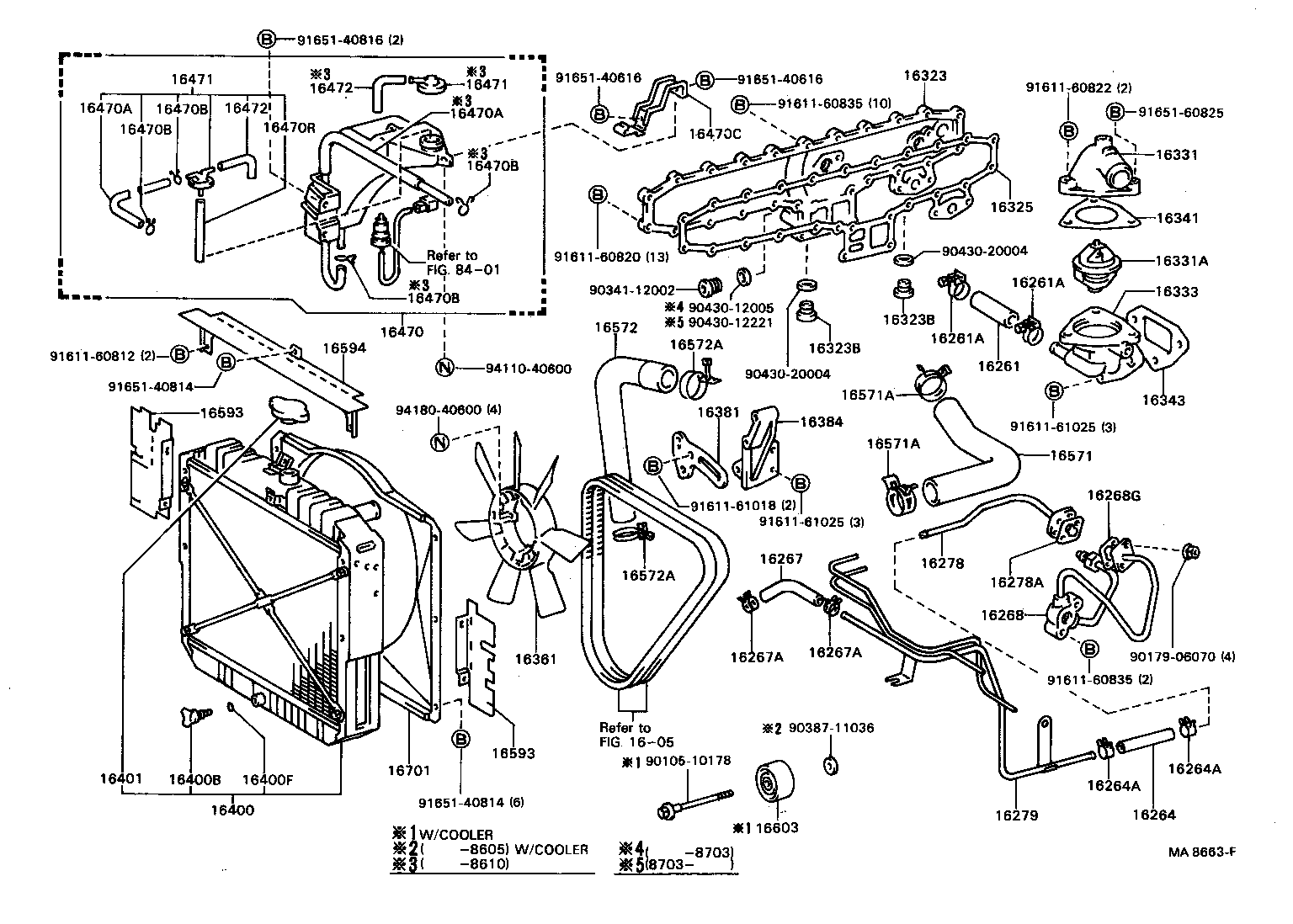

(8205-9001)2H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HB3# ID=33 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HB3# ID=33 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-68010 |
2H..HB3# |
1 | ||
| 16323-68030 |
12HT..HB31,32 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HB3# |
2 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HB3# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-68010 |
2H..HB3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68010 |
2H..HB3# |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
12HT,2H..HB3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
12HT,2H..HB3# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
12HT,2H..HB3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
12HT,2H..HB3# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68020 |
12HT,2H..HB3#..WC |
1 | ||
| 16381-68041 |
12HT,2H..HB3#..WC W/TV & VIDEO |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68020 |
12HT,2H..HB3#..WC |
1 | ||
| 16381-68041 |
12HT,2H..HB3#..WC W/TV & VIDEO |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-68010 |
12HT,2H..HB3#..WC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68040 |
2H..HB3# |
1 | ||
| 16400-68141 |
12HT..HB31..5F |
1 | ||
| 16400-68142 |
12HT..HB31,32..5F |
1 | ||
| 16400-68140 |
12HT..HB31..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
12HT,2H..HB3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
12HT,2H..HB3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2H..HB3# |
1 | ||
| 16401-71010 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-68060 |
12HT..HB31..EX,EXS |
1 | ||
| 16470-90B04 |
12HT..HB31..EX,EXS |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12035 |
12HT,2H..HB3# |
1 | ||
| 90445-12078 |
12HT,2H..HB3# *H,L=280 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12035 |
12HT,2H..HB3# |
1 | ||
| 90445-12078 |
12HT,2H..HB3# *H,L=280 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-90B02 |
12HT,2H..HB3# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 85338-68050 |
12HT,2H..HB3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90B00 |
12HT,2H..HB3# |
1 | ||
| 16405-68040 |
12HT,2H..HB3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90B00 |
12HT,2H..HB3# |
1 | ||
| 16405-68040 |
12HT,2H..HB3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
12HT,2H..HB3# |
1 | ||
| 85338-70100 |
12HT,2H..HB3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
12HT,2H..HB3# |
1 | ||
| 85338-70100 |
12HT,2H..HB3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68030 |
12HT,2H..HB3# |
1 | ||
| 16571-68070 |
12HT,2H..HB3#..WC ALTERNATOR(24V 85A) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68030 |
2H..HB3# |
1 | ||
| 16572-68060 |
12HT,2H..HB3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-68010 |
12HT,2H..HB3# LH |
1 | ||
| 16593-68010 |
12HT,2H..HB3# RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-68010 |
12HT,2H..HB3# LH |
1 | ||
| 16593-68010 |
12HT,2H..HB3# RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-68010 |
12HT,2H..HB3# |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-68010 |
12HT,2H..HB3#..WC |
1 | ||
| 16603-68011 |
12HT,2H..HB3#..WC |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-47030 |
12HT,2H..HB3# |
1 | ||
| Common parts | ||||
| 90105-10178 | ||||
| 90341-12002 | ||||
| 90387-11036 | ||||
| 90387-11037 | ||||
| 90387-11040 | ||||
| 90430-12005 | ||||
| 90430-12221 | ||||
| 90430-20004 | ||||
| 91611-60812 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60835 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||

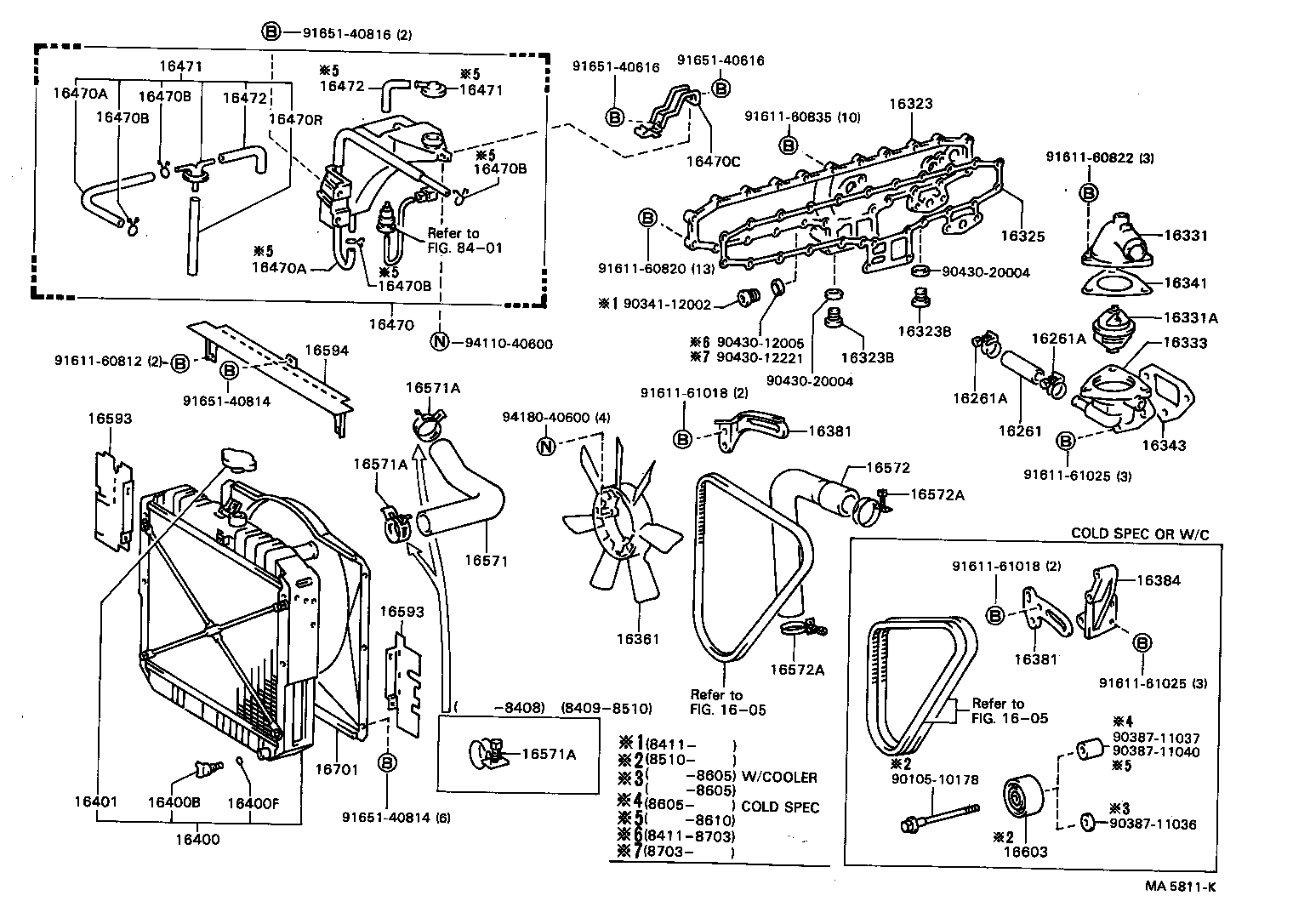

(8510-9001)12HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HB3# ID=33 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96111-10330 |
12HT,2H..HB3# ID=33 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99556-10110 |
12HT..HB31,32 *H,L=110 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13038 |
12HT..HB31,32 |
2 | ||
| 90467-13001 |
12HT..HB31 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13038 |
12HT..HB31,32 |
2 | ||
| 90467-13001 |
12HT..HB31 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 99556-10170 |
12HT..HB31,32 *H,L=170 |
1 | ||
| 99556-10185 |
12HT..HB31 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
12HT..HB31 |
2 | ||
| 90467-13038 |
12HT..HB31,32 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13001 |
12HT..HB31 |
2 | ||
| 90467-13038 |
12HT..HB31,32 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-68010 |
12HT..HB31,32 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16347-28010 |
12HT..HB31,32 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-68010 |
12HT..HB31,32 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
12HT..HB31,32 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-68010 |
12HT..HB31,32 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-68010 |
2H..HB3# |
1 | ||
| 16323-68030 |
12HT..HB31,32 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HB3# |
2 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-20002 |
12HT,2H..HB3# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-68010 |
2H..HB3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-68010 |
2H..HB3# |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-68010 |
12HT,2H..HB3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-68010 |
12HT,2H..HB3# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-68010 |
12HT,2H..HB3# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
12HT,2H..HB3# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-68020 |
12HT,2H..HB3#..WC |
1 | ||
| 16381-68041 |
12HT,2H..HB3#..WC W/TV & VIDEO |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-68010 |
12HT,2H..HB3#..WC |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-68040 |
2H..HB3# |
1 | ||
| 16400-68141 |
12HT..HB31..5F |
1 | ||
| 16400-68142 |
12HT..HB31,32..5F |
1 | ||
| 16400-68140 |
12HT..HB31..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
12HT,2H..HB3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
12HT,2H..HB3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41021 |
2H..HB3# |
1 | ||
| 16401-71010 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-68060 |
12HT..HB31..EX,EXS |
1 | ||
| 16470-90B04 |
12HT..HB31..EX,EXS |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12035 |
12HT,2H..HB3# |
1 | ||
| 90445-12078 |
12HT,2H..HB3# *H,L=280 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90447-12035 |
12HT,2H..HB3# |
1 | ||
| 90445-12078 |
12HT,2H..HB3# *H,L=280 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12HT,2H..HB3# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-90B02 |
12HT,2H..HB3# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 85338-68050 |
12HT,2H..HB3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90B00 |
12HT,2H..HB3# |
1 | ||
| 16405-68040 |
12HT,2H..HB3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-90B00 |
12HT,2H..HB3# |
1 | ||
| 16405-68040 |
12HT,2H..HB3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
12HT,2H..HB3# |
1 | ||
| 85338-70100 |
12HT,2H..HB3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22020 |
12HT,2H..HB3# |
1 | ||
| 85338-70100 |
12HT,2H..HB3# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-68030 |
12HT,2H..HB3# |
1 | ||
| 16571-68070 |
12HT,2H..HB3#..WC ALTERNATOR(24V 85A) |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
12HT,1H#,2H..HB3#,HDB20,3#,HZB3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-68030 |
2H..HB3# |
1 | ||
| 16572-68060 |
12HT,2H..HB3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 90460-50016 |
12HT,2H..HB3# RADIATOR SIDE |
1 | ||
| 96111-10560 |
12HT,2H..HB3# WATER PUMP SIDE |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-68010 |
12HT,2H..HB3# LH |
1 | ||
| 16593-68010 |
12HT,2H..HB3# RH |
1 | ||
| 16593 - GUIDE, RADIATOR AIR, NO.1 | ||||
| 16595-68010 |
12HT,2H..HB3# LH |
1 | ||
| 16593-68010 |
12HT,2H..HB3# RH |
1 | ||
| 16594 - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-68010 |
12HT,2H..HB3# |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-68010 |
12HT,2H..HB3#..WC |
1 | ||
| 16603-68011 |
12HT,2H..HB3#..WC |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-47030 |
12HT,2H..HB3# |
1 | ||
| Common parts | ||||
| 90105-10178 | ||||
| 90179-06070 | ||||
| 90341-12002 | ||||
| 90387-11036 | ||||
| 90430-12005 | ||||
| 90430-12221 | ||||
| 90430-20004 | ||||
| 91611-60812 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60835 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60825 | ||||
| 94110-40600 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
