HB31-MGZRX (1985)

Toyota Coaster

Production Oct 1985 - Jan 1993
Engine 12HT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)2H

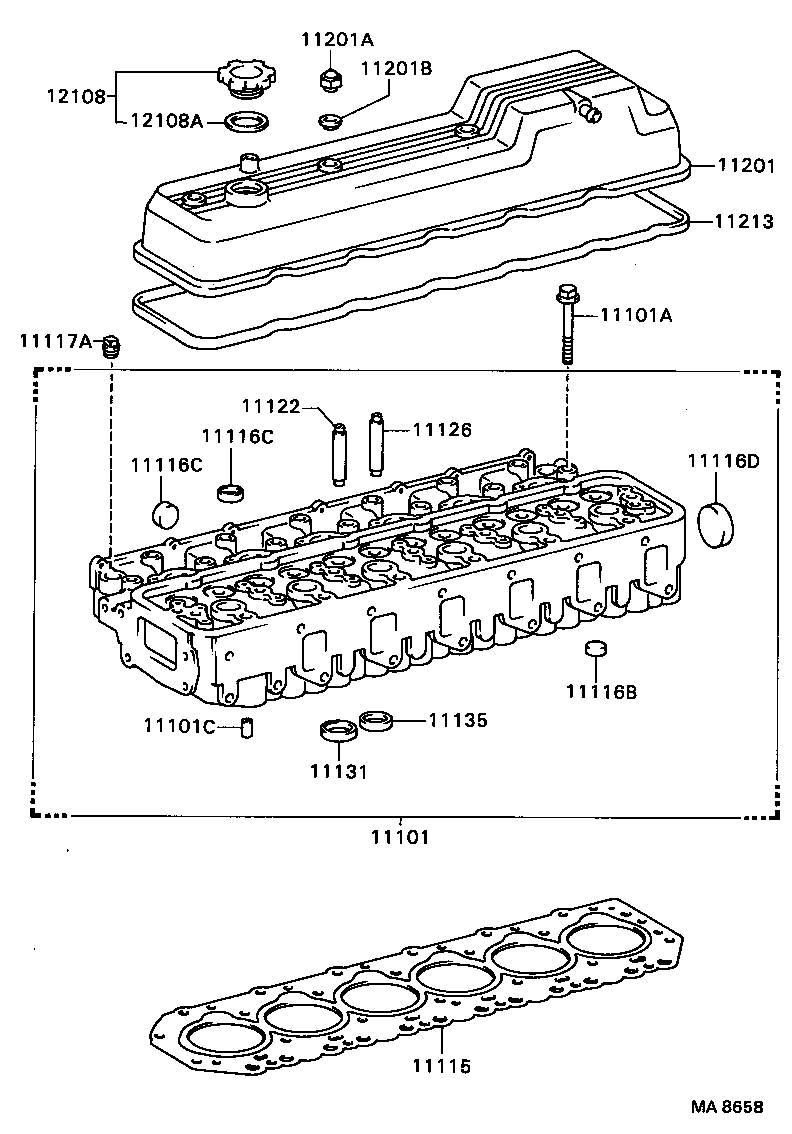

Click highlighted areas on diagram

diagram 11101 11101A 11101C 11115 11116A 11116B 11116C 11116D 11117A 11122 11126 11131 11135 11201 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-68020

12HT..HB31,32

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02070

12HT,2H..HB3#

*12-1.25PX119-25

 26
11101C - TUBE(FOR CYLINDER HEAD)
90440-15141

12HT,2H..HB3#

 6
11115 - GASKET, CYLINDER HEAD
11115-68010

2H..HB3#

 1
11115-68030

12HT..HB31,32

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

12HT,2H..HB3#

OD=25

 5
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HB3#

OD=30

 12
11116D - PLUG, TIGHT, NO.4
96411-45000

12HT,2H..HB3#

OD=50

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

12HT,2H..HB30,31,32

COLD SPEC

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-68010

12HT,2H..HB3#

STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-68010

12HT,2H..HB3#

STD

 6
11131 - SEAT, INTAKE VALVE
11131-68020

12HT..HB31,32

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-68010

12HT,2H..HB3#

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69055

2H..HB3#

 1
11201-68020

12HT..HB31,32

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69055

2H..HB3#

 1
11201-68020

12HT..HB31,32

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

12HT,2H..HB3#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

12HT,2H..HB3#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-68020

12HT..HB31,32

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

12HT,2H..HB3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12HT,2H..HB3#

 1

(8510-9001)12HT

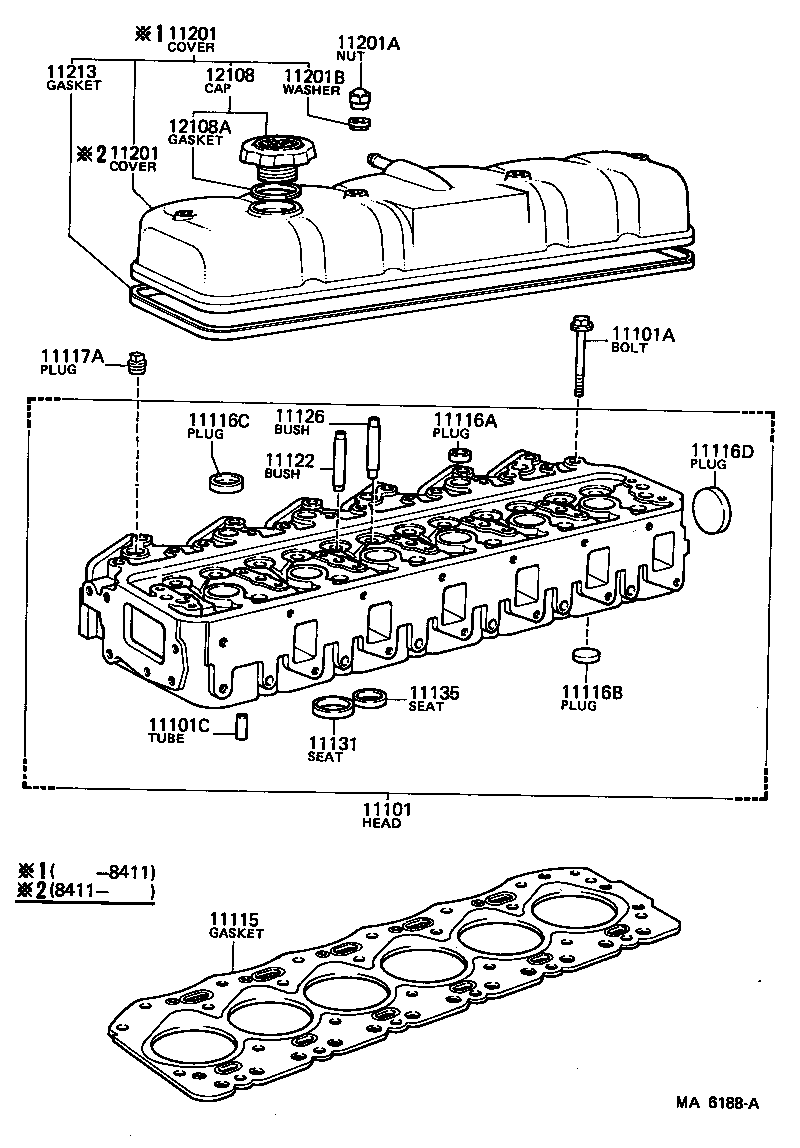

Click highlighted areas on diagram

diagram 11101 11101A 11101C 11115 11116B 11116C 11116C 11116D 11117A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-68020

12HT..HB31,32

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02070

12HT,2H..HB3#

*12-1.25PX119-25

 26
11101C - TUBE(FOR CYLINDER HEAD)
90440-15141

12HT,2H..HB3#

 6
11115 - GASKET, CYLINDER HEAD
11115-68010

2H..HB3#

 1
11115-68030

12HT..HB31,32

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

12HT,2H..HB3#

OD=25

 5
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HB3#

OD=30

 12
11116C - PLUG, TIGHT, NO.3
96411-43000

12HT,2H..HB3#

OD=30

 12
11116D - PLUG, TIGHT, NO.4
96411-45000

12HT,2H..HB3#

OD=50

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

12HT,2H..HB30,31,32

COLD SPEC

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-68010

12HT,2H..HB3#

STD

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-68010

12HT,2H..HB3#

STD

 6
11131 - SEAT, INTAKE VALVE
11131-68020

12HT..HB31,32

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-68010

12HT,2H..HB3#

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-69055

2H..HB3#

 1
11201-68020

12HT..HB31,32

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

12HT,2H..HB3#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

12HT,2H..HB3#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-68020

12HT..HB31,32

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-13030

12HT,2H..HB3#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

12HT,2H..HB3#

 1
