HB31-MGZERX (1985)
Toyota Coaster

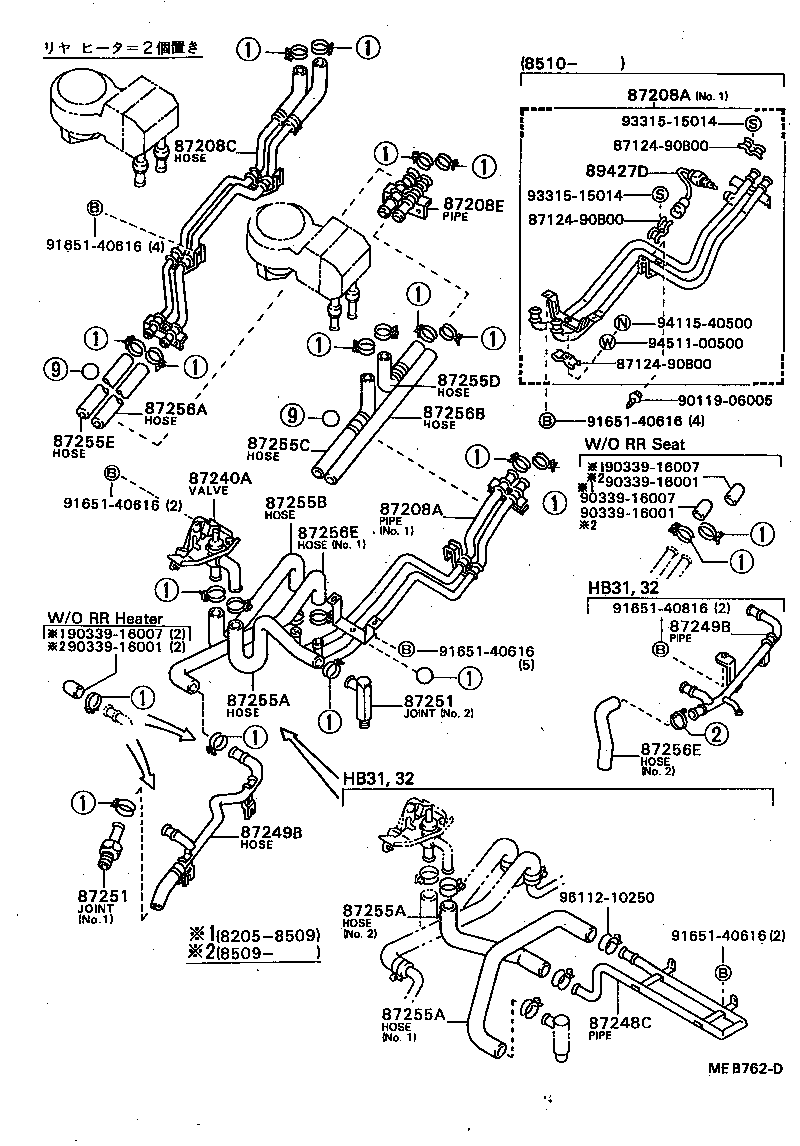

(8205-9001)HB30,31 ; (8507-9001)HB36 ; (8808-9001)HB32
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87209-90B14 |
HB30,31,32,HDB31..(EX,EXS)..(20S,26S) |
1 | ||
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-90B09 |
BB30,31,HB30,31,32..20S,26S,29S |
1 | ||
| 87208-90B09 |
HDB3#,HZB30,31 NO.1 |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87240-90B04 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87208-90B20 |
HB31,32 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-95400 |
HB31,32 NO.2 |
1 | ||
| 87251-60010 |
BB2#,3#,HB30,36 NO.2 |
1 | ||
| 87251-30200 |
BB2#,3#,HB3# NO.1 |
2 | ||
| 87251-90B00 |
BB2#,3# NO.3 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-95400 |
HB31,32 NO.2 |
1 | ||
| 87251-60010 |
BB2#,3#,HB30,36 NO.2 |
1 | ||
| 87251-30200 |
BB2#,3#,HB3# NO.1 |
2 | ||
| 87251-90B00 |
BB2#,3# NO.3 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90B69 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B09 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-90B09 |
HDB20,3#,HZB3# WATER VALVE |
1 | ||
| 87209-90B18 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-90B16 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87209-90B12 |
BB30,31,HB30,31,32,HDB3#,HZB30,31..20S,29S NO.1 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B35 |
HB31,32 NO.2 |
1 | ||
| 87209-90B21 |
BB2#,3# |
1 | ||
| 87245-90B89 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B39 |
HB31,32 NO.1 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B35 |
HB31,32 NO.2 |
1 | ||
| 87209-90B21 |
BB2#,3# |
1 | ||
| 87245-90B89 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B39 |
HB31,32 NO.1 |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-90B00 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS |
1 | ||
| 89427-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| Common parts | ||||
| 87124-90B00 | ||||
| 90119-06005 | ||||
| 90339-16001 | ||||
| 90339-16007 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93315-15014 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
| 96112-10250 | ||||
(8510- )BB2#,3#,HB3#,RB2#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-90B45 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B10 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B27 |
BB2#,31,HB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-90B45 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B10 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B27 |
BB2#,31,HB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-90B04 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87208-90B18 |
HB3# COLD SPEC |
1 | ||
| 87208-90B29 |
HB3# COLD SPEC |
1 | ||
| 87208-90B36 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-90B04 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87208-90B18 |
HB3# COLD SPEC |
1 | ||
| 87208-90B29 |
HB3# COLD SPEC |
1 | ||
| 87208-90B36 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 87245-90B45 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87245-90B40 |
HB31,32 COLD SPEC,NO.1 |
1 | ||
| 87245-90B74 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-90B18 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-90B18 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-90B20 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B20 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-90B20 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B20 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247D - HOSE, HEATER WATER, D | ||||
| 87245-90B87 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87245-90B23 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247E - HOSE, HEATER WATER, E | ||||
| 87245-90B88 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87245-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247F - HOSE, HEATER WATER, F | ||||
| 87245-90B30 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B30 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 88688-90B03 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 88688-90B03 |
BB31,HB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| Common parts | ||||
| 88688-90B03 | ||||
| 88688-90B17 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||

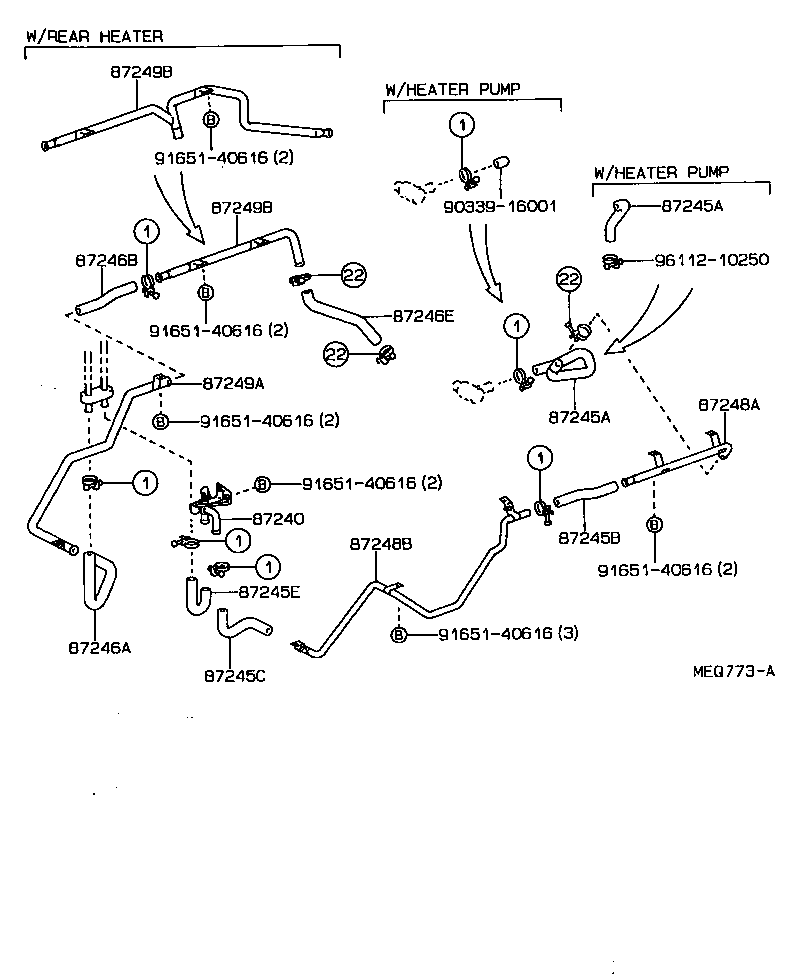

(8510-9001)HB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-90B00 |
HB3# |
1 | ||
| 87208-90B05 |
BB2#,3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B36 |
HB31,32 |
1 | ||
| 87245-90B11 |
BB2#,3# |
1 | ||
| 87245-90B42 |
HB3# COLD SPEC |
1 | ||
| 87245-90B71 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B85 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87245-90B24 |
BB2#,3#,HB3#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B36 |
HB31,32 |
1 | ||
| 87245-90B11 |
BB2#,3# |
1 | ||
| 87245-90B42 |
HB3# COLD SPEC |
1 | ||
| 87245-90B71 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B85 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87245-90B24 |
BB2#,3#,HB3#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B02 |
HB3# |
1 | ||
| 87245-90B41 |
HB3# COLD SPEC |
1 | ||
| 87245-90B03 |
BB2#,3# |
1 | ||
| 99556-30250 |
HDB20,3#,HZB3# *H,L=250,COLD SPEC |
1 | ||
| 99556-30240 |
HDB20,3#,HZB3# *H,L=240 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B02 |
HB3# |
1 | ||
| 87245-90B41 |
HB3# COLD SPEC |
1 | ||
| 87245-90B03 |
BB2#,3# |
1 | ||
| 99556-30250 |
HDB20,3#,HZB3# *H,L=250,COLD SPEC |
1 | ||
| 99556-30240 |
HDB20,3#,HZB3# *H,L=240 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-90B04 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B27 |
HB3# COLD SPEC |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B01 |
HB3# |
1 | ||
| 87245-90B04 |
BB2#,3#,RB2# |
1 | ||
| 87245-90B01 |
HDB20,3#,HZB3# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B01 |
HB3# |
1 | ||
| 87245-90B04 |
BB2#,3#,RB2# |
1 | ||
| 87245-90B01 |
HDB20,3#,HZB3# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B67 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B37 |
HB31,32 |
1 | ||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B67 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B37 |
HB31,32 |
1 | ||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-90B02 |
HB3# COLD SPEC |
1 | ||
| 87208-90B37 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87208-90B34 |
HDB20,3#,HZB3# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-90B01 |
HB3# COLD SPEC |
1 | ||
| 87208-90B35 |
HDB20,3#,HZB3# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-90B01 |
HDB20,3#,HZB3# |
1 | ||
| 87208-90B01 |
HB3# COLD SPEC |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-95400 |
HB31,32 NO.2 |
1 | ||
| 87251-60010 |
BB2#,3#,HB30,36 NO.2 |
1 | ||
| 87251-30200 |
BB2#,3#,HB3# NO.1 |
2 | ||
| 87251-90B00 |
BB2#,3# NO.3 |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87124-90B00 |
HB3# |
2 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87124-90B00 |
HB3# |
2 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 93315-15014 | ||||
(8510-9001)HB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87209-90B14 |
HB30,31,32,HDB31..(EX,EXS)..(20S,26S) |
1 | ||
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-90B09 |
BB30,31,HB30,31,32..20S,26S,29S |
1 | ||
| 87208-90B09 |
HDB3#,HZB30,31 NO.1 |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87240-90B04 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 87245-90B45 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87245-90B40 |
HB31,32 COLD SPEC,NO.1 |
1 | ||
| 87245-90B74 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 87245-90B45 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87245-90B40 |
HB31,32 COLD SPEC,NO.1 |
1 | ||
| 87245-90B74 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-95400 |
HB31,32 NO.2 |
1 | ||
| 87251-60010 |
BB2#,3#,HB30,36 NO.2 |
1 | ||
| 87251-30200 |
BB2#,3#,HB3# NO.1 |
2 | ||
| 87251-90B00 |
BB2#,3# NO.3 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-95400 |
HB31,32 NO.2 |
1 | ||
| 87251-60010 |
BB2#,3#,HB30,36 NO.2 |
1 | ||
| 87251-30200 |
BB2#,3#,HB3# NO.1 |
2 | ||
| 87251-90B00 |
BB2#,3# NO.3 |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90B69 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B09 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-90B09 |
HDB20,3#,HZB3# WATER VALVE |
1 | ||
| 87209-90B18 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-90B16 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87209-90B12 |
BB30,31,HB30,31,32,HDB3#,HZB30,31..20S,29S NO.1 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B35 |
HB31,32 NO.2 |
1 | ||
| 87209-90B21 |
BB2#,3# |
1 | ||
| 87245-90B89 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B39 |
HB31,32 NO.1 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B35 |
HB31,32 NO.2 |
1 | ||
| 87209-90B21 |
BB2#,3# |
1 | ||
| 87245-90B89 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B39 |
HB31,32 NO.1 |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-90B00 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS |
1 | ||
| 89427-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-90B00 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS |
1 | ||
| 89427-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| Common parts | ||||
| 87124-90B00 | ||||
| 90119-06005 | ||||
| 90339-16001 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 93315-15014 | ||||
| 94115-40500 | ||||
| 94511-00500 | ||||
(9001- )HDB20,3#,HZB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B36 |
HB31,32 |
1 | ||
| 87245-90B11 |
BB2#,3# |
1 | ||
| 87245-90B42 |
HB3# COLD SPEC |
1 | ||
| 87245-90B71 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B85 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87245-90B24 |
BB2#,3#,HB3#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-90B36 |
HB31,32 |
1 | ||
| 87245-90B11 |
BB2#,3# |
1 | ||
| 87245-90B42 |
HB3# COLD SPEC |
1 | ||
| 87245-90B71 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B85 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87245-90B24 |
BB2#,3#,HB3#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-90B02 |
HB3# |
1 | ||
| 87245-90B41 |
HB3# COLD SPEC |
1 | ||
| 87245-90B03 |
BB2#,3# |
1 | ||
| 99556-30250 |
HDB20,3#,HZB3# *H,L=250,COLD SPEC |
1 | ||
| 99556-30240 |
HDB20,3#,HZB3# *H,L=240 |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-90B04 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B27 |
HB3# COLD SPEC |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-90B01 |
HB3# |
1 | ||
| 87245-90B04 |
BB2#,3#,RB2# |
1 | ||
| 87245-90B01 |
HDB20,3#,HZB3# |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 99556-30250 |
HDB20,3#,HZB3# *H,L=250 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-90B67 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B37 |
HB31,32 |
1 | ||
| 87245-90B25 |
BB2#,3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-90B02 |
HB3# COLD SPEC |
1 | ||
| 87208-90B37 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87208-90B34 |
HDB20,3#,HZB3# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-90B01 |
HB3# COLD SPEC |
1 | ||
| 87208-90B35 |
HDB20,3#,HZB3# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-90B01 |
HDB20,3#,HZB3# |
1 | ||
| 87208-90B01 |
HB3# COLD SPEC |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-90B02 |
HB31,32 |
1 | ||
| 87208-90B31 |
HDB20,3#,HZB3# |
1 | ||
| 87248-90B00 |
HB31 |
1 | ||
| Common parts | ||||
| 90339-16001 | ||||
| 91651-40616 | ||||
| 96112-10250 | ||||
(9001- )HDB20,3#,HZB30,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87208-90B45 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B10 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208-90B27 |
BB2#,31,HB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-90B04 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87208-90B18 |
HB3# COLD SPEC |
1 | ||
| 87208-90B29 |
HB3# COLD SPEC |
1 | ||
| 87208-90B36 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-90B18 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87247B - HOSE, HEATER WATER, B | ||||
| 87245-90B18 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-90B20 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B20 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247C - HOSE, HEATER WATER, C | ||||
| 87245-90B20 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B20 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247D - HOSE, HEATER WATER, D | ||||
| 87245-90B87 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87245-90B23 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247E - HOSE, HEATER WATER, E | ||||
| 87245-90B88 |
BB2#,31,HDB3#,HZB3#,RB20..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87245-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87247F - HOSE, HEATER WATER, F | ||||
| 87245-90B30 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 87245-90B30 |
BB31,HB3#,HDB3#,HZB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| 87260 - PUMP ASSY, HEATER | ||||
| 87260-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87264 - BRACKET, HEATER WATER HOSE | ||||
| 88688-90B03 |
BB3#,HB3#..10S,20S,29S W/*HP & *CH |
1 | ||
| 88688-90B03 |
BB31,HB3#..10S,20S,26S,29S W/*HP & *CH |
1 | ||
| Common parts | ||||
| 91651-40610 | ||||
| 91651-40616 | ||||
| 91651-60820 | ||||
(9001- )HDB3#,HZB30,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-90B17 |
HB3# NO.2 |
1 | ||
| 87208-90B33 |
HDB20,3#,HZB3# NO.2 |
1 | ||
| 87208-90B03 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S NO.1 |
1 | ||
| 87208-90B16 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG NO.1 |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87209-90B14 |
HB30,31,32,HDB31..(EX,EXS)..(20S,26S) |
1 | ||
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87208-90B09 |
BB30,31,HB30,31,32..20S,26S,29S |
1 | ||
| 87208-90B09 |
HDB3#,HZB30,31 NO.1 |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-90B04 |
BB21,23,24,31,HB30,31,32,HDB20,3#,HZB30,31,RB20..DLX,EX,EXS,SULNG |
1 | ||
| 87240-90B01 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87247A - HOSE, HEATER WATER, A | ||||
| 87245-90B45 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87245-90B40 |
HB31,32 COLD SPEC,NO.1 |
1 | ||
| 87245-90B74 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 87209-90B22 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S COLD SPEC |
1 | ||
| 87245-90B40 |
HB31,32 NO.1 |
1 | ||
| 87245-90B43 |
HB31,32 NO.2 |
1 | ||
| 87245-90B43 |
HB3# COLD SPEC,NO.2 |
1 | ||
| 87209-90B05 |
BB2#,3# |
1 | ||
| 87245-90B70 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B45 |
HB3# COLD SPEC,NO.1 |
1 | ||
| 87245-90B73 |
HDB20,3#,HZB3# COLD SPEC |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 87245-90B69 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B09 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-90B09 |
HDB20,3#,HZB3# WATER VALVE |
1 | ||
| 87209-90B18 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 87245-90B09 |
HDB20,3#,HZB3# WATER VALVE |
1 | ||
| 87209-90B18 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87255D - HOSE, REAR HEATER WATER INLET, D | ||||
| 87245-90B16 |
HB30,31,32,HDB31..20S,26S |
1 | ||
| 87209-90B12 |
BB30,31,HB30,31,32,HDB3#,HZB30,31..20S,29S NO.1 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 87245-90B35 |
HB31,32 NO.2 |
1 | ||
| 87209-90B21 |
BB2#,3# |
1 | ||
| 87245-90B89 |
HDB20,3#,HZB3# |
1 | ||
| 87245-90B39 |
HB31,32 NO.1 |
1 | ||
| 89427D - SWITCH, TEMPERATURE | ||||
| 89427-90B00 |
BB21,23,24,31,HB30,31,32,RB20..DLX,EX,EXS |
1 | ||
| 89427-90B00 |
HDB20,3#,HZB30,31 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 91651-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
