HB30-MGZR (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

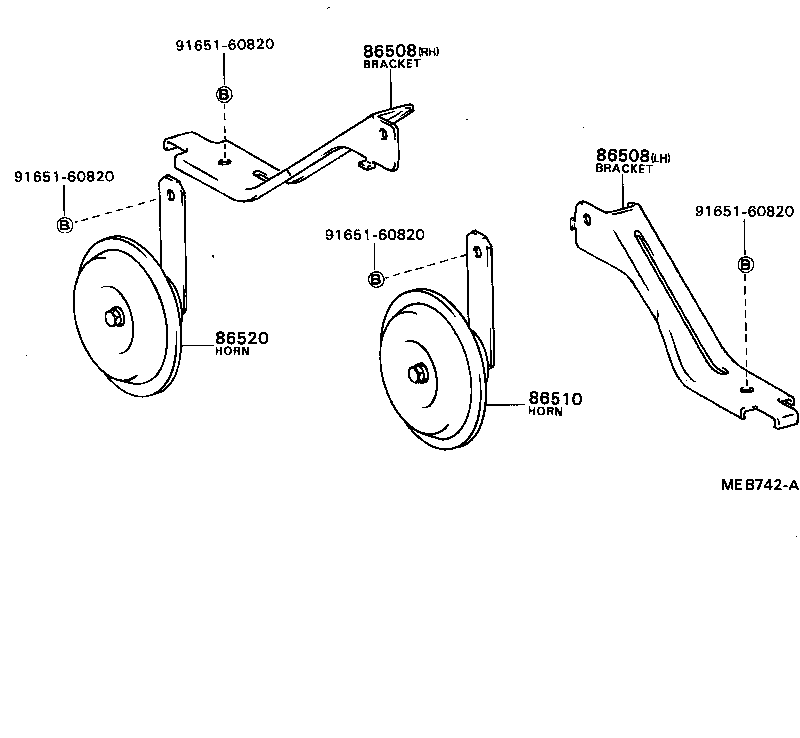

Click highlighted areas on diagram

diagram 86508 86508 86510 86520 9165160820 9165160820 9165160820 9165160820
Part # Description Qty Price
86508 - BRACKET SUB-ASSY, HORN
86591-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

RH

 1
86592-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LH

 1
86508 - BRACKET SUB-ASSY, HORN
86591-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

RH

 1
86592-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

LH

 1
86510 - HORN ASSY, HIGH PITCHED
86510-60110

BB2#,3#,HB3#

 1
86520 - HORN ASSY, LOW PITCHED
86520-60100

BB2#,3#,HB3#

 1
Common parts
91651-60820
