HB30-MGZR (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

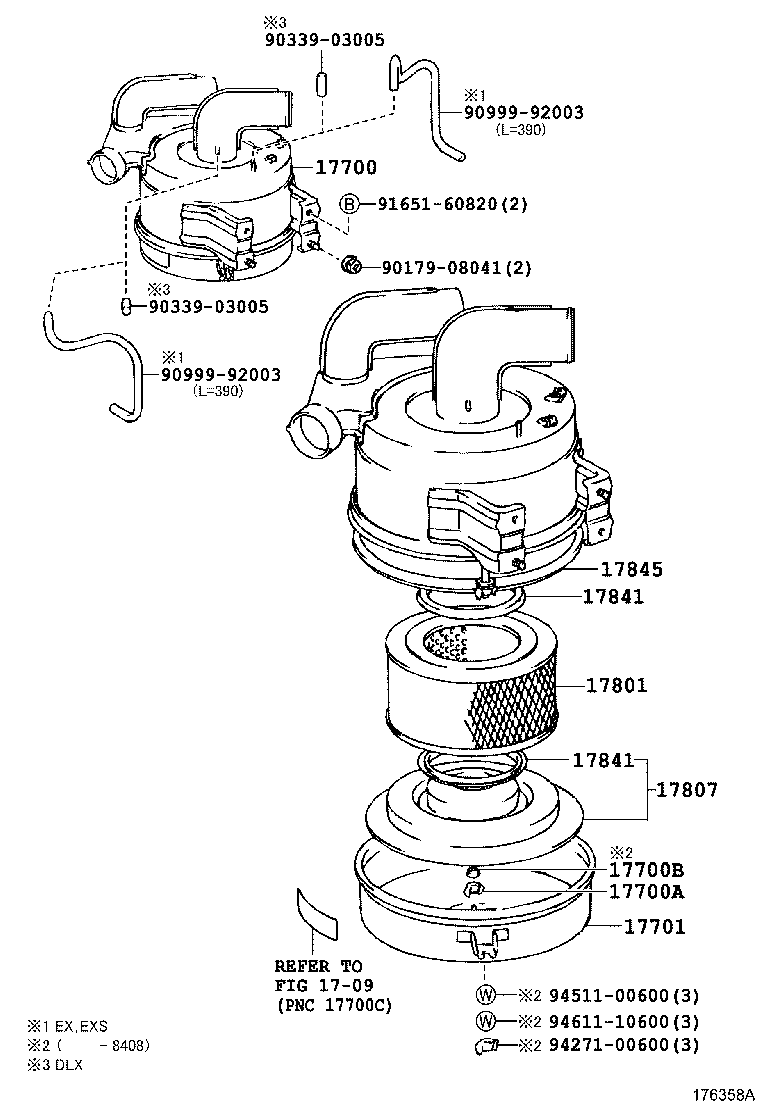

ILLUST NO. 1 OF 2(8205-9001)2H

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17701 17801 17807 17841 17841 17845 9017908041 9033903005 9033903005 9099992003 9099992003 9165160820 9427100600 9451100600 9461110600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-68110

2H..HB30

COLD SPEC

 1
17700-68100

2H..HB30

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00800

2H..HB30

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08004

2H..HB30

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-68100

2H..HB30

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-68020

1HZ,2H..HB30,36,HZB3#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-68010

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 1
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
17841 - GASKET, FILTER ELEMENT
17841-68010

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-68020

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 1
Common parts
90179-08041
90339-03005
90999-92003
91651-60820
94271-00600
94511-00600
94611-10600
Linked diagrams
1709

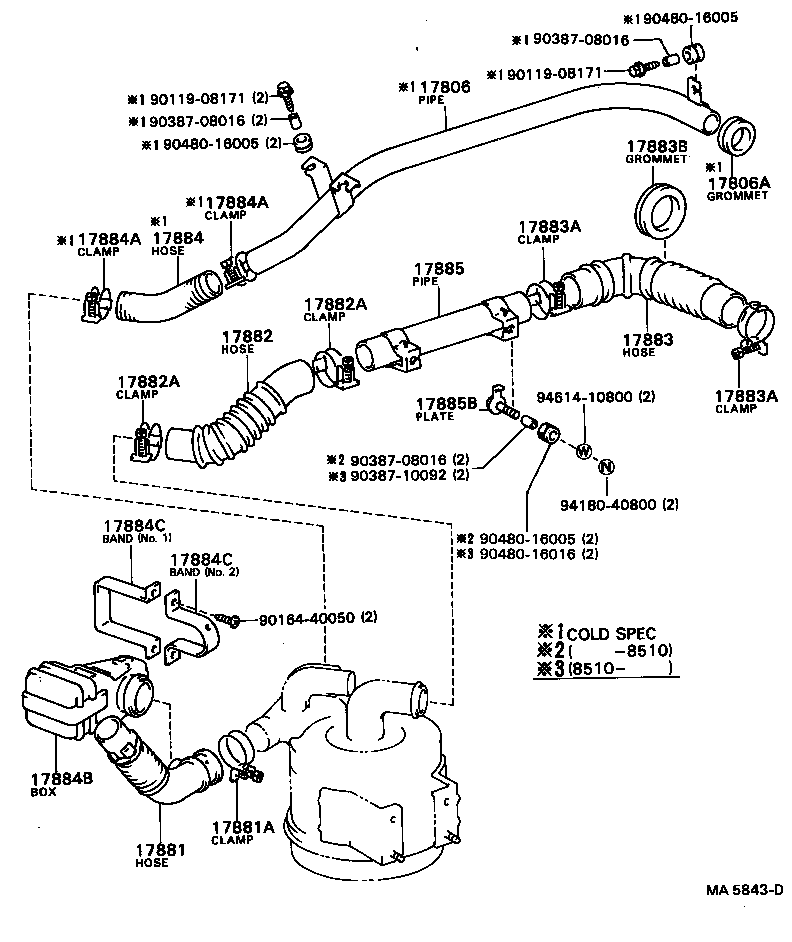

ILLUST NO. 2 OF 2(8205-9001)2H

Click highlighted areas on diagram

diagram 17806 17806A 17881 17881A 17882 17882A 17882A 17883 17883A 17883A 17883B 17884 17884A 17884A 17884B 17884C 17884C 17885 17885B 9011908171 9011908171 9016440050 9038708016 9038708016 9038708016 9038710092 9048016005 9048016005 9048016005 9048016016 9418040800 9461410800
Part # Description Qty Price
17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2
59105-90B02

2H..HB30..CBU

COLD SPEC

 1
17806A - GROMMET, AIR CLEANER PIPE
90480-60386

2H..HB3#..CBU

COLD SPEC

 1
17881 - HOSE, AIR CLEANER, NO.1
59131-90B01

2H..HB30,36..CBU

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

2H..HB30,36..CBU

 1
17882 - HOSE, AIR CLEANER, NO.2
59132-90B03

2H..HB30,36..CBU

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

2H..HB30,36..CBU

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

2H..HB30,36..CBU

 2
17883 - HOSE, AIR CLEANER, NO.3
59133-90B02

2H..HB30,36..CBU

 1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

2H..HB30,36..CBU

 2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10780

2H..HB30,36..CBU

 2
17883B - GROMMET, AIR CLEANER HOSE
90950-01349

2H..HB3#..CBU

 1
17884 - HOSE, AIR CLEANER, NO.4
59171-90B01

2H..HB30..CBU

COLD SPEC

 1
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10600

2H..HB30,36..CBU

COLD SPEC

 2
17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4)
96111-10600

2H..HB30,36..CBU

COLD SPEC

 2
17884B - BOX, AIR CLEANER, NO.1
59137-90B00

12HT,2H..HB3#..CBU

 1
17884C - BAND, AIR CLEANER BOX
59135-90B00

2H..HB30,36..CBU

NO.2

 1
59136-90B00

12HT,2H..HB3#..CBU

NO.1

 1
17884C - BAND, AIR CLEANER BOX
59135-90B00

2H..HB30,36..CBU

NO.2

 1
59136-90B00

12HT,2H..HB3#..CBU

NO.1

 1
17885 - PIPE, AIR CLEANER
59101-90B00

2H..HB30,36..CBU

 1
17885B - PLATE, PIPE SUPPORT
59117-90B00

2H..HB3#..CBU

 2
Common parts
90119-08171
90164-40050
90387-08016
90387-10092
90480-16005
90480-16016
94180-40800
94614-10800
