HB30-MGZER (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )BB2#,HB3#,HDB3#,HZB3#,RB2#..WC

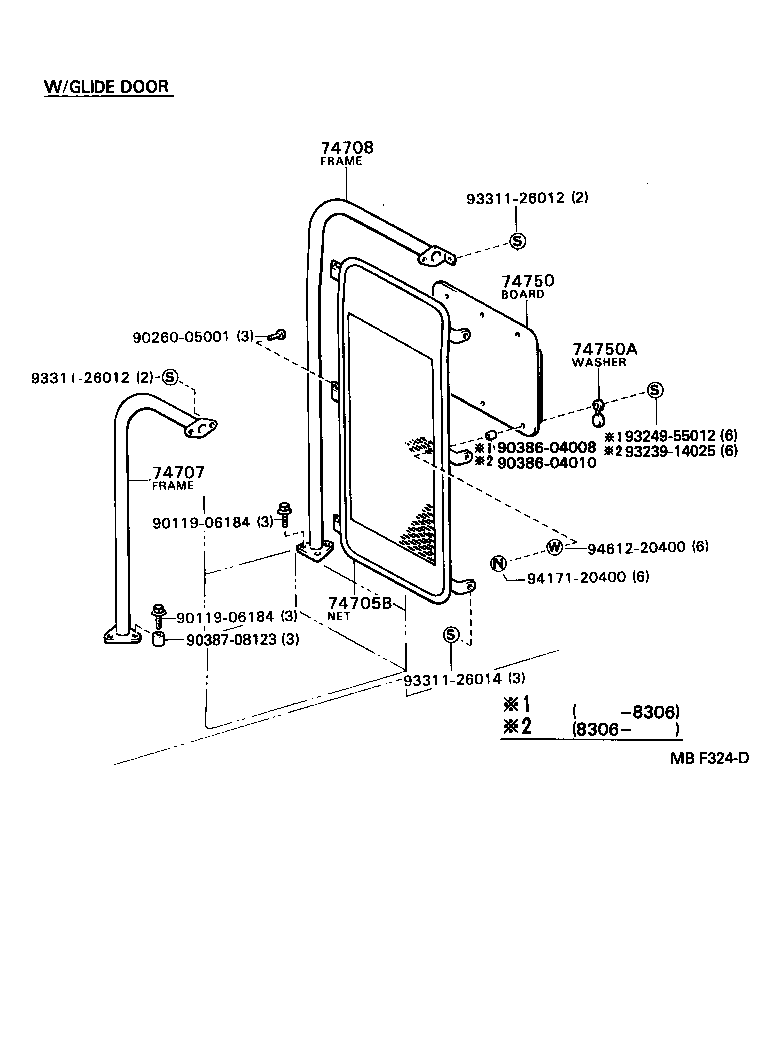

Click highlighted areas on diagram

diagram 74705B 74707 74708 74750 74750A 9011906184 9011906184 9026005001 9038604008 9038604010 9038708123 9323914025 9324955012 9331126012 9331126012 9331126014 9417120400 9461220400
Part # Description Qty Price
74705B - NET SUB-ASSY, HAND GRIP PROTECTOR
74705-90B00

BB20,21,23,24,30,31,HB30,31,32,HDB3#,HZB30,31,RB20..WC

 1
74707 - FRAME SUB-ASSY, HAND GRIP, NO.1
74707-90B03

BB2#,HB3#,HZB36,RB2#..WC

 1
74708 - FRAME SUB-ASSY, HAND GRIP, NO.2
74708-90B02

BB20,21,23,24,HB30,31,32,HDB3#,HZB30,31,RB20..WC

 1
Common parts
90119-06184
90260-05001
90386-04008
90386-04010
90387-08123
93239-14025
93249-55012
93311-26012
93311-26014
94171-20400
94612-20400
