HB30-MGZER (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

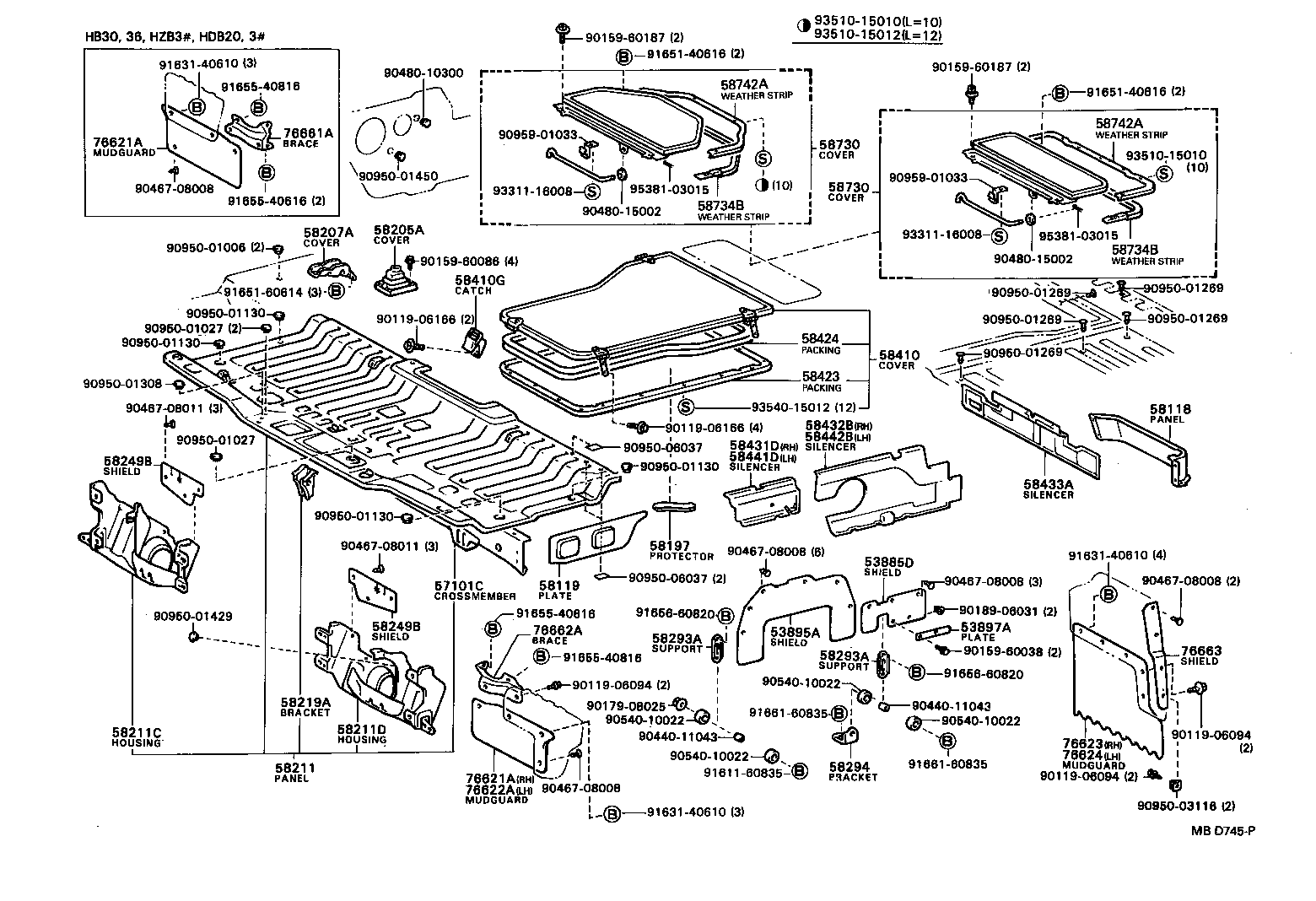

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 53885D 53895A 53897A 57101C 58118 58119 58197 58205A 58207A 58211 58211C 58211D 58219A 58249B 58249B 58293A 58293A 58294 58410 58410G 58423 58424 58431D 58432B 58433A 58441D 58442B 58730 58730 58734B 58734B 58742A 58742A 76621A 76621A 76622A 76623 76624 76661A 76662A 76663 9011906094 9011906094 9011906094 9011906166 9011906166 9015960038 9015960086 9015960187 9015960187 9017908025 9018906031 9044011043 9044011043 9046708008 9046708008 9046708008 9046708008 9046708008 9046708011 9046708011 9048010300 9048015002 9048015002 9054010022 9054010022 9054010022 9054010022 9095001006 9095001027 9095001027 9095001130 9095001130 9095001130 9095001130 9095001269 9095001269 9095001269 9095001269 9095001269 9095001308 9095001429 9095001450 9095003116 9095006037 9095006037 9095901033 9095901033 9161160835 9163140610 9163140610 9163140610 9165140616 9165140616 9165160614 9165540616 9165540616 9165540816 9165540816 9165660820 9165660820 9166160835 9166160835 9331116008 9331116008 9351015010 9351015010 9351015012 9354015012 9538103015 9538103015
Part # Description Qty Price
53885D - SHIELD, SIDE FLOOR APRON, REAR
53885-90B00

BB2#,3#,HB3#,RB2#

 2
53895A - SHIELD, SIDE FLOOR APRON, FRONT
53895-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
53897A - PLATE, SIDE FLOOR APRON SHIELD
53897-90B00

HB3#,RB2#

 1
57101C - CROSSMEMBER SUB-ASSY, FLOOR, NO.1
57101-90B00

BB2#,3#,HB3#,RB2#

 1
58118 - PANEL, FRONT FLOOR, REAR LOWER CENTER
58118-90B00

HB3#,HDB3#,HZB3#

 1
58119 - PLATE, FRONT FLOOR SIDE, FRONT
58119-90B00

BB20,21,26,3#,HB30,36,RB2#

 1
58197 - PROTECTOR, ENGINE SERVICE HOLE
58197-90B00

HB30,RB20

 1
58205A - COVER SUB-ASSY, SHIFT LEVER BOOT
58207-95403

BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..5F

 1
58207A - COVER SUB-ASSY, PARKING BRAKE CABLE
58207-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
58211 - PANEL, FRONT FLOOR
58008-90B08

HB30

W/*AUD

 1
58008-90B25

HB30

COLD SPEC,W/*AUD

 1
58211C - HOUSING SUB-ASSY, HEADLAMP, RH
58201-90B01

HB30,36

 1
58201-90B00

BB2#,3#,HB31,32,RB2#

 1
58211D - HOUSING SUB-ASSY, HEADLAMP, LH
58202-90B00

BB2#,3#,RB2#

 1
58202-90B01

HB30,36

 1
58219A - BRACKET, FRONT FLOOR TO GRILLE
58219-90B00

BB2#,3#,HB3#,RB2#

 1
58249B - SHIELD, HEADLAMP COVER
58249-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
58249B - SHIELD, HEADLAMP COVER
58249-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
58293A - SUPPORT, FRONT FLOOR SIDE APRON
58293-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 4
58293A - SUPPORT, FRONT FLOOR SIDE APRON
58293-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 4
58294 - BRACKET, FRONT FLOOR SIDE APRON
58294-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
58410 - COVER, ENGINE SERVICE HOLE
58720-90B00

BB2#,3#,HB30,RB20..DLX,EX

 1
58720-90B01

HB30..20S

 1
58410G - CATCH, ENGINE SERVICE HOLE COVER
58709-90B01

HB30,31,32,HDB20,31..EXS,SULNG

 2
58709-90B00

BB2#,3#,HB30,36,HDB3#,HZB3#,RB2#..DLX,EX,STD

 2
58423 - PACKING, ENGINE SERVICE HOLE COVER, NO.2
58741-90B00

BB2#,3#,HB3#,RB2#

 1
58431D - SILENCER, ENGINE ROOM SIDE, FRONT RH
58431-90B00

BB20,21,30,31,HB30,HZB30,RB20..DLX,EX,EXS

 1
58432B - SILENCER, ENGINE ROOM SIDE, REAR RH
58432-90B01

HB30

 1
58432-90B02

HB30

COLD SPEC

 1
58433A - SILENCER, ENGINE ROOM SIDE END
58433-90B04

HB30

 1
58441D - SILENCER, ENGING ROOM SIDE, FRONT LH
58441-90B00

BB20,21,30,31,HB30..DLX,EX,EXS

 1
58442B - SILENCER, ENGING ROOM SIDE, REAR LH
58442-90B04

HB30

 1
58730 - COVER ASSY, ENGINE SERVICE, REAR
58730-90B02

HB30,36..DLX,EX

 1
58730-90B03

HB30..20S

 1
58730 - COVER ASSY, ENGINE SERVICE, REAR
58730-90B02

HB30,36..DLX,EX

 1
58730-90B03

HB30..20S

 1
76621A - MUDGUARD, FRONT BODY, FRONT RH
76621-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76621A - MUDGUARD, FRONT BODY, FRONT RH
76621-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76622A - MUDGUARD, FRONT BODY, FRONT LH
76622-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76623 - MUDGUARD, FRONT BODY, REAR RH
76623-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76624 - MUDGUARD, FRONT BODY, REAR LH
76624-90B00

BB2#,3#,HB3#,RB2#..10S,20S,26S,29S

 1
76661A - BRACE, FRONT MUDGUARD, FRONT RH
76661-90B00

HB30,36,HDB20,3#,HZB3#

 1
76662A - BRACE, FRONT MUDGUARD, FRONT LH
76662-90B00

BB2#,3#,RB2#

 1
76663 - SHIELD, FRONT MUDGUARD
76663-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
Common parts
90119-06094
90119-06166
90159-60038
90159-60086
90159-60187
90179-08025
90189-06031
90440-11043
90467-08008
90467-08011
90480-10300
90480-15002
90540-10022
90950-01006
90950-01027
90950-01130
90950-01269
90950-01308
90950-01429
90950-01450
90950-03116
90950-06037
90959-01033
91611-60835
91631-40610
91651-40616
91651-60614
91655-40616
91655-40816
91656-60820
91661-60835
93311-16008
93510-15010
93510-15012
93540-15012
95381-03015
