HB30-MGZER (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8411)2H

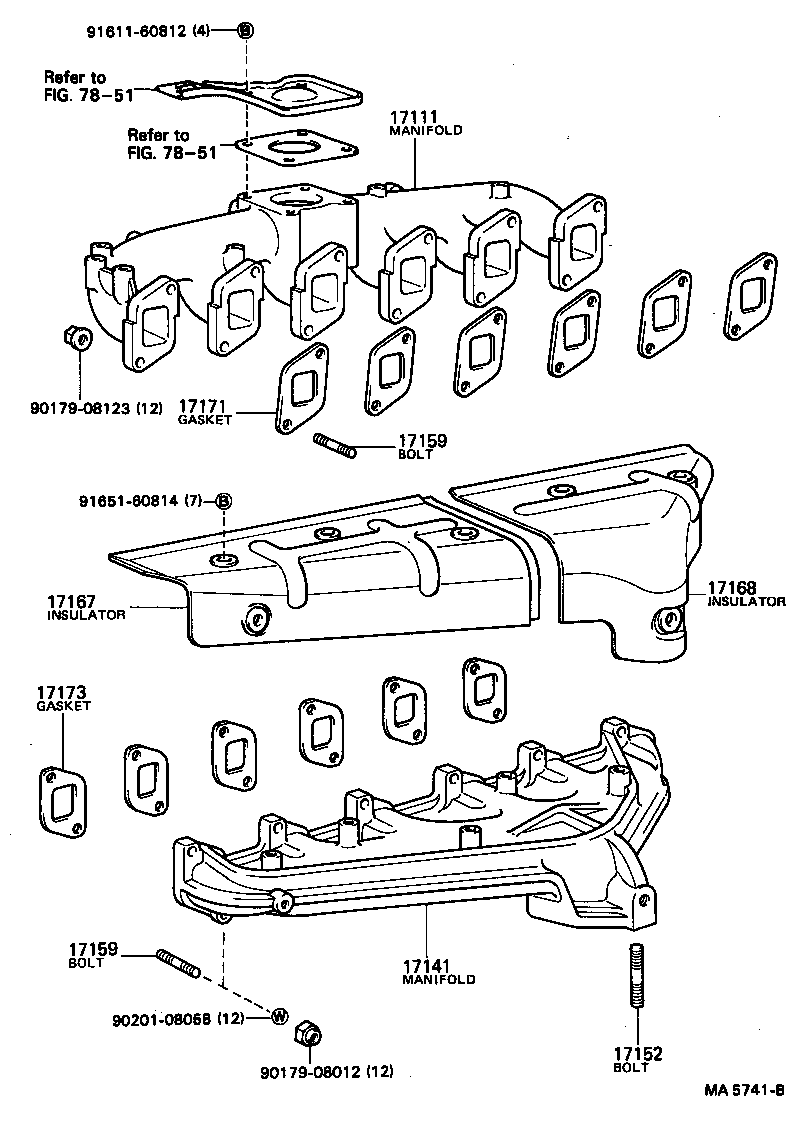

Click highlighted areas on diagram

diagram 17111 17141 17152 17159 17159 17167 17168 17171 17173 7851 7851 9017908012 9017908123 9020108058 9161160812 9165160814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-68040

2H..HB3#

 1
17141 - MANIFOLD, EXHAUST
17141-68011

2H..HB3#

 1
17141-68010

2H..HB30

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10029

2H..HB30

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60835

2H..HB30

L=45,S=10&16

 12
90116-08131

2H..HB30,36

INTAKE MANIFOLD

 12
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-60835

2H..HB30

L=45,S=10&16

 12
90116-08131

2H..HB30,36

INTAKE MANIFOLD

 12
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-68010

2H..HB30,36

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-68020

2H..HB30,36

 1
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-68010

2H..HB3#

 6
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-68010

2H..HB30,36

 6
Common parts
90179-08012
90179-08123
90201-08058
91611-60812
91651-60814
Linked diagrams
7851
