HB30-MDZR (1982)
Toyota Coaster
(8205-8408)DLX,STD

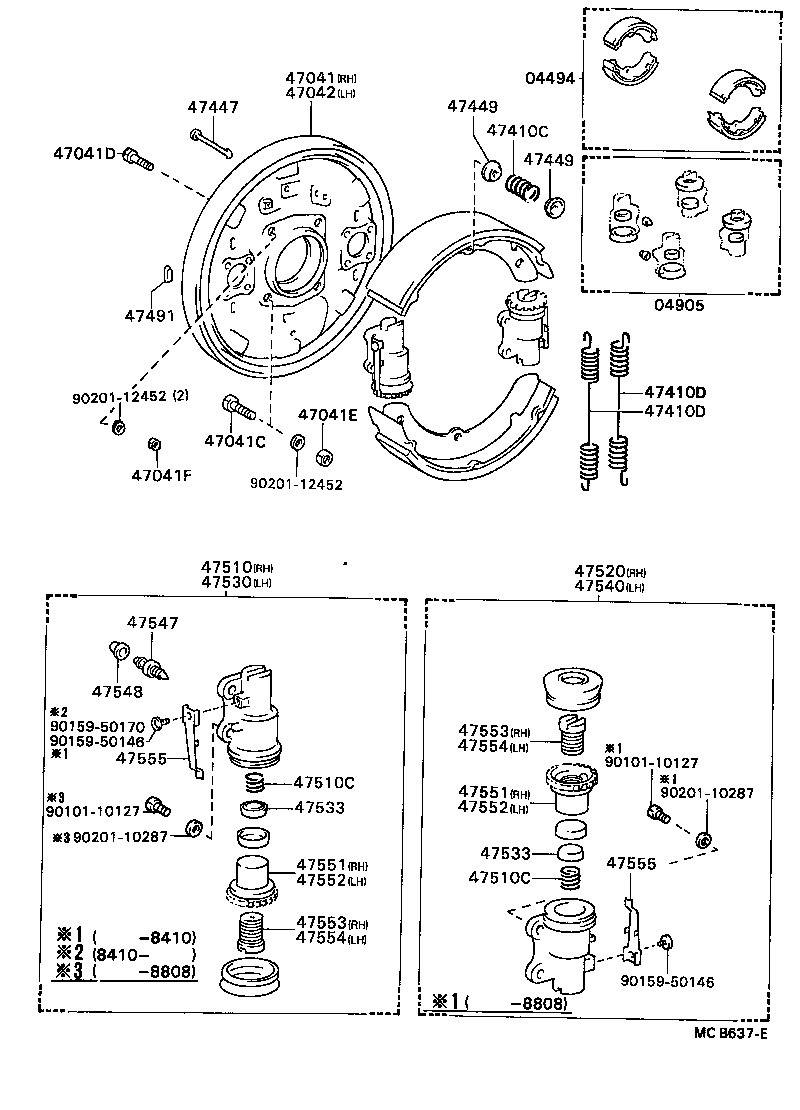

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36060 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 04496-36060 |
BB2#,3#,HB30,RB20..DLX,STD REBUILT |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36050 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36090 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-16001 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD *16-1.5PX65-25 |
2 | ||
| 90102-16002 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD *16-1.5PX74-27 |
2 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12060 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71600 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36060 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29216 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29216 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47410H - RIVET, BRAKE LINING(FOR FRONT BRAKE) | ||||
| 90266-05005 |
BB2#,3#,HB30,RB20..DLX,STD |
48 | ||
| 47410H - RIVET, BRAKE LINING(FOR FRONT BRAKE) | ||||
| 90266-05005 |
BB2#,3#,HB30,RB20..DLX,STD |
48 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39176 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47510-39175 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39135 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47520-39136 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39175 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47530-39176 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-25020 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-25020 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39135 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47540-39136 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555-25010 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555-25010 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-36080 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-36080 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| Common parts | ||||
| 90101-10027 | ||||
| 90149-50001 | ||||
| 90201-12452 | ||||
| 94511-00500 | ||||
| 94512-01000 | ||||
| 95381-04030 | ||||
(8408- )BB21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04494 - SHOE KIT, FRONT BRAKE | ||||
| 04494-36060 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 04496-36060 |
BB2#,3#,HB30,RB20..DLX,STD REBUILT |
1 | ||
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-36050 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-36090 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47041C - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-16001 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD *16-1.5PX65-25 |
2 | ||
| 90102-16002 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD *16-1.5PX74-27 |
2 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12060 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47041E - NUT(FOR BACKING PLATE TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71600 |
BB20,21,23,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-36060 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29216 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-29216 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-36020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-39176 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47510-39175 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-08122 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-39135 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47520-39136 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-39175 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47530-39176 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-30011 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-39135 |
BB2#,3#,HB30,RB20..DLX,STD |
1 | ||
| 47540-39136 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..5F |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
BB20,21,23,26,3#,HB30,31,36,HZB36,RB2#..DLX,STD |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-36110 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36030 |
BB2#,3#,HB30,RB20..DLX,STD |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555-25010 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-36050 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| 47555-25010 |
BB2#,3#,HB30,RB20..DLX,STD |
4 | ||
| 47555-36040 |
BB2#,3#,HB3#,RB2#..DLX,STD |
4 | ||
| Common parts | ||||
| 90101-10127 | ||||
| 90159-50146 | ||||
| 90159-50170 | ||||
| 90201-10287 | ||||
| 90201-12452 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
