HB30-MDZ (1982)
Toyota Coaster

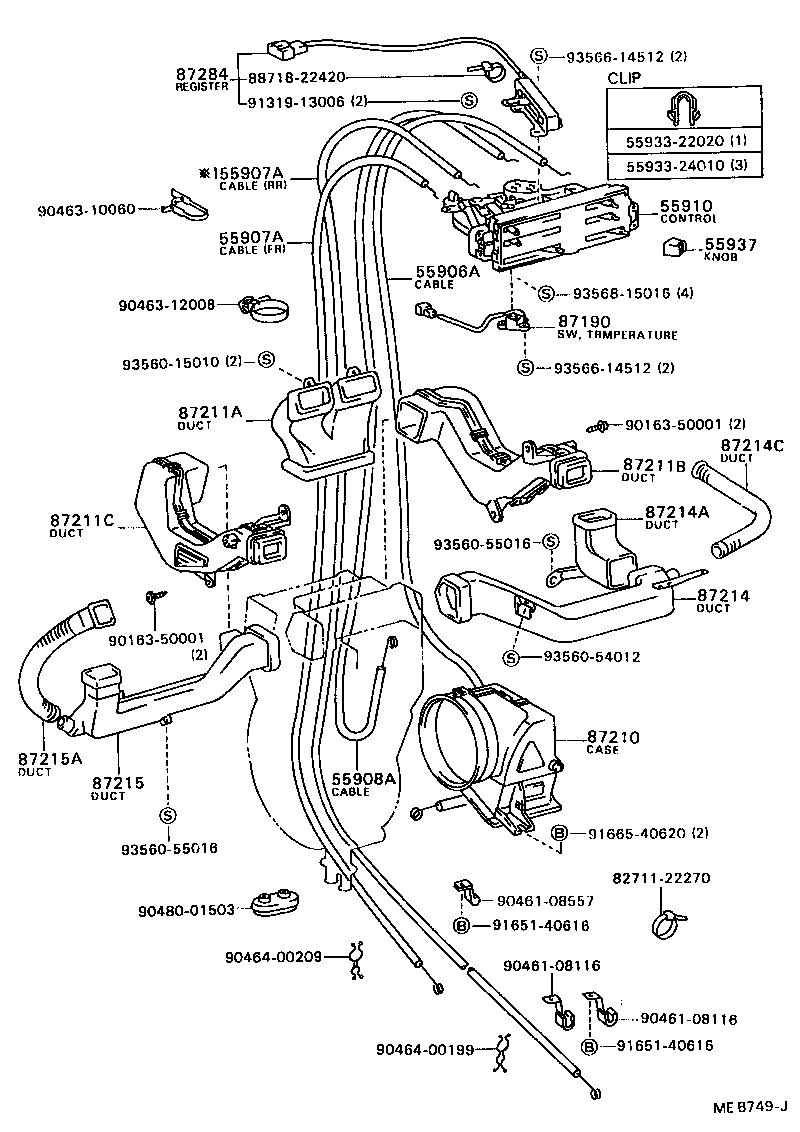

ILLUST NO. 1 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90B01 |
BB20,30,HB30,RB20 RR |
1 | ||
| 55907-90B03 |
BB2#,3#,HB3#,RB2# RR |
1 | ||
| 55907-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90B01 |
BB20,30,HB30,RB20 RR |
1 | ||
| 55907-90B03 |
BB2#,3#,HB3#,RB2# RR |
1 | ||
| 55907-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-90B00 |
BB20,21,23,24,30,31,HB30,31,32,HDB20,3#,HZB30,31,RB20 |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
6 | ||
| 87190 - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-90B04 |
BB2#,3#,HB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87210 - DAMPER ASSY, AIR | ||||
| 87210-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 55835-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87202-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87203-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55096-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87214A - DUCT, AIR, SIDE NO.2 RH | ||||
| 55095-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87214C - DUCT, AIR, SIDE NO.4 RH | ||||
| 55824-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55097-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55972-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# |
1 | ||
| Common parts | ||||
| 55933-22020 | ||||
| 55933-24010 | ||||
| 82711-22270 | ||||
| 88718-22420 | ||||
| 90163-50001 | ||||
| 90461-08116 | ||||
| 90461-08557 | ||||
| 90463-10060 | ||||
| 90463-12008 | ||||
| 90464-00199 | ||||
| 90464-00209 | ||||
| 90480-01503 | ||||
| 91319-13006 | ||||
| 91651-40616 | ||||
| 91665-40620 | ||||
| 93560-15010 | ||||
| 93560-54012 | ||||
| 93560-55016 | ||||
| 93566-14512 | ||||
| 93568-15016 | ||||

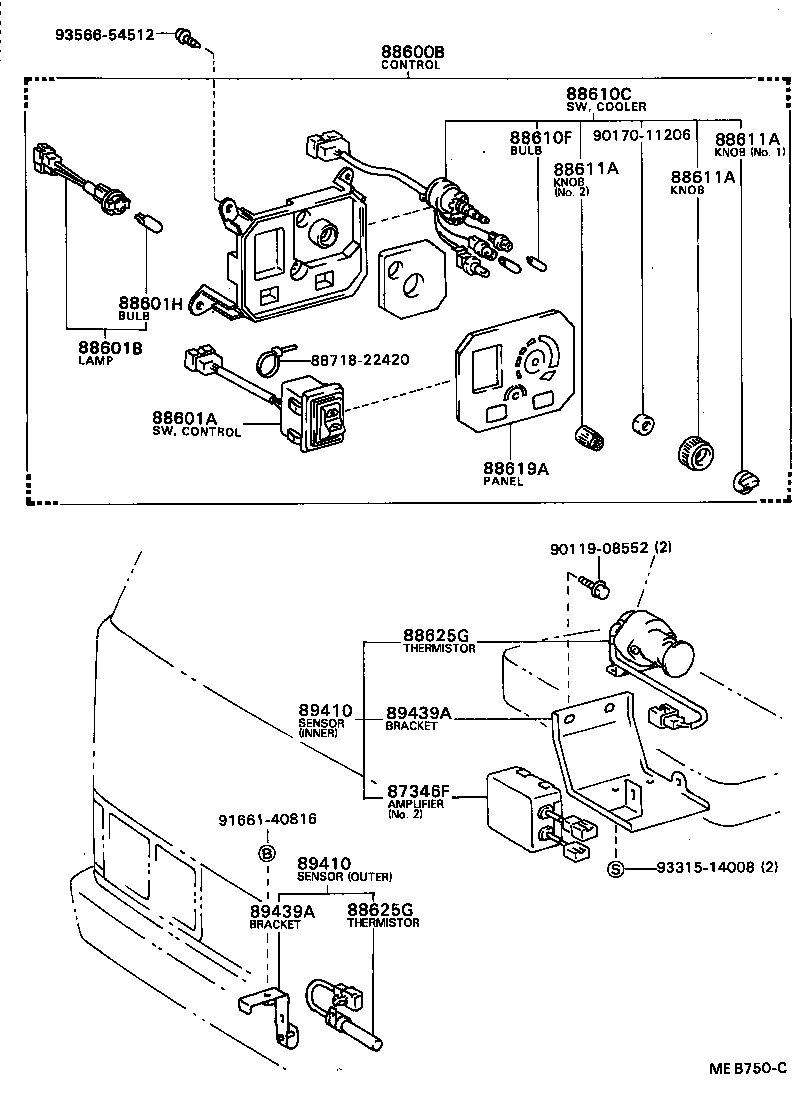

ILLUST NO. 2 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88718-22420 | ||||
| 90119-08552 | ||||
| 90170-11206 | ||||
| 91661-40816 | ||||
| 93315-14008 | ||||
| 93566-54512 | ||||

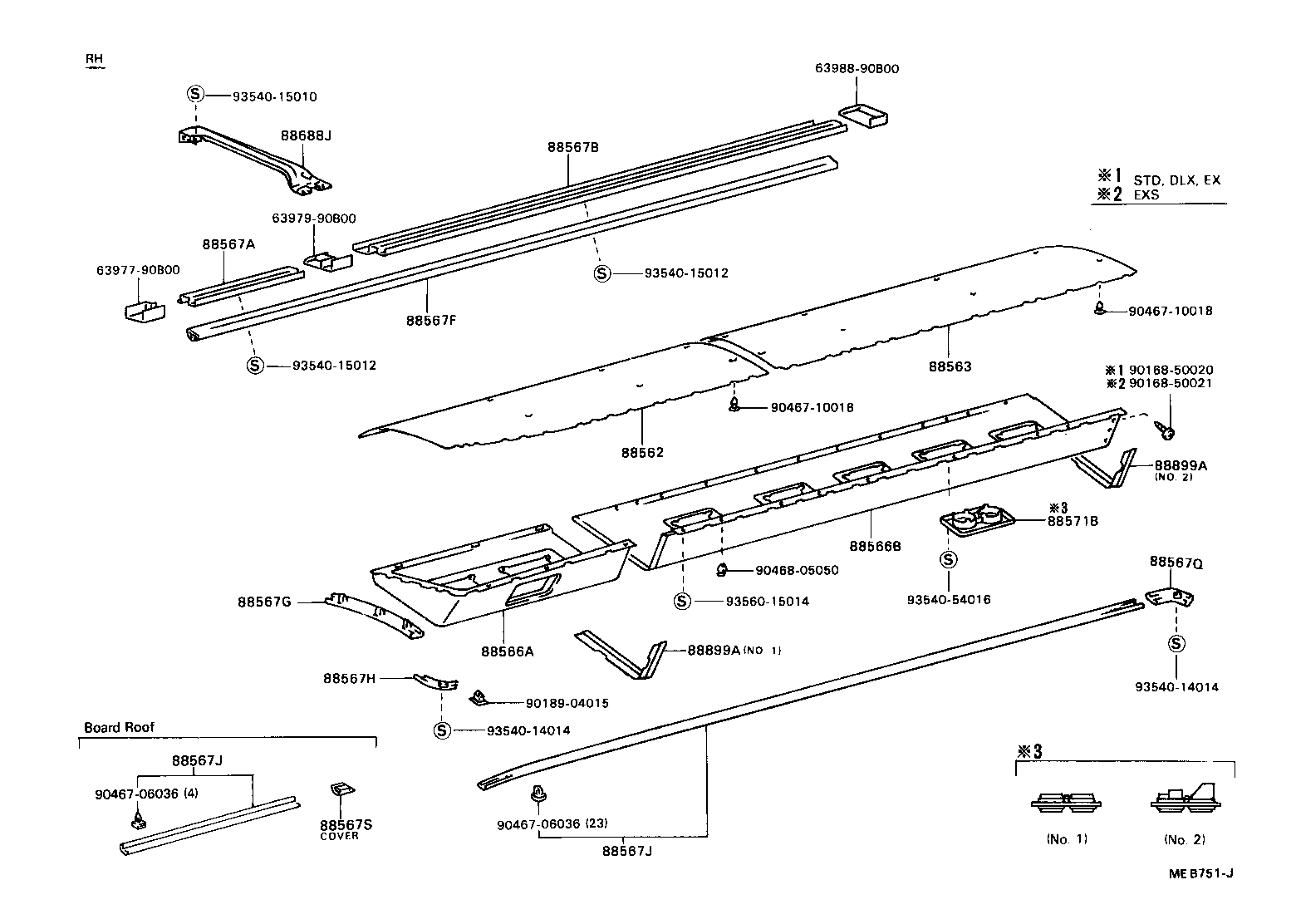

ILLUST NO. 4 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63977-90B00 | ||||
| 63979-90B00 | ||||
| 63988-90B00 | ||||
| 90168-50020 | ||||
| 90168-50021 | ||||
| 90189-04015 | ||||
| 90467-06036 | ||||
| 90467-10018 | ||||
| 90468-05050 | ||||
| 93540-14014 | ||||
| 93540-15010 | ||||
| 93540-15012 | ||||
| 93540-54016 | ||||
| 93560-15014 | ||||

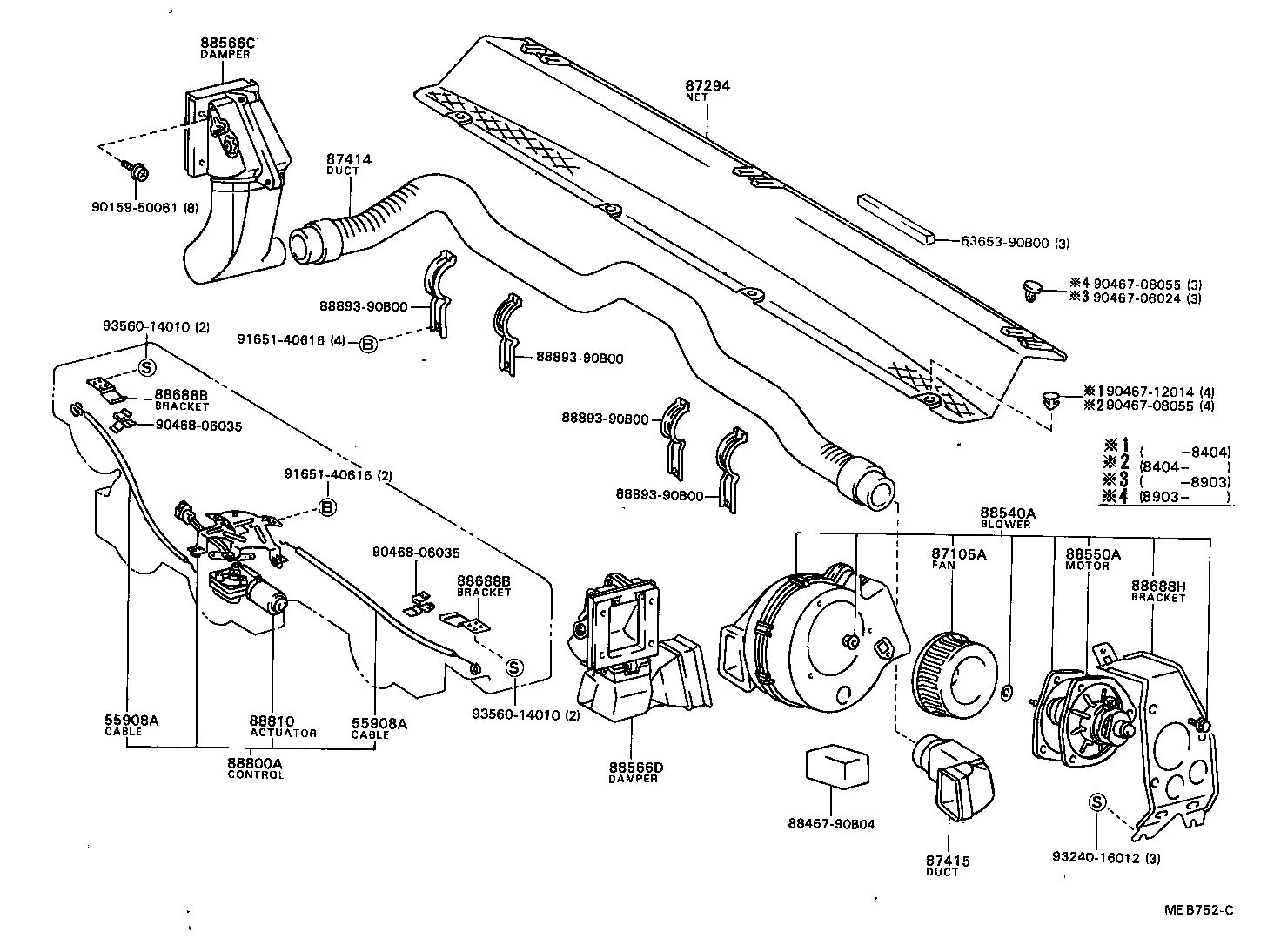

ILLUST NO. 5 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR HEATER |
1 | ||
| Common parts | ||||
| 63653-90B00 | ||||
| 88467-90B04 | ||||
| 88893-90B00 | ||||
| 90159-50061 | ||||
| 90467-06024 | ||||
| 90467-08055 | ||||
| 90467-12014 | ||||
| 90468-06035 | ||||
| 91651-40616 | ||||
| 93240-16012 | ||||
| 93560-14010 | ||||

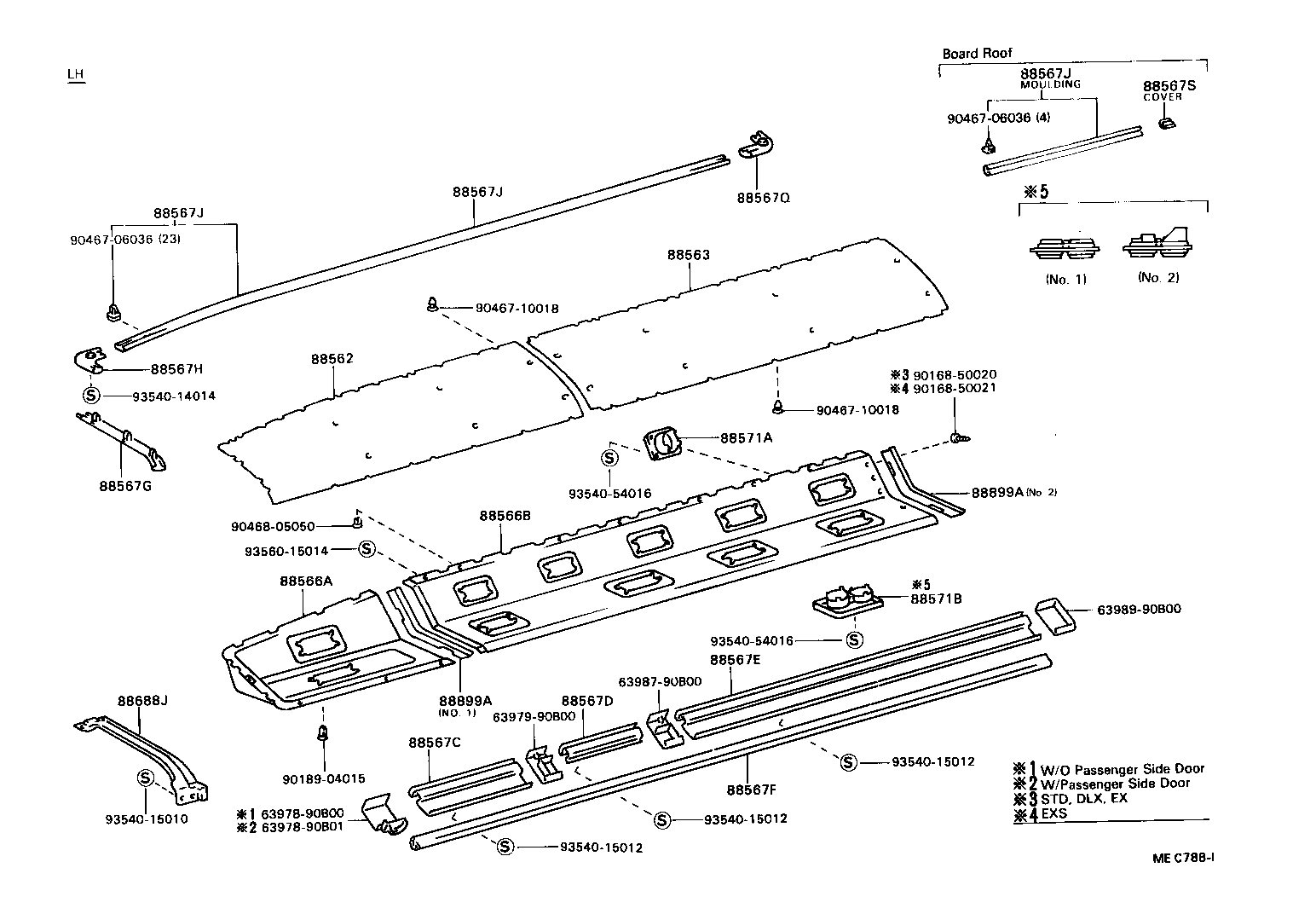

ILLUST NO. 4 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 63978-90B00 | ||||
| 63978-90B01 | ||||
| 63979-90B00 | ||||
| 63987-90B00 | ||||
| 63989-90B00 | ||||
| 90168-50020 | ||||
| 90168-50021 | ||||
| 90189-04015 | ||||
| 90467-06036 | ||||
| 90467-10018 | ||||
| 90468-05050 | ||||
| 93540-14014 | ||||
| 93540-15010 | ||||
| 93540-15012 | ||||
| 93540-54016 | ||||
| 93560-15014 | ||||
ILLUST NO. 6 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05001 | ||||
| 90183-05094 | ||||
| 90467-62046 | ||||
| 91651-40616 | ||||
| 93315-14016 | ||||

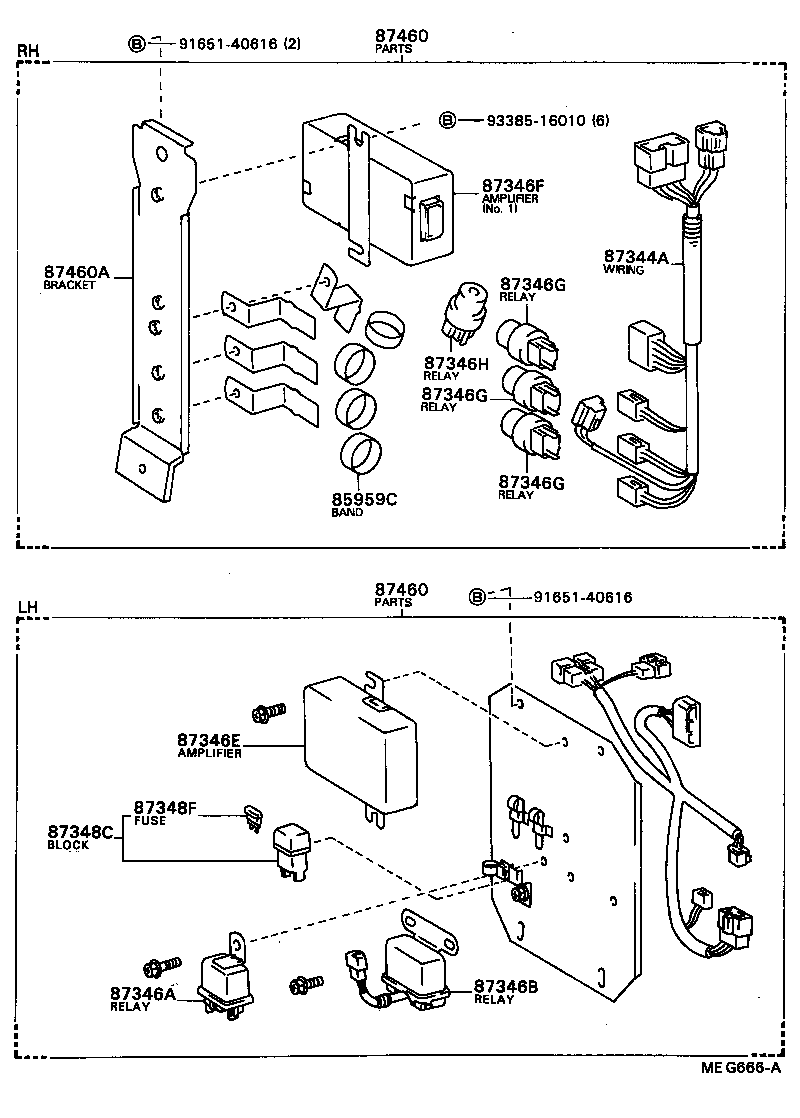

ILLUST NO. 3 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87346A - RELAY, COMBUSTION HEATER, NO.1 | ||||
| 87346-90B03 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87346B - RELAY, COMBUSTION HEATER, NO.2 | ||||
| 87346-90B01 |
BB2#,3#,HB3#,HDB3#,HZB3#..10S,20S,26S,29S |
1 | ||
| 87346E - AMPLIFIER ASSY, CONBUSTION HEATER | ||||
| 87480-90B01 |
BB2#,3#,HB3#..10S,20S,26S,29S |
1 | ||
| 87348C - BLOCK, FUSE | ||||
| 87348-90B00 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S |
1 | ||
| 87348F - FUSE (FOR COMBUSTION HEATER) | ||||
| 90982-09002 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2#..10S,20S,26S,29S 10A |
1 | ||
| 87460 - PARTS ASSY, ELECTRICAL | ||||
| 87460-90B01 |
BB2#,3#,HB3#..10S,20S,26S,29S LH |
1 | ||
| 87460 - PARTS ASSY, ELECTRICAL | ||||
| 87460-90B01 |
BB2#,3#,HB3#..10S,20S,26S,29S LH |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 93385-16010 | ||||
ILLUST NO. 1 OF 6(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-90B01 |
BB20,30,HB30,RB20 RR |
1 | ||
| 55907-90B03 |
BB2#,3#,HB3#,RB2# RR |
1 | ||
| 55907-90B00 |
BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2# FR |
1 | ||
| Common parts | ||||
| 55907-90B01 | ||||
| 55907-90B03 | ||||
