HB30-MDZ (1982)
Toyota Coaster
(8205-8510)BB2#,3#,RB2#

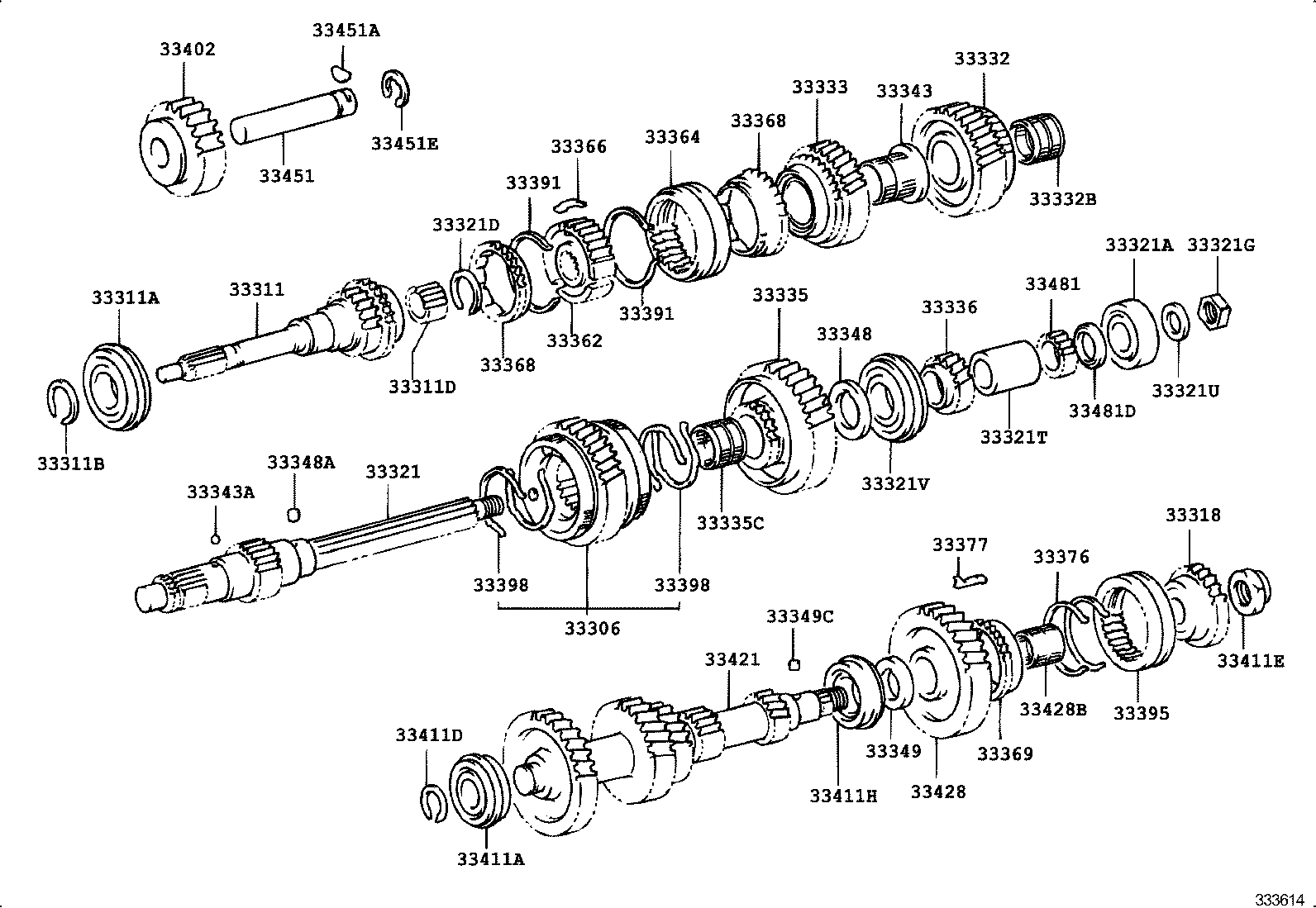

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-60070 |
HB30 |
1 | ||
| 33311-36062 |
BB2#,3#,RB2# |
1 | ||
| 33301-36050 |
BB2#,3#,RB2#..5F |
1 | ||
| 33311-60090 |
HB3# |
1 | ||
| 33301-36060 |
HB3#..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-35001 |
BB2#,3#,RB2# |
1 | ||
| 90365-40002 |
HB3# |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33108 |
BB2#,3#,RB2# 厚さ=2.40,ﾏｰｸ 13,T=2.40-2.45 |
1 | ||
| 90520-33132 |
BB2#,3#,RB2# 厚さ=2.35−2.40,ﾏｰｸ 12,T=2.35-2.40 |
1 | ||
| 90520-36015 |
HB3# 厚さ=3.31−3.42,T=3.31-3.42 |
1 | ||
| 90520-33109 |
BB2#,3#,RB2# 厚さ=2.50,ﾏｰｸ 15,T=2.50-2.55 |
1 | ||
| 90520-33133 |
BB2#,3#,RB2# 厚さ=2.45,ﾏｰｸ 14,T=2.45-2.50 |
1 | ||
| 90520-33134 |
BB2#,3#,RB2# 厚さ=2.55,ﾏｰｸ 16,T=2.55-2.60 |
1 | ||
| 90520-36016 |
HB3# 厚さ=3.20−3.31,T=3.20-3.31 |
1 | ||
| 90520-33107 |
BB2#,3#,RB2# 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
BB2#,3#,HB3#,RB2#..5F |
12 | ||
| 90361-06049 |
BB2#,3#,HB3#,RB2# |
17 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36060 |
HB3# |
1 | ||
| 33321-36052 |
BB2#,3#,RB2# |
1 | ||
| 33321-36051 |
BB20,30,RB20 |
1 | ||
| 33321-36071 |
BB2#,HB3#,RB20..5F |
1 | ||
| 33321-36070 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97103-06207 |
HB3# |
1 | ||
| 90363-32011 |
BB2#,3#,RB2# |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-36250 |
BB2#,3#,HB3#,RB2# 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-36254 |
BB2#,3#,HB3#,RB2# 厚さ=2.60−2.65,T=2.60-2.65 |
1 | ||
| 90520-36251 |
BB2#,3#,HB3#,RB2# 厚さ=2.45−2.50,T=2.45-2.50 |
1 | ||
| 90520-36252 |
BB2#,3#,HB3#,RB2# 厚さ=2.50−2.55,T=2.50-2.55 |
1 | ||
| 90520-36255 |
BB2#,3#,HB3#,RB2# 厚さ=2.65−2.70,T=2.65-2.70 |
1 | ||
| 90520-36253 |
BB2#,3#,HB3#,RB2# 厚さ=2.55−2.60,T=2.55-2.60 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
BB2#,3#,RB2# |
1 | ||
| 90179-22005 |
HB3# |
1 | ||
| 90179-24002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-32003 |
BB2#,3#,RB2# |
1 | ||
| 90560-35006 |
HB3# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20010 |
BB2#,3#,RB2# |
1 | ||
| 90201-22005 |
HB3# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35011 |
BB2#,3#,RB20 |
1 | ||
| 90363-35018 |
BB2#,3#,RB2# |
1 | ||
| 90363-40018 |
HB3# |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36010 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33331-36024 |
BB2#,3#,RB2# |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36020 |
BB2#,3#,HB3#,RB2#..5F N=34 |
1 | ||
| 33332-36020 |
BB2#,3#,RB2# N=33 |
1 | ||
| 33332-60020 |
HB3# N=38 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-36021 |
BB2#,3#,RB2# N=28 |
1 | ||
| 33333-36030 |
HB3# |
1 | ||
| 33034-36020 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33333-60030 |
HB30 N=33 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-43004 |
BB2#,3#,RB2# KOYO |
1 | ||
| 90364-43003 |
BB20,30,RB20 NSK |
1 | ||
| 90364-43042 |
BB20,30,RB20 |
1 | ||
| 90364-43001 |
BB2#,3#,RB20 NSK |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
HB3# N=41 |
1 | ||
| 33335-36050 |
BB2#,3#,RB2# N=40 |
1 | ||
| 33032-36020 |
BB2#,3#,HB3#,RB2#..5F N=41 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36040 |
HB3# N=22 |
1 | ||
| 33336-36030 |
BB20,30,RB20 N=18 |
1 | ||
| 33036-36010 |
BB23,24,HB3#..5F N=24 |
1 | ||
| 33336-36031 |
BB2#,3#,RB2# N=18 |
1 | ||
| 33338 - BUSH OR BEARING, 5TH GEAR | ||||
| 33338-36020 |
BB2#,3#,RB2# |
1 | ||
| 33338A - BALL (FOR GEAR BUSH) | ||||
| 90360-06004 |
BB2#,3#,RB2# |
1 | ||
| 33355 - RACE, 1ST GEAR BEARING INNER | ||||
| 33355-36010 |
BB2#,3#,RB2# |
1 | ||
| 33355A - KEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK | ||||
| 90360-06004 |
BB2#,3#,RB2# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36020 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33361-36010 |
BB2#,3#,RB2# |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33362-36030 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33364-36060 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
BB2#,3#,RB2# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36030 |
BB2#,3#,HB3#,RB2#..5F |
3 | ||
| 33366-36020 |
BB2#,3#,HB3#,RB2# |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
BB2#,3#,RB2# 2ND |
1 | ||
| 33367-40012 |
BB2#,3#,RB2# 1ST |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
BB2#,3#,RB2# 2ND |
1 | ||
| 33367-40012 |
BB2#,3#,RB2# 1ST |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
HB3# |
1 | ||
| 33367-14010 |
BB2#,3#,RB2# |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
BB2#,3#,RB2# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
BB2#,3#,RB2# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
HB3# |
2 | ||
| 33371-14010 |
BB2#,3#,RB2# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
HB3# |
2 | ||
| 33371-14010 |
BB2#,3#,RB2# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-36011 |
HB3# |
3 | ||
| 33366-14010 |
BB2#,3#,RB2# |
3 | ||
| 33385 - RETAINER, SHIFTING KEY | ||||
| 33385-36020 |
BB2#,3#,RB20 |
1 | ||
| 33385-36030 |
BB2#,3#,RB2# |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36040 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33393-36020 |
BB2#,3#,RB2# |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
BB2#,3#,RB2# |
1 | ||
| 33395-36010 |
HB3# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36030 |
BB2#,3#,RB2# N=27 |
1 | ||
| 33402-36050 |
HB3# |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30004 |
BB2#,3#,RB2# |
1 | ||
| 90365-32002 |
HB3# |
1 | ||
| 90365-37002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28246 |
BB2#,3#,RB2# 厚さ=1.90−1.95,ﾏｰｸ E,T=1.90 |
1 | ||
| 90520-28249 |
BB2#,3#,RB2# 厚さ=2.10−2.15,ﾏｰｸ G,T=2.10 |
1 | ||
| 90520-30218 |
HB3# 厚さ=2.25,ﾏｰｸ 4,T=2.25-2.30 |
1 | ||
| 90520-28248 |
BB2#,3#,RB2# 厚さ=2.00−2.05,ﾏｰｸ F,T=2.00 |
1 | ||
| 90520-30216 |
HB3# 厚さ=2.15,ﾏｰｸ 2,T=2.15-2.20 |
1 | ||
| 90520-30214 |
HB3# 厚さ=2.05,ﾏｰｸ 0,T=2.05-2.10 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-26002 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-40001 |
HB3# |
1 | ||
| 90364-22003 |
BB20,21,30,31,RB20 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-30014 |
BB2#,3#,RB2# |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90521-38117 |
BB2#,3#,RB2# 厚さ=1.5 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36040 |
HB30 N=43,36,24,14,14 |
1 | ||
| 33411-36061 |
BB2#,3#,RB2# N=37,30,21,13,14 |
1 | ||
| 33421-36120 |
BB23,24,HB3#..5F |
1 | ||
| 33421-36070 |
HB3# N=43,34,24,14,14 |
1 | ||
| 33421-36140 |
BB21,26,3#,RB2# |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-36030 |
BB2#,3#,RB2# N=40 |
1 | ||
| 33046-36011 |
HB3# N=47 |
1 | ||
| 33428-36031 |
BB2#,3#,RB2# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-32007 |
HB3# |
1 | ||
| 90364-38001 |
BB2#,3#,RB2# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
BB2#,3#,RB2# |
1 | ||
| 33451-36022 |
HB3# |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-36020 |
BB2#,3#,RB20 |
1 | ||
| 33452-36030 |
BB2#,3#,RB2# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36120 |
HB3# N=5 |
1 | ||
| 33481-36090 |
BB20,21,3# N=5 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36050 |
HB3# |
1 | ||
| 33487-36040 |
BB2#,3#,RB2# |
1 | ||
| Common parts | ||||
| 91611-40818 | ||||
(8205-8510)HB3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33306 - RING SUB-ASSY, SYNCHRONIZER, NO.1 | ||||
| 33306-36020 |
HB3# |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-60070 |
HB30 |
1 | ||
| 33311-36062 |
BB2#,3#,RB2# |
1 | ||
| 33301-36050 |
BB2#,3#,RB2#..5F |
1 | ||
| 33311-60090 |
HB3# |
1 | ||
| 33301-36060 |
HB3#..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-35001 |
BB2#,3#,RB2# |
1 | ||
| 90365-40002 |
HB3# |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33108 |
BB2#,3#,RB2# 厚さ=2.40,ﾏｰｸ 13,T=2.40-2.45 |
1 | ||
| 90520-33132 |
BB2#,3#,RB2# 厚さ=2.35−2.40,ﾏｰｸ 12,T=2.35-2.40 |
1 | ||
| 90520-36015 |
HB3# 厚さ=3.31−3.42,T=3.31-3.42 |
1 | ||
| 90520-33109 |
BB2#,3#,RB2# 厚さ=2.50,ﾏｰｸ 15,T=2.50-2.55 |
1 | ||
| 90520-33133 |
BB2#,3#,RB2# 厚さ=2.45,ﾏｰｸ 14,T=2.45-2.50 |
1 | ||
| 90520-33134 |
BB2#,3#,RB2# 厚さ=2.55,ﾏｰｸ 16,T=2.55-2.60 |
1 | ||
| 90520-36016 |
HB3# 厚さ=3.20−3.31,T=3.20-3.31 |
1 | ||
| 90520-33107 |
BB2#,3#,RB2# 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
BB2#,3#,HB3#,RB2#..5F |
12 | ||
| 90361-06049 |
BB2#,3#,HB3#,RB2# |
17 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-36011 |
HB30 |
1 | ||
| 33318-36012 |
HB3# |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36060 |
HB3# |
1 | ||
| 33321-36052 |
BB2#,3#,RB2# |
1 | ||
| 33321-36051 |
BB20,30,RB20 |
1 | ||
| 33321-36071 |
BB2#,HB3#,RB20..5F |
1 | ||
| 33321-36070 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97103-06207 |
HB3# |
1 | ||
| 90363-32011 |
BB2#,3#,RB2# |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-36250 |
BB2#,3#,HB3#,RB2# 厚さ=2.40−2.45,T=2.40-2.45 |
1 | ||
| 90520-36254 |
BB2#,3#,HB3#,RB2# 厚さ=2.60−2.65,T=2.60-2.65 |
1 | ||
| 90520-36251 |
BB2#,3#,HB3#,RB2# 厚さ=2.45−2.50,T=2.45-2.50 |
1 | ||
| 90520-36252 |
BB2#,3#,HB3#,RB2# 厚さ=2.50−2.55,T=2.50-2.55 |
1 | ||
| 90520-36255 |
BB2#,3#,HB3#,RB2# 厚さ=2.65−2.70,T=2.65-2.70 |
1 | ||
| 90520-36253 |
BB2#,3#,HB3#,RB2# 厚さ=2.55−2.60,T=2.55-2.60 |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
BB2#,3#,RB2# |
1 | ||
| 90179-22005 |
HB3# |
1 | ||
| 90179-24002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-32003 |
BB2#,3#,RB2# |
1 | ||
| 90560-35006 |
HB3# |
1 | ||
| 33321U - WASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET) | ||||
| 90201-20010 |
BB2#,3#,RB2# |
1 | ||
| 90201-22005 |
HB3# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35011 |
BB2#,3#,RB20 |
1 | ||
| 90363-35018 |
BB2#,3#,RB2# |
1 | ||
| 90363-40018 |
HB3# |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36020 |
BB2#,3#,HB3#,RB2#..5F N=34 |
1 | ||
| 33332-36020 |
BB2#,3#,RB2# N=33 |
1 | ||
| 33332-60020 |
HB3# N=38 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-36021 |
BB2#,3#,RB2# N=28 |
1 | ||
| 33333-36030 |
HB3# |
1 | ||
| 33034-36020 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33333-60030 |
HB30 N=33 |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
HB3# N=41 |
1 | ||
| 33335-36050 |
BB2#,3#,RB2# N=40 |
1 | ||
| 33032-36020 |
BB2#,3#,HB3#,RB2#..5F N=41 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36040 |
HB3# N=22 |
1 | ||
| 33336-36030 |
BB20,30,RB20 N=18 |
1 | ||
| 33036-36010 |
BB23,24,HB3#..5F N=24 |
1 | ||
| 33336-36031 |
BB2#,3#,RB2# N=18 |
1 | ||
| 33343 - BUSH, 3RD & 2ND GEAR | ||||
| 33343-36020 |
HB3# |
1 | ||
| 33343A - PIN OR BALL (FOR 3RD & 2ND GEAR BUSH) | ||||
| 90360-06004 |
HB3# |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-36012 |
HB3# |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
HB3# |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33346-36010 |
HB3# |
1 | ||
| 33349C - PIN (FOR 5TH GEAR THRUST WASHER) | ||||
| 90250-06009 |
HB3# |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33362-36030 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33364-36060 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36030 |
BB2#,3#,HB3#,RB2#..5F |
3 | ||
| 33366-36020 |
BB2#,3#,HB3#,RB2# |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
HB3# |
1 | ||
| 33367-14010 |
BB2#,3#,RB2# |
1 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
HB3# |
2 | ||
| 33371-14010 |
BB2#,3#,RB2# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-36011 |
HB3# |
3 | ||
| 33366-14010 |
BB2#,3#,RB2# |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
BB2#,3#,RB2# |
1 | ||
| 33395-36010 |
HB3# |
1 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36011 |
HB30 |
4 | ||
| 33398-36012 |
HB3# |
4 | ||
| 33398 - HOLDER, SYNCHRONIZER RING | ||||
| 33398-36011 |
HB30 |
4 | ||
| 33398-36012 |
HB3# |
4 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36030 |
BB2#,3#,RB2# N=27 |
1 | ||
| 33402-36050 |
HB3# |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30004 |
BB2#,3#,RB2# |
1 | ||
| 90365-32002 |
HB3# |
1 | ||
| 90365-37002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-28246 |
BB2#,3#,RB2# 厚さ=1.90−1.95,ﾏｰｸ E,T=1.90 |
1 | ||
| 90520-28249 |
BB2#,3#,RB2# 厚さ=2.10−2.15,ﾏｰｸ G,T=2.10 |
1 | ||
| 90520-30218 |
HB3# 厚さ=2.25,ﾏｰｸ 4,T=2.25-2.30 |
1 | ||
| 90520-28248 |
BB2#,3#,RB2# 厚さ=2.00−2.05,ﾏｰｸ F,T=2.00 |
1 | ||
| 90520-30216 |
HB3# 厚さ=2.15,ﾏｰｸ 2,T=2.15-2.20 |
1 | ||
| 90520-30214 |
HB3# 厚さ=2.05,ﾏｰｸ 0,T=2.05-2.10 |
1 | ||
| 33411E - NUT(FOR COUNTER GEAR SHAFT) | ||||
| 90179-26002 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-40001 |
HB3# |
1 | ||
| 90364-22003 |
BB20,21,30,31,RB20 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36040 |
HB30 N=43,36,24,14,14 |
1 | ||
| 33411-36061 |
BB2#,3#,RB2# N=37,30,21,13,14 |
1 | ||
| 33421-36120 |
BB23,24,HB3#..5F |
1 | ||
| 33421-36070 |
HB3# N=43,34,24,14,14 |
1 | ||
| 33421-36140 |
BB21,26,3#,RB2# |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33428-36030 |
BB2#,3#,RB2# N=40 |
1 | ||
| 33046-36011 |
HB3# N=47 |
1 | ||
| 33428-36031 |
BB2#,3#,RB2# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-32007 |
HB3# |
1 | ||
| 90364-38001 |
BB2#,3#,RB2# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
BB2#,3#,RB2# |
1 | ||
| 33451-36022 |
HB3# |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03015 |
HB3# |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-27001 |
HB3# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36120 |
HB3# N=5 |
1 | ||
| 33481-36090 |
BB20,21,3# N=5 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36050 |
HB3# |
1 | ||
| 33487-36040 |
BB2#,3#,RB2# |
1 | ||
(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33311-60070 |
HB30 |
1 | ||
| 33311-36062 |
BB2#,3#,RB2# |
1 | ||
| 33301-36050 |
BB2#,3#,RB2#..5F |
1 | ||
| 33311-60090 |
HB3# |
1 | ||
| 33301-36060 |
HB3#..5F |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90365-35001 |
BB2#,3#,RB2# |
1 | ||
| 90365-40002 |
HB3# |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33108 |
BB2#,3#,RB2# 厚さ=2.40,ﾏｰｸ 13,T=2.40-2.45 |
1 | ||
| 90520-33132 |
BB2#,3#,RB2# 厚さ=2.35−2.40,ﾏｰｸ 12,T=2.35-2.40 |
1 | ||
| 90520-36015 |
HB3# 厚さ=3.31−3.42,T=3.31-3.42 |
1 | ||
| 90520-33109 |
BB2#,3#,RB2# 厚さ=2.50,ﾏｰｸ 15,T=2.50-2.55 |
1 | ||
| 90520-33133 |
BB2#,3#,RB2# 厚さ=2.45,ﾏｰｸ 14,T=2.45-2.50 |
1 | ||
| 90520-33134 |
BB2#,3#,RB2# 厚さ=2.55,ﾏｰｸ 16,T=2.55-2.60 |
1 | ||
| 90520-36016 |
HB3# 厚さ=3.20−3.31,T=3.20-3.31 |
1 | ||
| 90520-33107 |
BB2#,3#,RB2# 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
BB2#,3#,HB3#,RB2#..5F |
12 | ||
| 90361-06049 |
BB2#,3#,HB3#,RB2# |
17 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-36060 |
HB3# |
1 | ||
| 33321-36052 |
BB2#,3#,RB2# |
1 | ||
| 33321-36051 |
BB20,30,RB20 |
1 | ||
| 33321-36071 |
BB2#,HB3#,RB20..5F |
1 | ||
| 33321-36070 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 97103-06207 |
HB3# |
1 | ||
| 90363-32011 |
BB2#,3#,RB2# |
1 | ||
| 33321G - NUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) | ||||
| 90179-20001 |
BB2#,3#,RB2# |
1 | ||
| 90179-22005 |
HB3# |
1 | ||
| 90179-24002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-36010 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33331-36024 |
BB2#,3#,RB2# |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-36020 |
BB2#,3#,HB3#,RB2#..5F N=34 |
1 | ||
| 33332-36020 |
BB2#,3#,RB2# N=33 |
1 | ||
| 33332-60020 |
HB3# N=38 |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-36021 |
BB2#,3#,RB2# N=28 |
1 | ||
| 33333-36030 |
HB3# |
1 | ||
| 33034-36020 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33333-60030 |
HB30 N=33 |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-43004 |
BB2#,3#,RB2# KOYO |
1 | ||
| 90364-43003 |
BB20,30,RB20 NSK |
1 | ||
| 90364-43042 |
BB20,30,RB20 |
1 | ||
| 90364-43001 |
BB2#,3#,RB20 NSK |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
HB3# N=41 |
1 | ||
| 33335-36050 |
BB2#,3#,RB2# N=40 |
1 | ||
| 33032-36020 |
BB2#,3#,HB3#,RB2#..5F N=41 |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-46003 |
BB2#,3#,RB2# |
1 | ||
| 90364-44065 |
HB3# |
1 | ||
| 90364-46053 |
BB20,30,RB20 |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-36040 |
HB3# N=22 |
1 | ||
| 33336-36030 |
BB20,30,RB20 N=18 |
1 | ||
| 33036-36010 |
BB23,24,HB3#..5F N=24 |
1 | ||
| 33336-36031 |
BB2#,3#,RB2# N=18 |
1 | ||
| 33336B - SPACER (FOR 5TH GEAR BEARING) | ||||
| 90560-37001 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) | ||||
| 90520-33014 |
BB2#,3#,HB3#,RB2#..5F 厚さ=1.95−2.00,T=1.95-2.00 |
1 | ||
| 90520-33013 |
BB2#,3#,HB3#,RB2#..5F 厚さ=1.90−1.95,T=1.90-1.95 |
1 | ||
| 90520-33017 |
BB2#,3#,HB3#,RB2#..5F 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-33015 |
BB2#,3#,HB3#,RB2#..5F 厚さ=2.00−2.05,T=2.00-2.05 |
1 | ||
| 90520-33016 |
BB2#,3#,HB3#,RB2#..5F 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-36020 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33361-36010 |
BB2#,3#,RB2# |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-36021 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33362-36030 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36051 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 33364-36060 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-36010 |
BB2#,3#,RB2# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-36030 |
BB2#,3#,HB3#,RB2#..5F |
3 | ||
| 33366-36020 |
BB2#,3#,HB3#,RB2# |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-36030 |
BB2#,3#,RB2# 2ND |
1 | ||
| 33367-40012 |
BB2#,3#,RB2# 1ST |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33368-36040 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33368-36041 |
BB2#,3#,HB3#,RB2#..5F |
2 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
HB3# |
1 | ||
| 33367-14010 |
BB2#,3#,RB2# |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33368-20012 |
HB3# |
1 | ||
| 33367-14010 |
BB2#,3#,RB2# |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
BB2#,3#,RB2# |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-36020 |
BB2#,3#,RB2# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
HB3# |
2 | ||
| 33371-14010 |
BB2#,3#,RB2# |
2 | ||
| 33376 - SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB) | ||||
| 33391-36010 |
HB3# |
2 | ||
| 33371-14010 |
BB2#,3#,RB2# |
2 | ||
| 33377 - KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB) | ||||
| 33394-36011 |
HB3# |
3 | ||
| 33366-14010 |
BB2#,3#,RB2# |
3 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-20010 |
BB2#,3#,HB3#,RB2# |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-36040 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33393-36020 |
BB2#,3#,RB2# |
1 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33364-14010 |
BB2#,3#,RB2# |
1 | ||
| 33395-36010 |
HB3# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-36030 |
BB2#,3#,RB2# N=27 |
1 | ||
| 33402-36050 |
HB3# |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30004 |
BB2#,3#,RB2# |
1 | ||
| 90365-32002 |
HB3# |
1 | ||
| 90365-37002 |
BB2#,3#,HB3#,RB2#..5F |
1 | ||
| 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) | ||||
| 90365-40001 |
HB3# |
1 | ||
| 90364-22003 |
BB20,21,30,31,RB20 |
1 | ||
| 33411R - RING, SNAP, COUNTER GEAR REAR BEARING | ||||
| 90521-38117 |
BB2#,3#,RB2# 厚さ=1.5 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-36040 |
HB30 N=43,36,24,14,14 |
1 | ||
| 33411-36061 |
BB2#,3#,RB2# N=37,30,21,13,14 |
1 | ||
| 33421-36120 |
BB23,24,HB3#..5F |
1 | ||
| 33421-36070 |
HB3# N=43,34,24,14,14 |
1 | ||
| 33421-36140 |
BB21,26,3#,RB2# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-36030 |
BB2#,3#,RB2# |
1 | ||
| 33451-36022 |
HB3# |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03015 |
HB3# |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-36120 |
HB3# N=5 |
1 | ||
| 33481-36090 |
BB20,21,3# N=5 |
1 | ||
| 33481D - SPACER (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 33487-36050 |
HB3# |
1 | ||
| 33487-36040 |
BB2#,3#,RB2# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
