HB30-MDZ (1982)

Toyota Coaster

Production May 1982 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)12HT,2H

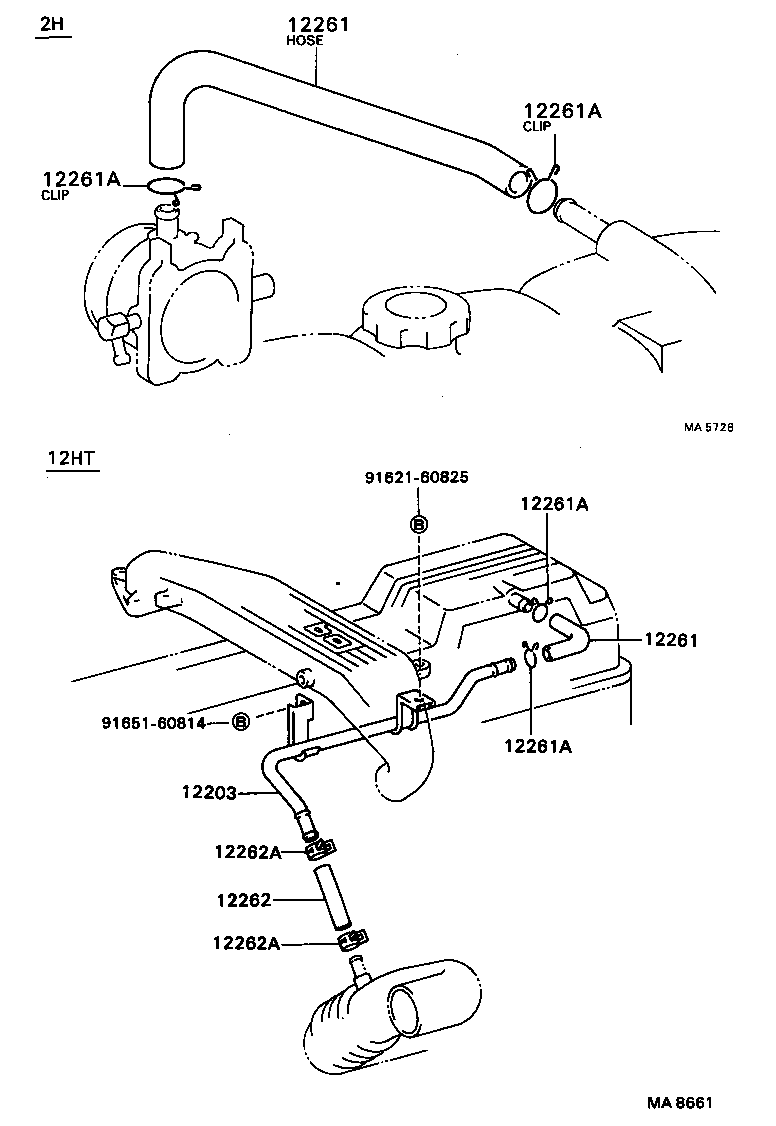

Click highlighted areas on diagram

MA5728,MA8661

diagram 12203 12261 12261 12261A 12261A 12261A 12261A 12262 12262A 12262A 9162160825 9165160814
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-68020

2H..HB30,36

 1
12261 - HOSE, VENTILATION
12261-68020

2H..HB30,36

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

12HT,1H#,2H..HB3#,HDB20,3#,HZB3#

 2
Common parts
91621-60825
91651-60814
