HB30-MDZ (1982)

Toyota Coaster

Production May 1982 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)12HT,2H

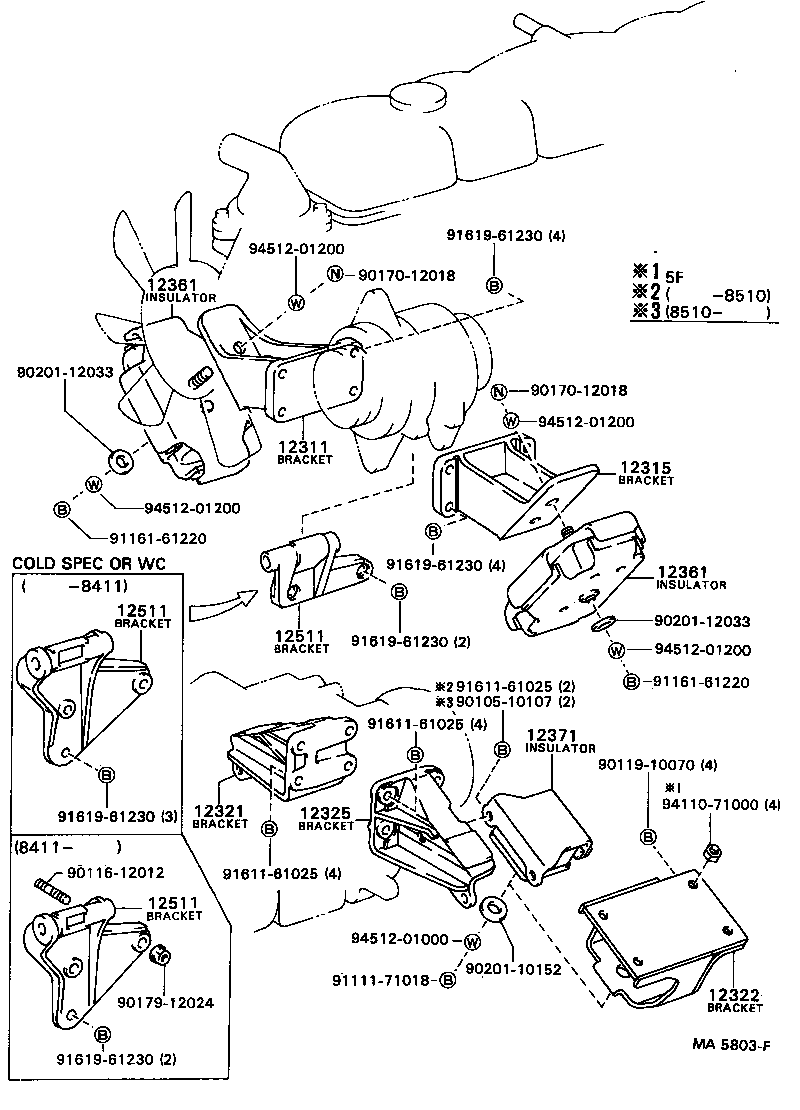

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12325 12361 12361 12371 12511 12511 12511 9010510107 9011612012 9011910070 9017012018 9017012018 9017912024 9020110152 9020112033 9020112033 9111171018 9116161220 9116161220 9161161025 9161161025 9161161025 9161961230 9161961230 9161961230 9161961230 9161961230 9411071000 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-68040

12HT,2H..HB3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12311-68040

12HT,2H..HB3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-68010

2H..HB3#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-68010

2H..HB3#

 2
12325 - BRACKET, ENGINE MOUNTING, NO.3
12325-68010

2H..HB3#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68031

12HT,2H..HB3#

 2
12361-68030

12HT,2H..HB3#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-68031

12HT,2H..HB3#

 2
12361-68030

12HT,2H..HB3#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-68020

2H..HB3#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HB3#..WOC

 1
12511-68020

2H..HB30,36..WOC

COLD SPEC

 1
12511-68011

2H..HB30,36..WOC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HB3#..WOC

 1
12511-68020

2H..HB30,36..WOC

COLD SPEC

 1
12511-68011

2H..HB30,36..WOC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-68010

2H..HB3#..WOC

 1
12511-68020

2H..HB30,36..WOC

COLD SPEC

 1
12511-68011

2H..HB30,36..WOC

 1
Common parts
90105-10107
90116-12012
90119-10070
90170-12018
90179-12024
90201-10152
90201-12033
91111-71018
91161-61220
91611-61025
91619-61230
94110-71000
94512-01000
94512-01200
