HB30-MDZ (1982)

Toyota Coaster

Production May 1982 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-9001)12HT,2H

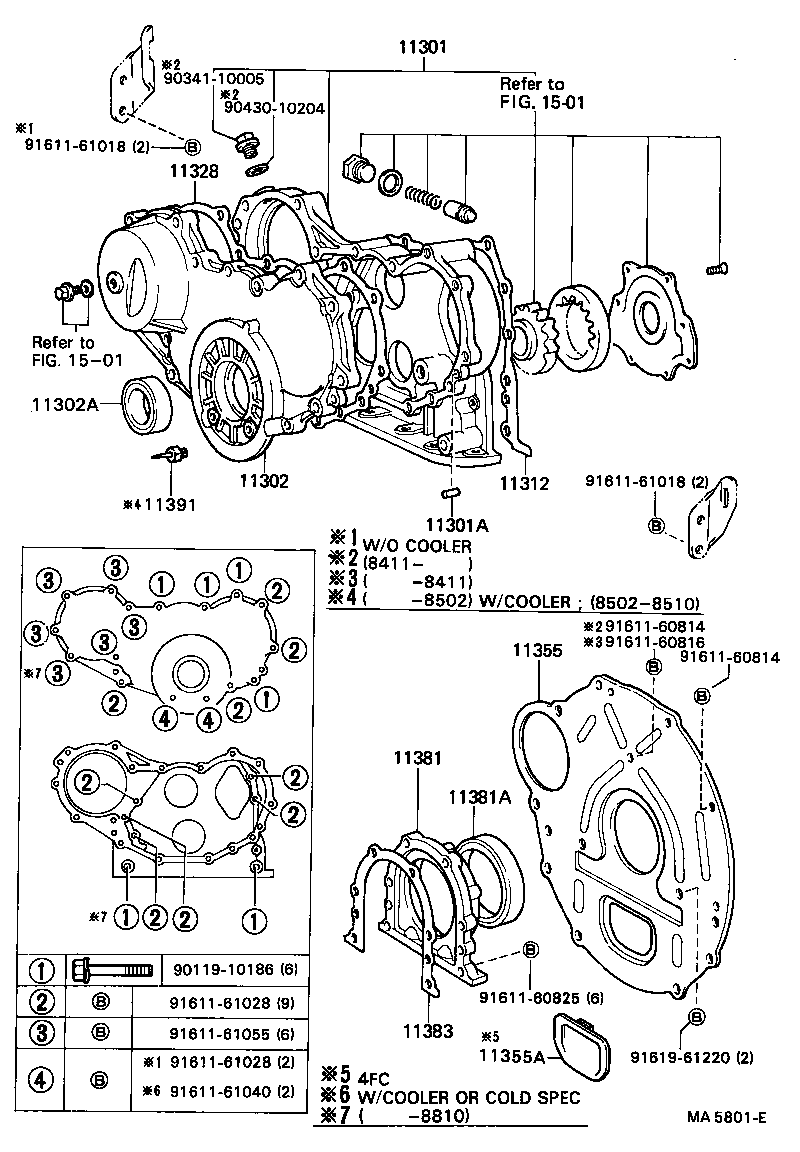

Click highlighted areas on diagram

diagram 11301 11301A 11302 11302A 11312 11328 11355 11355A 11381 11381A 11383 11391 1501 1501 9011910186 9034110005 9043010204 9161160814 9161160814 9161160816 9161160825 9161161018 9161161018 9161161028 9161161028 9161161040 9161161055 9161961220
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11301-68010

2H..HB3#

 1
11301-68020

12HT,2H..HB3#

 1
11301-68011

2H..HB3#

 1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

12HT,2H..HB3#

長さ=18,外径=8,L=18,OD=8

 2
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-68010

2H..HB30

 1
11321-68011

2H..HB3#

 1
11321-68012

2H..HB30,36..WOC

 1
11321-68020

2H..HB30,36..WOC

COLD SPEC

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50006

12HT,2H..HB3#

 1
90311-50049

2H..HB30

 1
11312 - GASKET, FRONT END PLATE
11312-68010

12HT,2H..HB3#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-68010

2H..HB3#

 1
11328-68020

12HT,2H..HB3#

 1
11355 - PLATE, REAR END
11355-68011

12HT,2H..HB3#..5F

 1
11355-68010

2H..HB3#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-68010

12HT,2H..HB3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95002

12HT,2H..HB3#

 1
90311-95001

2H..HB30

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-47010

12HT,2H..HB3#

 1
Common parts
90119-10186
90341-10005
90430-10204
91611-60814
91611-60816
91611-60825
91611-61018
91611-61028
91611-61040
91611-61055
91619-61220
Linked diagrams
1501
