HB30-MDR (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

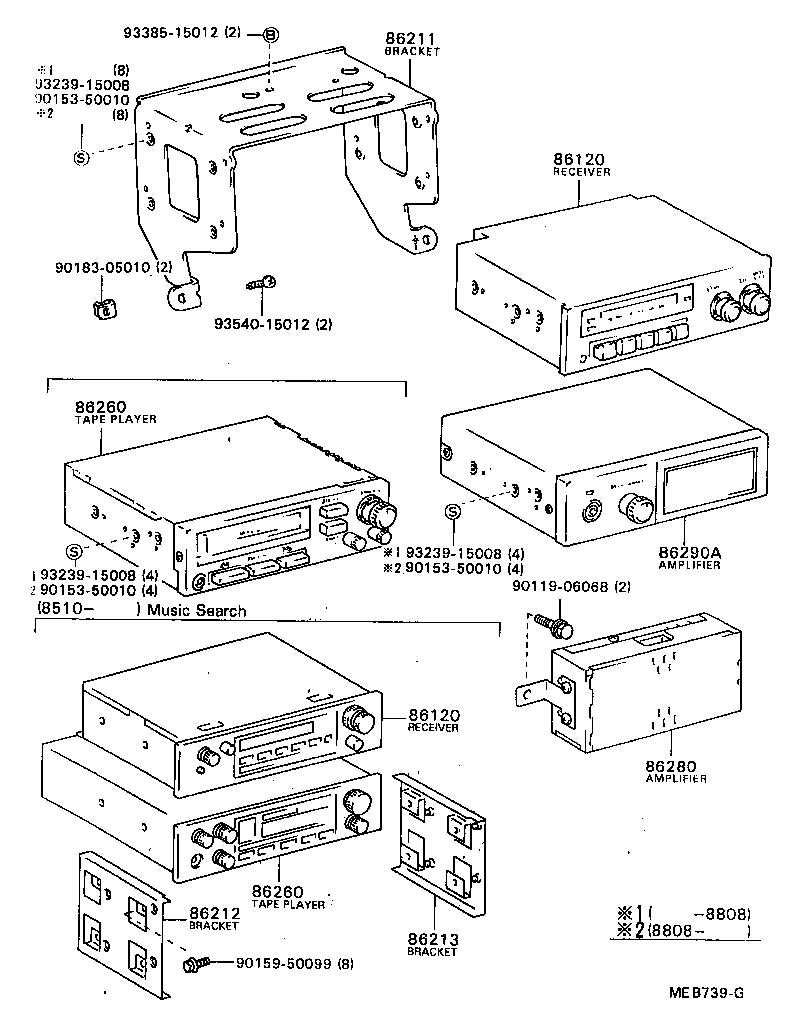

Click highlighted areas on diagram

diagram 86120 86120 86211 86212 86213 86260 86260 86280 86290A 9011906068 9015350010 9015350010 9015350010 9015950099 9018305010 9323915008 9323915008 9323915008 9338515012 9354015012
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-60051

BB2#,3#,HB30..DLX,EX,EXS

AM/FM MPX

 1
86120-60051

BB2#,3#,HB3#..DLX,EX,EXS

AM/FM MPX

 1
86120-60041

BB2#,3#,HB3#..DLX,STD

AM

 1
86120 - RECEIVER ASSY, RADIO
86120-60051

BB2#,3#,HB30..DLX,EX,EXS

AM/FM MPX

 1
86120-60051

BB2#,3#,HB3#..DLX,EX,EXS

AM/FM MPX

 1
86120-60041

BB2#,3#,HB3#..DLX,STD

AM

 1
86211 - BRACKET, RADIO, NO.1
86211-90B00

BB2#,3#,HB3#,RB2#

 1
86260 - TAPE PLAYER ASSY
86260-90B02

BB2#,3#,HB3#..DLX,EX,EXS

 1
86260-90B02

BB2#,3#,HB30..DLX,EX,EXS

 1
86260 - TAPE PLAYER ASSY
86260-90B02

BB2#,3#,HB3#..DLX,EX,EXS

 1
86260-90B02

BB2#,3#,HB30..DLX,EX,EXS

 1
86290A - AMPLIFIER ASSY, MICROPHONE
86290-90B01

BB20,21,30,31,HB30,31..DLX,STD

 1
Common parts
90119-06068
90153-50010
90159-50099
90183-05010
93239-15008
93385-15012
93540-15012

(8205- )

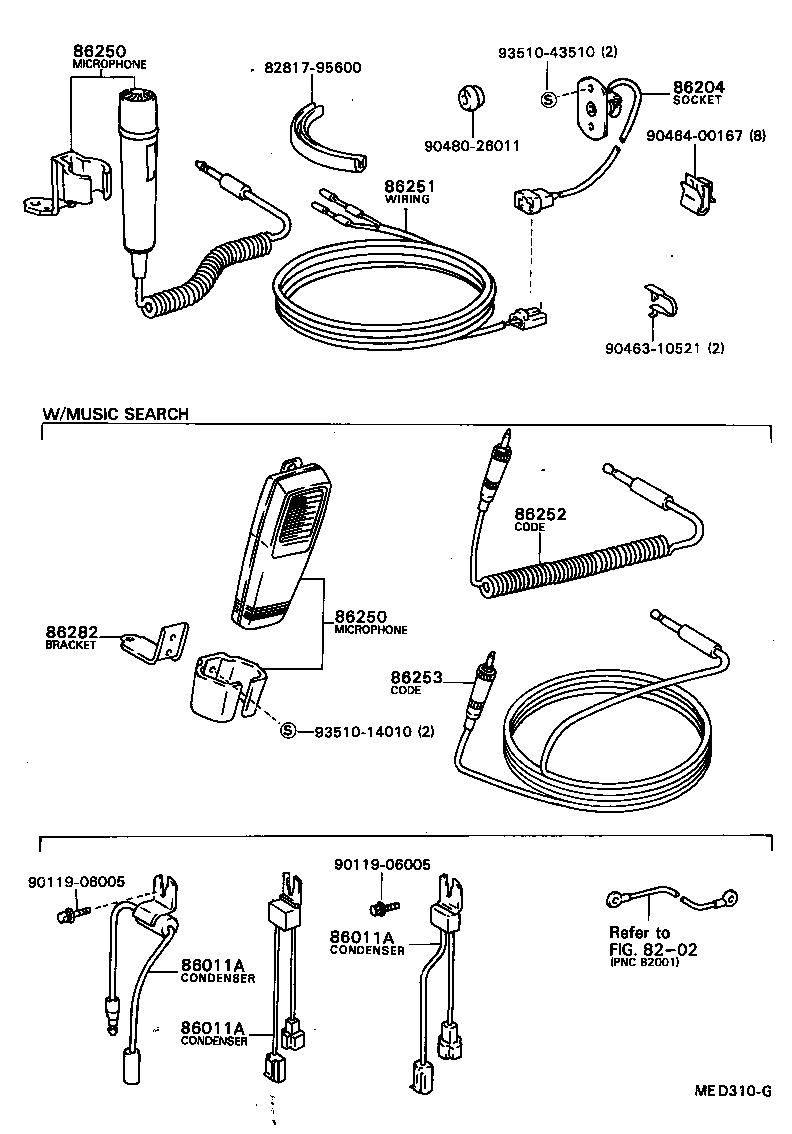

Click highlighted areas on diagram

diagram 8202 8281795600 86011A 86011A 86011A 86204 86250 86250 86251 86252 86253 86282 9011906005 9011906005 9046310521 9046400167 9048026011 9351014010 9351043510
Part # Description Qty Price
86204 - SOCKET SUB-ASSY, AMPLIFIER MICROPHONE
86204-90B00

BB2#,3#,HB3#,HDB20,3#,HZB30,31,RB2#

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-90B00

BB2#,3#,HB3#,RB2#

 1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-90B00

BB2#,3#,HB3#,RB2#

 1
86251 - WIRING, AMPLIFIER MICROPHONE
86251-90B00

BB2#,3#,HB3#,HDB20,3#,HZB30,31,RB2#

 1
Common parts
82817-95600
90119-06005
90463-10521
90464-00167
90480-26011
93510-14010
93510-43510
Linked diagrams
8202
