HB30-MDR (1982)

Toyota Coaster

Production May 1982 - Oct 1985
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

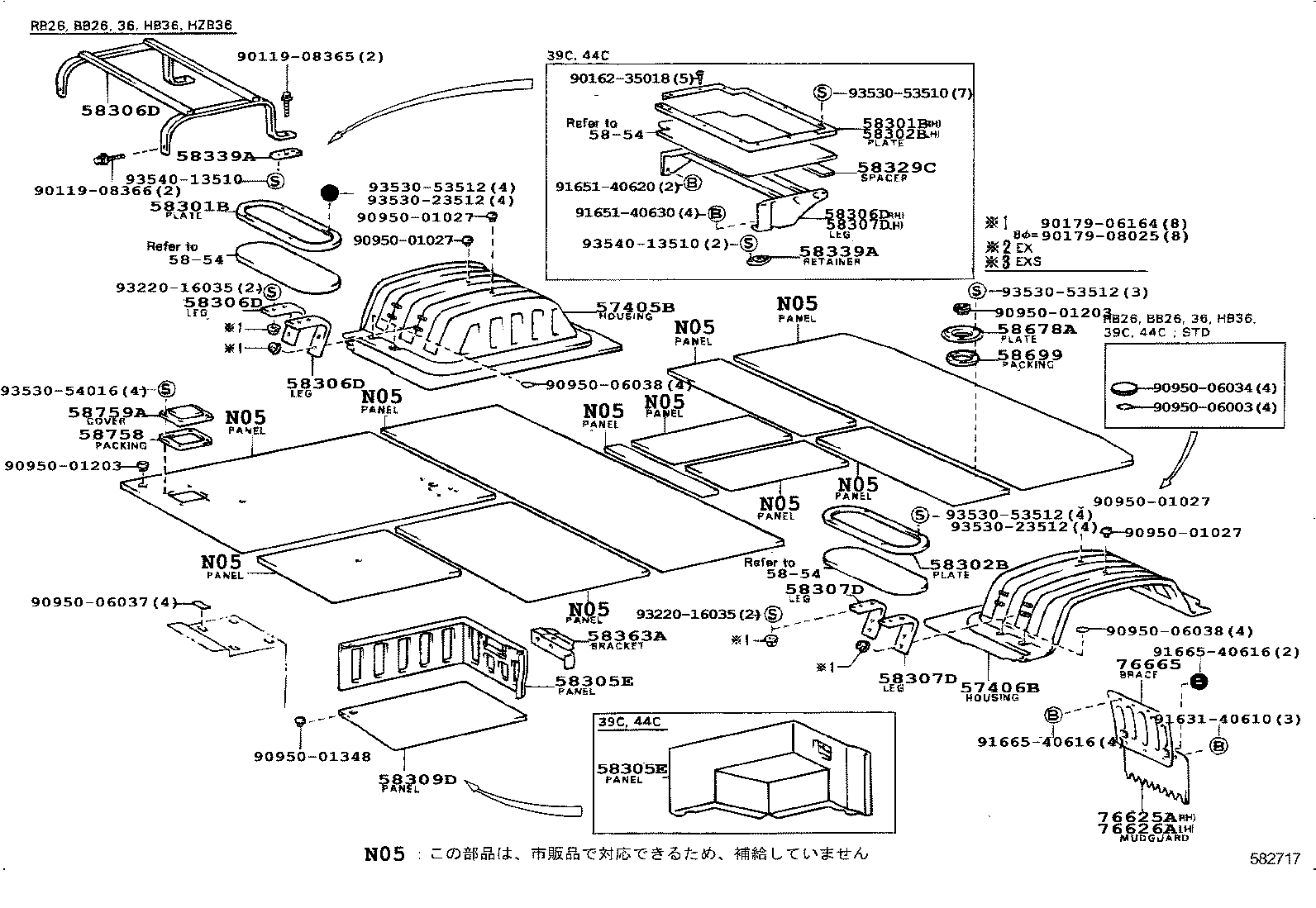

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 57405B 57406B 58301B 58301B 58302B 58302B 58305E 58305E 58306D 58306D 58306D 58306D 58307D 58307D 58307D 58309D 58329C 58339A 58339A 58363A 5854 5854 5854 58678A 58699 58758 58759A 76625A 76626A 76665 9011908365 9011908366 9016235018 9017906164 9017908025 9095001027 9095001027 9095001027 9095001027 9095001203 9095001203 9095001348 9095006003 9095006034 9095006037 9095006038 9095006038 9163140610 9165140620 9165140630 9166540616 9166540616 9322016035 9322016035 9353023512 9353023512 9353053510 9353053512 9353053512 9353053512 9353054016 9354013510 9354013510
Part # Description Qty Price
57405B - HOUSING SUB-ASSY, REAR FLOOR, RH
57405-90B00

BB20,21,23,26,3#,HB30,31,36,RB2#..(DLX,STD)..(10S,26S,29S)

 1
57406B - HOUSING SUB-ASSY, REAR FLOOR, LH
57406-90B07

BB2#,3#,HB30,RB20..(DLX,STD)..(26S,29S)

 1
58305E - PANEL SUB-ASSY, CENTER DOOR STEP
58305-90B09

BB20,21,23,26,HB30,31,36,RB2#..DLX..WC

 1
58305-90B12

BB20,21,23,HB30,RB20..DLX..WC

W/AUTO GLIDE DOOR

 1
58305E - PANEL SUB-ASSY, CENTER DOOR STEP
58305-90B09

BB20,21,23,26,HB30,31,36,RB2#..DLX..WC

 1
58305-90B12

BB20,21,23,HB30,RB20..DLX..WC

W/AUTO GLIDE DOOR

 1
58309D - PANEL SUB-ASSY, CENTER DOOR STEP, NO.2
58309-90B03

BB2#,HB3#,RB2#..WC

 1
58363A - BRACKET, GLIDE DOOR ARM
58363-90B00

BB2#,HB3#,RB2#..WC

 1
58758 - PACKING, FUEL TANK INSPECTION HOLE COVER
58758-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
58759A - COVER, FUEL TANK INSPECTION HOLE
58759-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76625A - MUDGUARD, REAR BODY, RH
76625-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76626A - MUDGUARD, REAR BODY, LH
76626-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
76665 - BRACE, REAR MUDGUARD
76665-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 2
Common parts
90119-08365
90119-08366
90162-35018
90179-06164
90179-08025
90950-01027
90950-01203
90950-01348
90950-06003
90950-06034
90950-06037
90950-06038
91631-40610
91651-40620
91651-40630
91665-40616
93220-16035
93530-23512
93530-53510
93530-53512
93530-54016
93540-13510
Linked diagrams
5854
