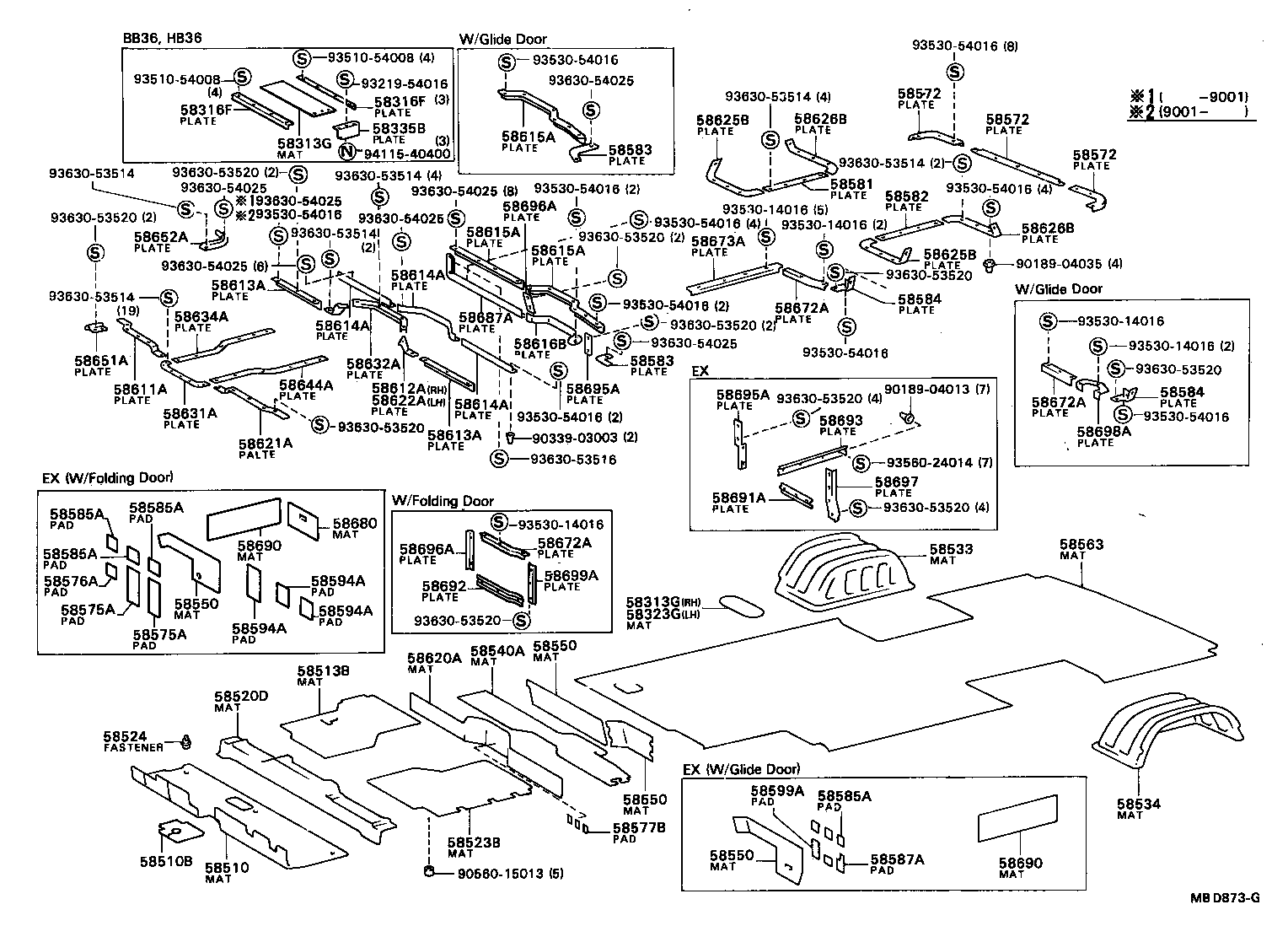

HB30-MD (1982)
Toyota Coaster
(8205- )BB20,21,23,26,3#,RB2#..10S,26S,29S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-90B15 |
BB21,31,HB30,RB20..26S,29S W/MECHANICAL *AUD |
1 | ||
| 58510-90B15 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58510-90B02 |
BB2#,3#,HB30,36,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 58513B - MAT, FRONT FLOOR CENTER, NO.1 RH | ||||
| 58530-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58530-90B3906 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58530-90B3902 |
BB2#,3#,HB3#,RB2#..10S,26S,29S D-WINE,DARK WINE |
1 | ||
| 58530-90B4006 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58520D - MAT ASSY, FRONT FLOOR, FRONT NO.2 | ||||
| 58520-90B00 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 58520-90B13 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58520-90B20 |
BB21,31,HB30,RB20..26S,29S W/MECHANICAL *AUD |
1 | ||
| 58520-90B16 |
BB2#,3#,HB30,36,RB2#..10S,26S,29S |
1 | ||
| 58523B - MAT, FRONT FLOOR, CENTER NO.1 LH | ||||
| 58610-90B06 |
BB2#,3#,HB30,RB20..(DLX,STD)..(26S,29S) W/O RR SEAT |
1 | ||
| 58610-90B06 |
BB21,31,HB30,RB20..26S,29S W/O RR SEAT |
1 | ||
| 58610-90B11 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58610-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58610-90B0006 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58610-90B1706 |
HB30,31..5F W/*MAD,W/O RR SEAT,SABLE,SABLE |
1 | ||
| 58610-90B1106 |
HB30,31..5F W/MECHANICAL *AUD,SABLE,SABLE |
1 | ||
| 58610-90B11 |
BB21,31,HB30,31,RB20..(DLX,STD)..5F..(26S,29S) W/MECHANICAL *AUD |
1 | ||
| 58610-90B0606 |
BB21,23,26,31,HB30,31,36,RB20..10S,26S,29S W/O RR SEAT,SABLE,SABLE |
1 | ||
| 58524 - FASTENER, FLOOR MAT, MALE | ||||
| 90530-06001 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
7 | ||
| 58533 - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-90B00 |
BB20,21,30,31,HB30,31,RB20..DLX |
1 | ||
| 58534 - MAT, REAR WHEEL HOUSE, LH | ||||
| 58519-90B00 |
BB20,21,30,31,HB30,31,RB20..DLX |
1 | ||
| 58540A - MAT ASSY, FRONT FLOOR, REAR NO.1 | ||||
| 58540-90B15 |
BB2#,3#,RB20..DLX..WOC W/*FD(AUTO) |
1 | ||
| 58540-90B17 |
HB30..WOC W/*FD(AUTO) |
1 | ||
| 58540-90B18 |
BB2#,3#,RB20..DLX..WOC W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B04 |
HB30..WOC W/*GLD |
1 | ||
| 58540-90B10 |
HB30..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B20 |
HB30..WOC W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B17 |
HB30,36..DLX,EX W/*FD(AUTO) |
1 | ||
| 58540-90B08 |
BB2#,3#,RB20..(26S,29S)..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B20 |
HB30..26S,29S W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B12 |
HB30..26S,29S W/*GLD,W/O RR SEAT |
1 | ||
| 58540-90B42 |
HB3#..DLX,EX W/*FD(AUTO) |
1 | ||
| 58540-90B4202 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-90B34 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58540-90B4202 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-90B02 |
HB30,36..WOC W/*FD |
1 | ||
| 58540-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC W/*FD |
1 | ||
| 58540-90B20 |
HB30,36 W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B18 |
BB2#,3#,RB2#..10S,26S,29S W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B08 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B10 |
HB30,36 W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B45 |
HB30 W/MECHANICAL *AUD |
1 | ||
| 58540-90B02 |
HB30,36..WOC W/*FD |
1 | ||
| 58540-90B15 |
BB2#,3#,RB2#..DLX W/*FD(AUTO) |
1 | ||
| 58540-90B8902 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-9055306 |
HB30,31..5F W/*MAD,W/O RR SEAT SABLE,SABLE |
1 | ||
| 58540-9052606 |
HB30,31..5F W/*MAD,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58550-90B00 |
BB20,21,30,31,RB20..26S,29S |
1 | ||
| 58526-90B00 |
HB3#..DLX CENTER |
1 | ||
| 58550-90B02 |
HB30..DLX RH |
1 | ||
| 58563 - MAT, REAR FLOOR | ||||
| 58517-90B30 |
HB30..WOC W/FOLDING SEAT |
1 | ||
| 58517-90B07 |
HB30..WOC |
1 | ||
| 58581-90B01 |
BB3#,HB3#..10S,26S,29S |
1 | ||
| 58517-90B55 |
HB30..WOC W/O RR SEAT |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58581 - PLATE, WHEEL HOUSE MAT SET, RH | ||||
| 58617-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58582 - PLATE, WHEEL HOUSE MAT SET, LH | ||||
| 58617-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58583 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, FRONT | ||||
| 58675-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58583 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, FRONT | ||||
| 58675-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58584 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, REAR | ||||
| 58676-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58584 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, REAR | ||||
| 58676-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58611A - PLATE, MAT SET, NO.1 RH | ||||
| 58611-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-90B0106 |
HB3#..DLX,EX SABLE,SABLE |
1 | ||
| 58612-90B01 |
HB3#..DLX,EX |
1 | ||
| 58612-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
2 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
BB2#,3#,RB2# LH |
1 | ||
| 58613-90B02 |
HB30 |
1 | ||
| 58623-90B00 |
BB2#,3#,RB2# RH |
1 | ||
| 58613-90B01 |
HB3#..DLX,EX CTR |
1 | ||
| 58623-90B00 |
HB3#..DLX,EX RH & LH |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
BB2#,3#,RB2# LH |
1 | ||
| 58613-90B02 |
HB30 |
1 | ||
| 58623-90B00 |
BB2#,3#,RB2# RH |
1 | ||
| 58613-90B01 |
HB3#..DLX,EX CTR |
1 | ||
| 58623-90B00 |
HB3#..DLX,EX RH & LH |
2 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58615-90B00 |
BB2#,3#,RB2#..10S,26S,29S |
1 | ||
| 58615-90B02 |
HB3#..DLX,EX |
1 | ||
| 58620A - MAT ASSY, FRONT FLOOR, CENTER NO.2 | ||||
| 58620-90B06 |
HB30..DLX W/O RR SEAT |
1 | ||
| 58620-90B05 |
BB2#,3#,RB2#..10S,26S,29S |
1 | ||
| 58620-90B02 |
HB30,36..DLX |
1 | ||
| 58620-90B2002 |
HB30,36 W/O RR SEAT,DARK WINE,DARK WINE |
1 | ||
| 58621A - PLATE, MAT SET, NO.1 LH | ||||
| 58621-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-90B01 |
HB3#..DLX,EX |
1 | ||
| 58622-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58622-90B0106 |
HB30,31,36..DLX,EX SABLE,SABLE |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58631A - PLATE, ENGINE SERVICE HOLE MAT, FRONT | ||||
| 58631-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-90B01 |
HB3# |
1 | ||
| 58632-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58652A - PLATE, FRONT DOOR MAT, NO.2 | ||||
| 58652-90B0006 |
BB2#,31,HB3#,RB20..DLX,EX,STD RH,SABLE,SABLE |
1 | ||
| 58652-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-90B00 |
BB20,30,HB30,RB20..DLX,EX,STD |
1 | ||
| 58673-90B02 |
BB2#,3#,HB30,RB20 |
1 | ||
| 58695A - PLATE, REAR FLOOR MAT VERTICAL, NO.1 | ||||
| 58695-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58695-90B00 |
BB20,30,HB30,RB20..DLX,STD |
1 | ||
| 58695-90B0506 |
HB30,31,36..DLX SABLE,SABLE |
1 | ||
| 58695-90B05 |
HB3#..DLX |
1 | ||
| 58698A - PLATE, CENTER DOOR STEP MAT, SIDE OUTER | ||||
| 58698-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| Common parts | ||||
| 90189-04035 | ||||
| 90339-03003 | ||||
| 90560-15013 | ||||
| 93219-54016 | ||||
| 93510-54008 | ||||
| 93530-14016 | ||||
| 93530-54016 | ||||
| 93630-53154 | ||||
| 93630-53514 | ||||
| 93630-53520 | ||||
| 93630-54025 | ||||
| 94115-40400 | ||||
(8205- )HB3#,HDB3#,HZB3#..DLX,EX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58510 - MAT ASSY, FRONT FLOOR, FRONT NO.1 | ||||
| 58510-90B15 |
BB21,31,HB30,RB20..26S,29S W/MECHANICAL *AUD |
1 | ||
| 58510-90B15 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58510-90B02 |
BB2#,3#,HB30,36,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 58513B - MAT, FRONT FLOOR CENTER, NO.1 RH | ||||
| 58530-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58530-90B3906 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58530-90B3902 |
BB2#,3#,HB3#,RB2#..10S,26S,29S D-WINE,DARK WINE |
1 | ||
| 58530-90B4006 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58520D - MAT ASSY, FRONT FLOOR, FRONT NO.2 | ||||
| 58520-90B00 |
BB2#,3#,HB3#,RB2#..(DLX,STD)..(10S,26S,29S) |
1 | ||
| 58520-90B13 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58520-90B20 |
BB21,31,HB30,RB20..26S,29S W/MECHANICAL *AUD |
1 | ||
| 58520-90B16 |
BB2#,3#,HB30,36,RB2#..10S,26S,29S |
1 | ||
| 58523B - MAT, FRONT FLOOR, CENTER NO.1 LH | ||||
| 58610-90B06 |
BB2#,3#,HB30,RB20..(DLX,STD)..(26S,29S) W/O RR SEAT |
1 | ||
| 58610-90B06 |
BB21,31,HB30,RB20..26S,29S W/O RR SEAT |
1 | ||
| 58610-90B11 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58610-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58610-90B0006 |
BB2#,31,HB3#,RB20..10S,26S,29S SABLE,SABLE |
1 | ||
| 58610-90B1706 |
HB30,31..5F W/*MAD,W/O RR SEAT,SABLE,SABLE |
1 | ||
| 58610-90B1106 |
HB30,31..5F W/MECHANICAL *AUD,SABLE,SABLE |
1 | ||
| 58610-90B11 |
BB21,31,HB30,31,RB20..(DLX,STD)..5F..(26S,29S) W/MECHANICAL *AUD |
1 | ||
| 58610-90B0606 |
BB21,23,26,31,HB30,31,36,RB20..10S,26S,29S W/O RR SEAT,SABLE,SABLE |
1 | ||
| 58524 - FASTENER, FLOOR MAT, MALE | ||||
| 90530-06001 |
BB2#,3#,HB3#,HDB3#,HZB3#,RB2# |
7 | ||
| 58533 - MAT, REAR WHEEL HOUSE, RH | ||||
| 58519-90B00 |
BB20,21,30,31,HB30,31,RB20..DLX |
1 | ||
| 58534 - MAT, REAR WHEEL HOUSE, LH | ||||
| 58519-90B00 |
BB20,21,30,31,HB30,31,RB20..DLX |
1 | ||
| 58540A - MAT ASSY, FRONT FLOOR, REAR NO.1 | ||||
| 58540-90B15 |
BB2#,3#,RB20..DLX..WOC W/*FD(AUTO) |
1 | ||
| 58540-90B17 |
HB30..WOC W/*FD(AUTO) |
1 | ||
| 58540-90B18 |
BB2#,3#,RB20..DLX..WOC W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B04 |
HB30..WOC W/*GLD |
1 | ||
| 58540-90B10 |
HB30..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B20 |
HB30..WOC W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B17 |
HB30,36..DLX,EX W/*FD(AUTO) |
1 | ||
| 58540-90B08 |
BB2#,3#,RB20..(26S,29S)..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B20 |
HB30..26S,29S W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B12 |
HB30..26S,29S W/*GLD,W/O RR SEAT |
1 | ||
| 58540-90B42 |
HB3#..DLX,EX W/*FD(AUTO) |
1 | ||
| 58540-90B4202 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-90B34 |
HB30..SRF W/MECHANICAL *AUD |
1 | ||
| 58540-90B4202 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-90B02 |
HB30,36..WOC W/*FD |
1 | ||
| 58540-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC W/*FD |
1 | ||
| 58540-90B20 |
HB30,36 W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B18 |
BB2#,3#,RB2#..10S,26S,29S W/*FD(AUTO),W/O RR SEAT |
1 | ||
| 58540-90B08 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B10 |
HB30,36 W/*FD,W/O RR SEAT |
1 | ||
| 58540-90B45 |
HB30 W/MECHANICAL *AUD |
1 | ||
| 58540-90B02 |
HB30,36..WOC W/*FD |
1 | ||
| 58540-90B15 |
BB2#,3#,RB2#..DLX W/*FD(AUTO) |
1 | ||
| 58540-90B8902 |
HB3#..DLX W/*FD(AUTO),D-WINE,DARK WINE |
1 | ||
| 58540-9055306 |
HB30,31..5F W/*MAD,W/O RR SEAT SABLE,SABLE |
1 | ||
| 58540-9052606 |
HB30,31..5F W/*MAD,SABLE,SABLE |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58550-90B00 |
BB20,21,30,31,RB20..26S,29S |
1 | ||
| 58526-90B00 |
HB3#..DLX CENTER |
1 | ||
| 58550-90B02 |
HB30..DLX RH |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58550-90B00 |
BB20,21,30,31,RB20..26S,29S |
1 | ||
| 58526-90B00 |
HB3#..DLX CENTER |
1 | ||
| 58550-90B02 |
HB30..DLX RH |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58550-90B00 |
BB20,21,30,31,RB20..26S,29S |
1 | ||
| 58526-90B00 |
HB3#..DLX CENTER |
1 | ||
| 58550-90B02 |
HB30..DLX RH |
1 | ||
| 58550 - MAT ASSY, FRONT FLOOR, REAR NO.2 | ||||
| 58550-90B00 |
BB20,21,30,31,RB20..26S,29S |
1 | ||
| 58526-90B00 |
HB3#..DLX CENTER |
1 | ||
| 58550-90B02 |
HB30..DLX RH |
1 | ||
| 58563 - MAT, REAR FLOOR | ||||
| 58517-90B30 |
HB30..WOC W/FOLDING SEAT |
1 | ||
| 58517-90B07 |
HB30..WOC |
1 | ||
| 58581-90B01 |
BB3#,HB3#..10S,26S,29S |
1 | ||
| 58517-90B55 |
HB30..WOC W/O RR SEAT |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58572 - SET PLATE, REAR FLOOR MAT, REAR | ||||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..(DLX,STD)..(26S,29S) CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,31,HB30,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58619-90B03 |
BB21,31,HB30,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58628-90B00 |
BB20,21,30,31,HB30,31,RB20..26S,29S LH |
1 | ||
| 58619-90B03 |
BB21,HB30,31,RB20..DLX,EX CTR,W/*SOBD |
1 | ||
| 58628-90B03 |
BB21,HB30,31,RB20..DLX,EX LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB21,31,HB30,RB20..(26S,29S)..WOC RH,W/*SOBD |
1 | ||
| 58619-90B02 |
BB20,21,30,31,HB30,31,RB20..26S,29S CTR |
1 | ||
| 58618-90B00 |
BB20,21,30,31,HB30,RB20..(26S,29S)..WOC RH |
1 | ||
| 58628-90B03 |
BB21,31,HB30,31,RB20..26S,29S LH,W/*SOBD |
1 | ||
| 58618-90B04 |
BB26,36,HB30,RB20..WOC RH |
1 | ||
| 58619-90B03 |
BB21,31,HB30,31,RB20..26S,29S CTR,W/*SOBD |
1 | ||
| 58581 - PLATE, WHEEL HOUSE MAT SET, RH | ||||
| 58617-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58582 - PLATE, WHEEL HOUSE MAT SET, LH | ||||
| 58617-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58583 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, FRONT | ||||
| 58675-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58583 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, FRONT | ||||
| 58675-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58584 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, REAR | ||||
| 58676-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58584 - PLATE, REAR FLOOR MAT SET DOOR PILLAR, REAR | ||||
| 58676-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58611A - PLATE, MAT SET, NO.1 RH | ||||
| 58611-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
1 | ||
| 58612A - PLATE, MAT SET, NO.2 RH | ||||
| 58612-90B0106 |
HB3#..DLX,EX SABLE,SABLE |
1 | ||
| 58612-90B01 |
HB3#..DLX,EX |
1 | ||
| 58612-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
2 | ||
| 58613A - PLATE, MAT SET, NO.3 | ||||
| 58616-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
BB2#,3#,RB2# LH |
1 | ||
| 58623-90B00 |
BB2#,3#,RB2# RH |
1 | ||
| 58613-90B02 |
HB30 |
1 | ||
| 58613-90B01 |
HB3#..DLX,EX CTR |
1 | ||
| 58623-90B00 |
HB3#..DLX,EX RH & LH |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58623-90B00 |
BB2#,3#,RB2# RH |
1 | ||
| 58613-90B00 |
BB2#,3#,RB2# LH |
1 | ||
| 58613-90B02 |
HB30 |
1 | ||
| 58613-90B01 |
HB3#..DLX,EX CTR |
1 | ||
| 58623-90B00 |
HB3#..DLX,EX RH & LH |
2 | ||
| 58614A - PLATE, MAT SET, NO.4 | ||||
| 58613-90B00 |
BB2#,3#,RB2# LH |
1 | ||
| 58613-90B02 |
HB30 |
1 | ||
| 58623-90B00 |
BB2#,3#,RB2# RH |
1 | ||
| 58613-90B01 |
HB3#..DLX,EX CTR |
1 | ||
| 58623-90B00 |
HB3#..DLX,EX RH & LH |
2 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58615A - PLATE, MAT SET, NO.5 | ||||
| 58614-90B04 |
HB30..WOC LH,W/GLIDE DOOR |
1 | ||
| 58614-90B02 |
HB30,36..WOC LH |
1 | ||
| 58614-90B00 |
BB2#,3#,RB2#..(10S,26S,29S)..WOC LH |
1 | ||
| 58624-90B00 |
BB2#,3#,RB2#..10S,26S,29S RH |
1 | ||
| 58624-90B01 |
HB3#..DLX,EX RH |
1 | ||
| 58616B - PLATE, MAT SET, NO.6 | ||||
| 58615-90B00 |
BB2#,3#,RB2#..10S,26S,29S |
1 | ||
| 58615-90B02 |
HB3#..DLX,EX |
1 | ||
| 58620A - MAT ASSY, FRONT FLOOR, CENTER NO.2 | ||||
| 58620-90B06 |
HB30..DLX W/O RR SEAT |
1 | ||
| 58620-90B05 |
BB2#,3#,RB2#..10S,26S,29S |
1 | ||
| 58620-90B02 |
HB30,36..DLX |
1 | ||
| 58620-90B2002 |
HB30,36 W/O RR SEAT,DARK WINE,DARK WINE |
1 | ||
| 58621A - PLATE, MAT SET, NO.1 LH | ||||
| 58621-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S |
1 | ||
| 58622A - PLATE, MAT SET, NO.2 LH | ||||
| 58622-90B01 |
HB3#..DLX,EX |
1 | ||
| 58622-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58622-90B0106 |
HB30,31,36..DLX,EX SABLE,SABLE |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58625B - PLATE, REAR WHEEL HOUSE MAT, FRONT | ||||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58626B - PLATE, REAR WHEEL HOUSE MAT, REAR | ||||
| 58626-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S RH |
1 | ||
| 58625-90B00 |
BB2#,3#,HB3#,RB2#..10S,26S,29S LH |
1 | ||
| 58631A - PLATE, ENGINE SERVICE HOLE MAT, FRONT | ||||
| 58631-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58632A - PLATE, ENGINE SERVICE HOLE MAT, REAR | ||||
| 58632-90B01 |
HB3# |
1 | ||
| 58632-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58634A - PLATE, ENGINE SERVICE HOLE MAT, RH | ||||
| 58634-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58644A - PLATE, ENGINE SERVICE HOLE MAT, LH | ||||
| 58644-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58651A - PLATE, FRONT DOOR MAT, NO.1 | ||||
| 58651-90B00 |
BB2#,3#,HB3#,RB2# |
1 | ||
| 58652A - PLATE, FRONT DOOR MAT, NO.2 | ||||
| 58652-90B0006 |
BB2#,31,HB3#,RB20..DLX,EX,STD RH,SABLE,SABLE |
1 | ||
| 58652-90B00 |
BB2#,3#,HB3#,RB2#..DLX,EX,STD RH |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58672A - PLATE, CENTER DOOR STEP MAT, REAR | ||||
| 58672-90B02 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| 58673A - PLATE, CENTER DOOR STEP MAT SIDE | ||||
| 58673-90B00 |
BB20,30,HB30,RB20..DLX,EX,STD |
1 | ||
| 58673-90B02 |
BB2#,3#,HB30,RB20 |
1 | ||
| 58687A - PLATE, MAT SET, NO.7 | ||||
| 58687-90B00 |
HB3#..DLX,EX |
1 | ||
| 58695A - PLATE, REAR FLOOR MAT VERTICAL, NO.1 | ||||
| 58695-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58695-90B00 |
BB20,30,HB30,RB20..DLX,STD |
1 | ||
| 58695-90B0506 |
HB30,31,36..DLX SABLE,SABLE |
1 | ||
| 58695-90B05 |
HB3#..DLX |
1 | ||
| 58695A - PLATE, REAR FLOOR MAT VERTICAL, NO.1 | ||||
| 58695-90B00 |
BB2#,3#,RB2# |
1 | ||
| 58695-90B00 |
BB20,30,HB30,RB20..DLX,STD |
1 | ||
| 58695-90B0506 |
HB30,31,36..DLX SABLE,SABLE |
1 | ||
| 58695-90B05 |
HB3#..DLX |
1 | ||
| 58696A - PLATE, REAR FLOOR MAT VERTICAL, NO.2 | ||||
| 58696-90B00 |
HB3#..DLX,EX |
1 | ||
| 58696A - PLATE, REAR FLOOR MAT VERTICAL, NO.2 | ||||
| 58696-90B00 |
HB3#..DLX,EX |
1 | ||
| 58698A - PLATE, CENTER DOOR STEP MAT, SIDE OUTER | ||||
| 58698-90B01 |
BB21,31,HB30,RB20..(26S,29S)..WOC W/GLIDE DOOR |
1 | ||
| Common parts | ||||
| 90189-04013 | ||||
| 90189-04035 | ||||
| 90339-03003 | ||||
| 90560-15013 | ||||
| 93219-54016 | ||||
| 93510-54008 | ||||
| 93530-14016 | ||||
| 93530-54016 | ||||
| 93560-24014 | ||||
| 93630-53514 | ||||
| 93630-53516 | ||||
| 93630-53520 | ||||
| 93630-54025 | ||||
| 94115-40400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
