HB30-MD (1982)

Toyota Coaster

Production May 1982 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )BB2#,3#,RB2#

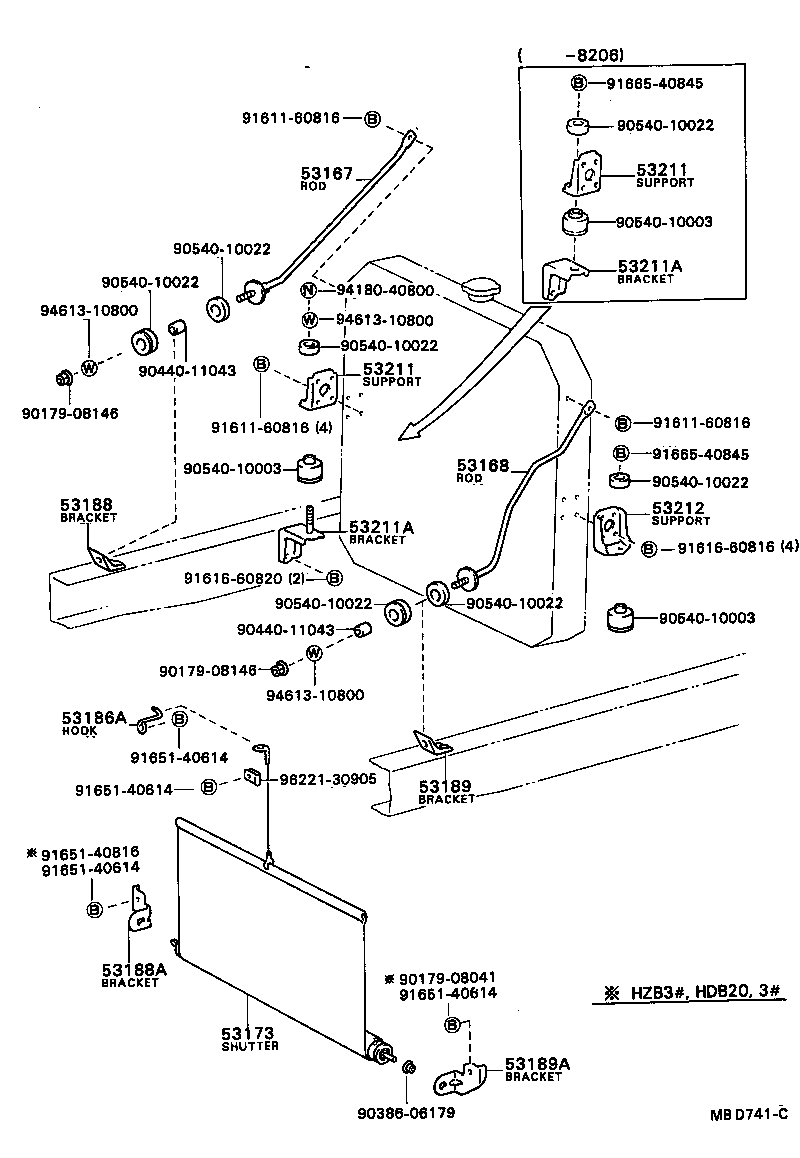

Click highlighted areas on diagram

diagram 53167 53168 53173 53186A 53188 53188A 53189 53189A 53211 53211 53211A 53211A 53212 53212 53212A 53212A 9017908146 9017908146 9038606179 9044011043 9044011043 9054010003 9054010003 9054010003 9054010022 9054010022 9054010022 9054010022 9054010022 9054010022 9054010022 9161160816 9161160816 9161160816 9161160816 9161660820 9161660820 9165140614 9165140614 9165140614 9165140614 9166540845 9418040800 9418040800 9461310800 9461310800 9461310800 9461310800 9622130905
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53167-36080

HB3#,HDB20,3#,HZB3#

 1
53167-36060

BB2#,3#,RB2#

 1
53168 - ROD, RADIATOR BRACE, LH
53169-36070

HB3#,HDB20,3#,HZB3#

 1
53169-36050

BB2#,3#,RB2#

 1
53173 - SHUTTER SUB-ASSY, RADIATOR WIND
53180-90B00

BB2#,3#

 1
53180-90B02

HB3#

 1
53180-90B01

BB26,3#,RB2#

 1
53186A - HOOK, RADIATOR SHUTTER
53186-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 3
53188 - BRACKET, RADIATOR BRACE ROD, RH
53168-26010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53189 - BRACKET, RADIATOR BRACE ROD, LH
53168-26010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53211 - SUPPORT, RADIATOR, RH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53211 - SUPPORT, RADIATOR, RH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53212 - SUPPORT, RADIATOR, LH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53212 - SUPPORT, RADIATOR, LH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53212A - BRACKET, RADIATOR SUPPORT, LH
51412-36070

BB2#,3#,RB2#

 1
53212A - BRACKET, RADIATOR SUPPORT, LH
51412-36070

BB2#,3#,RB2#

 1
Common parts
90179-08146
90386-06179
90440-11043
90540-10003
90540-10022
91611-60816
91616-60820
91651-40614
91665-40845
94180-40800
94613-10800
96221-30905

(8205- )HB3#,HDB20,3#,HZB3#

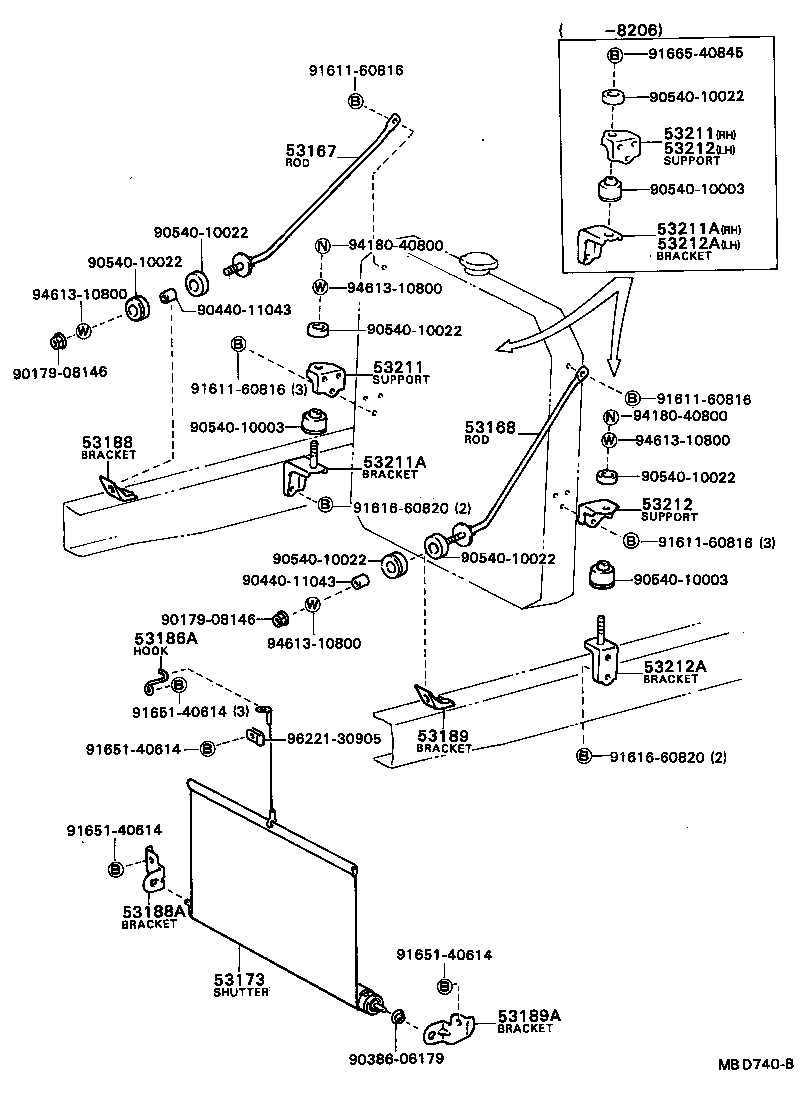

Click highlighted areas on diagram

diagram 53167 53168 53173 53186A 53188 53188A 53189 53189A 53211 53211 53211A 53211A 53212 9017908041 9017908146 9017908146 9038606179 9044011043 9044011043 9054010003 9054010003 9054010003 9054010022 9054010022 9054010022 9054010022 9054010022 9054010022 9054010022 9161160816 9161160816 9161160816 9161660816 9161660820 9165140614 9165140614 9165140614 9165140614 9165140816 9166540845 9166540845 9418040800 9461310800 9461310800 9461310800 9622130905
Part # Description Qty Price
53167 - ROD, RADIATOR BRACE, RH
53167-36080

HB3#,HDB20,3#,HZB3#

 1
53167-36060

BB2#,3#,RB2#

 1
53168 - ROD, RADIATOR BRACE, LH
53169-36070

HB3#,HDB20,3#,HZB3#

 1
53169-36050

BB2#,3#,RB2#

 1
53173 - SHUTTER SUB-ASSY, RADIATOR WIND
53180-90B00

BB2#,3#

 1
53180-90B02

HB3#

 1
53180-90B01

BB26,3#,RB2#

 1
53186A - HOOK, RADIATOR SHUTTER
53186-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 3
53188 - BRACKET, RADIATOR BRACE ROD, RH
53168-26010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53188A - BRACKET, RADIATOR SHUTTER SUPPORT, RH
53188-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53189 - BRACKET, RADIATOR BRACE ROD, LH
53168-26010

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53189A - BRACKET, RADIATOR SHUTTER SUPPORT, LH
53189-90B00

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53211 - SUPPORT, RADIATOR, RH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53211 - SUPPORT, RADIATOR, RH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53211A - BRACKET, RADIATOR SUPPORT, RH
51411-36070

BB2#,3#,HB3#,HDB20,3#,HZB3#,RB2#

 1
53212 - SUPPORT, RADIATOR, LH
53211-36040

BB2#,3#,RB2#

 1
53211-36050

HB3#,HDB20,3#,HZB3#

 1
Common parts
90179-08041
90179-08146
90386-06179
90440-11043
90540-10003
90540-10022
91611-60816
91616-60816
91616-60820
91651-40614
91651-40816
91665-40845
94180-40800
94613-10800
96221-30905
