HB30-MD (1982)

Toyota Coaster

Production May 1982 - Jan 1990
Engine 2H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8808)12HT,3B ; (8205-9001)2H..WOC ; (8808-9001)12HT

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040114033 9040214006 9043010035 9043010035 9043010035 9043010035 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-68010

2H..HB30,36..WOC

ALTERNATOR=24V 25A

 1
29300-54050

2H..HB30,36..WOC

ALTERNATOR=24V 25A

 1
29300-68020

2H..HB30,36

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02070

2H..HB3#..WOC

 1
90923-02075

2H..HB30,36..WOC

COLD SPEC

 1
90923-02100

2H..HB30,36..WOC

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02079

2H..HB30,36..WOC

 1
90923-02074

2H..HB30,36..WOC

COLD SPEC

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

12HT,2H..HB3#

 1
90099-08082

12HT,3B,2H..BB2#,3#,HB3#

 1
29311-76010

12HT,3B,2H..BB2#,3#,HB3#

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

12HT,2H..HB3#

 4
29331-56070

12HT,3B,2H..BB2#,3#,HB3#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

12HT,3B,2H..BB2#,3#,HB3#

 1
96740-02063

12HT,2H..HB3#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

12HT,2H..HB3#

 1
29369-56070

12HT,3B,2H..BB2#,3#,HB3#

 1
Common parts
29364-66010
90099-04577
90201-14099
90401-09001
90401-10006
90401-14033
90402-14006
90430-10035
96112-10180

(8205-9001)2H

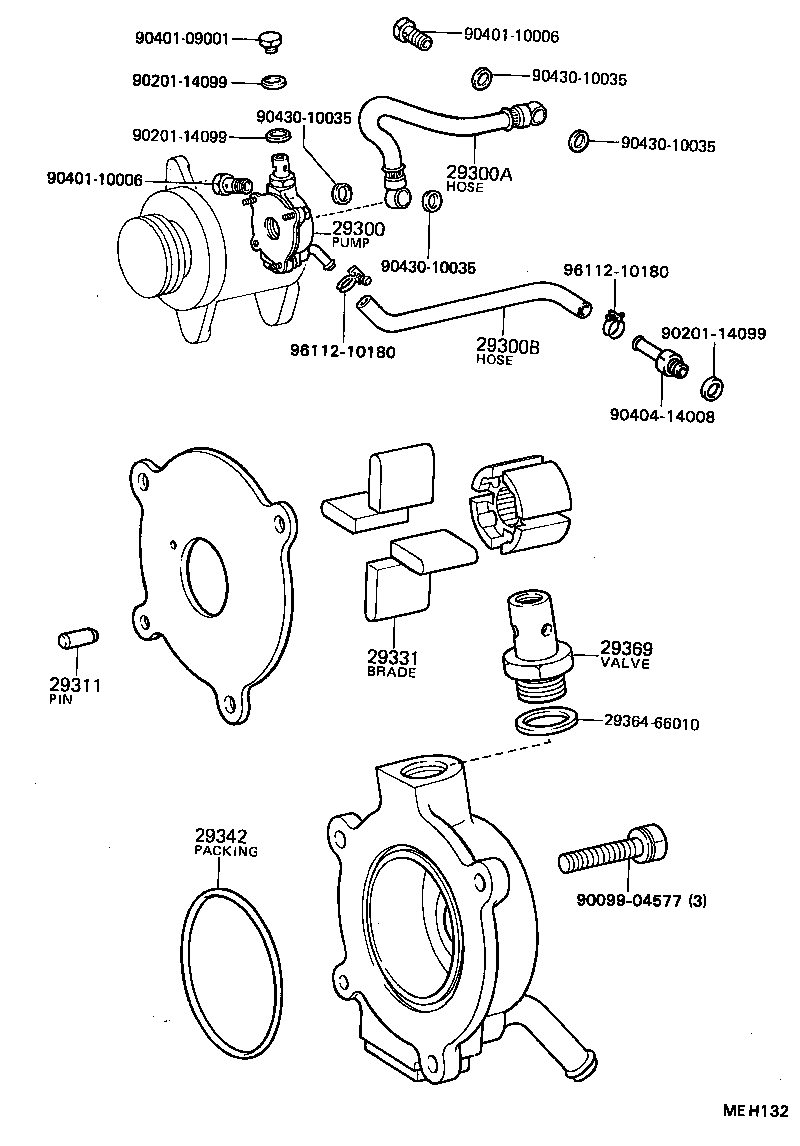

Click highlighted areas on diagram

diagram 29300 29300A 29300B 29311 29331 29342 2936466010 29369 9009904577 9020114099 9020114099 9020114099 9040109001 9040110006 9040110006 9040414008 9043010035 9043010035 9043010035 9043010035 9611210180 9611210180
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-68010

2H..HB30,36..WOC

ALTERNATOR=24V 25A

 1
29300-54050

2H..HB30,36..WOC

ALTERNATOR=24V 25A

 1
29300-68020

2H..HB30,36

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02070

2H..HB3#..WOC

 1
90923-02075

2H..HB30,36..WOC

COLD SPEC

 1
90923-02100

2H..HB30,36..WOC

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02079

2H..HB30,36..WOC

 1
90923-02074

2H..HB30,36..WOC

COLD SPEC

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

12HT,2H..HB3#

 1
90099-08082

12HT,3B,2H..BB2#,3#,HB3#

 1
29311-76010

12HT,3B,2H..BB2#,3#,HB3#

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

12HT,2H..HB3#

 4
29331-56070

12HT,3B,2H..BB2#,3#,HB3#

 4
29342 - PACKING, VACUUM PUMP
96740-02063

12HT,3B,2H..BB2#,3#,HB3#

 1
96740-02063

12HT,2H..HB3#

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

12HT,2H..HB3#

 1
29369-56070

12HT,3B,2H..BB2#,3#,HB3#

 1
Common parts
29364-66010
90099-04577
90201-14099
90401-09001
90401-10006
90404-14008
90430-10035
96112-10180
